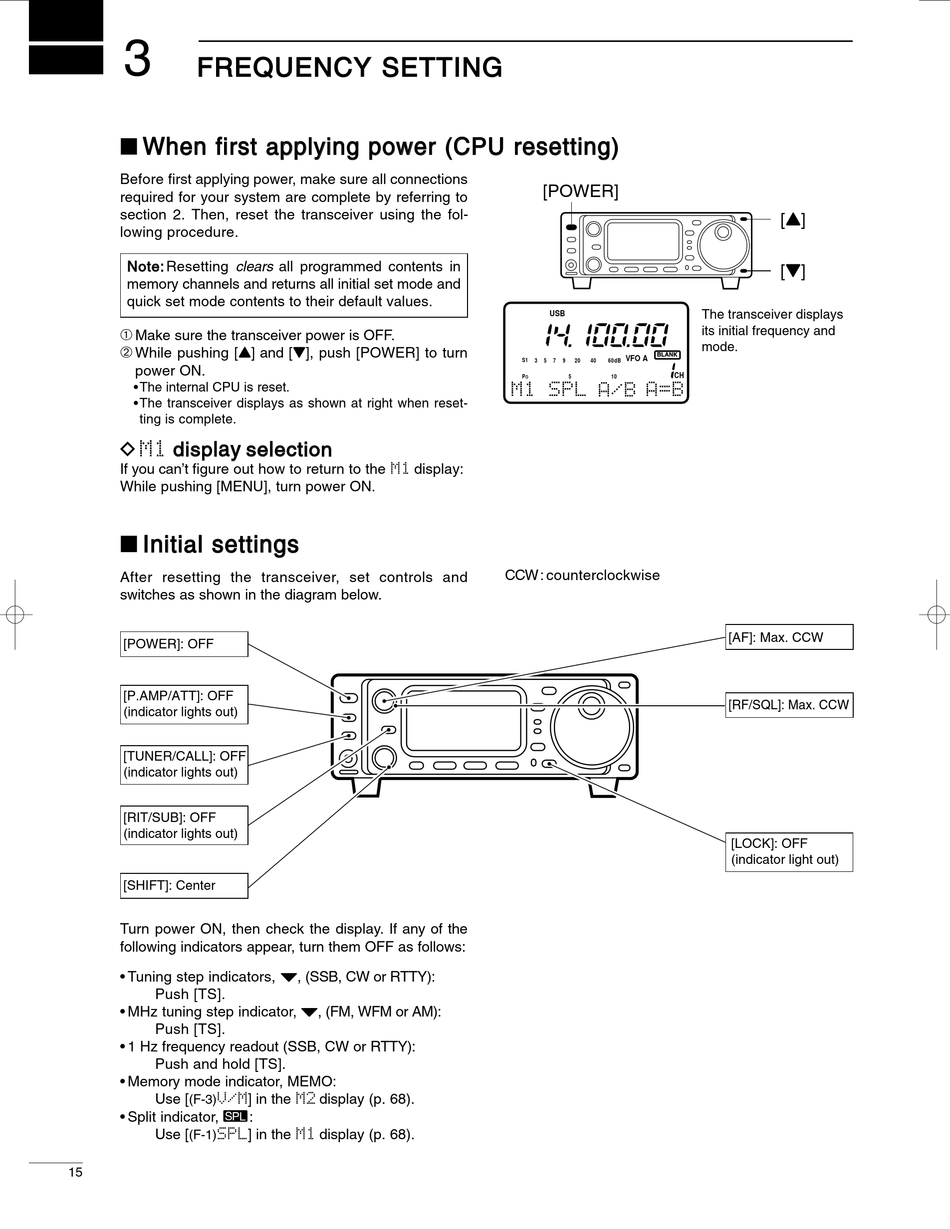

Frequency Settings; When First Applying Power (Cpu Resetting); Initial Settings - Icom IC-706MKIIG Instruction Manual

3
I
Before first applying power, make sure all connections
required for your system are complete by referring to
section 2. Then, reset the transceiver using the fol-
lowing procedure.
Resetting clears all programmed contents in
memory channels and returns all initial set mode and
quick set mode contents to their default values.
➀
Make sure the transceiver power is OFF.
➁
While pushing [Y] and [Z], push [POWER] to turn
power ON.
• The internal CPU is reset.
•The transceiver displays as shown at right when reset-
ting is complete.
D
If you can't figure out how to return to the
While pushing [MENU], turn power ON.
I
After resetting the transceiver, set controls and
switches as shown in the diagram below.
[POWER]: OFF
[P.AMP/ATT]: OFF
(indicator lights out)
[TUNER/CALL]: OFF
(indicator lights out)
[RIT/SUB]: OFF
(indicator lights out)
[SHIFT]: Center
Turn power ON, then check the display. If any of the
following indicators appear, turn them OFF as follows:
• Tuning step indicators,
Push [TS].
• MHz tuning step indicator,
Push [TS].
• 1 Hz frequency readout (SSB, CW or RTTY):
Push and hold [TS].
• Memory mode indicator, MEMO:
Use [
(F-3)
• Split indicator, ä:
Use [
(F-1)
15
, (SSB, CW or RTTY):
Z
, (FM, WFM or AM):
Z
] in the display (p. 68).
] in the display (p. 68).
[POWER]
USB
S1 3 5 7 9 20
P 5
O
display:
CCW: counterclockwise
The transceiver displays
its initial frequency and
mode.
BLANK
VFO A
40 60dB
CH
10
[AF]: Max. CCW
[RF/SQL]: Max. CCW
[LOCK]: OFF
(indicator light out)
[Y]
[Z]
