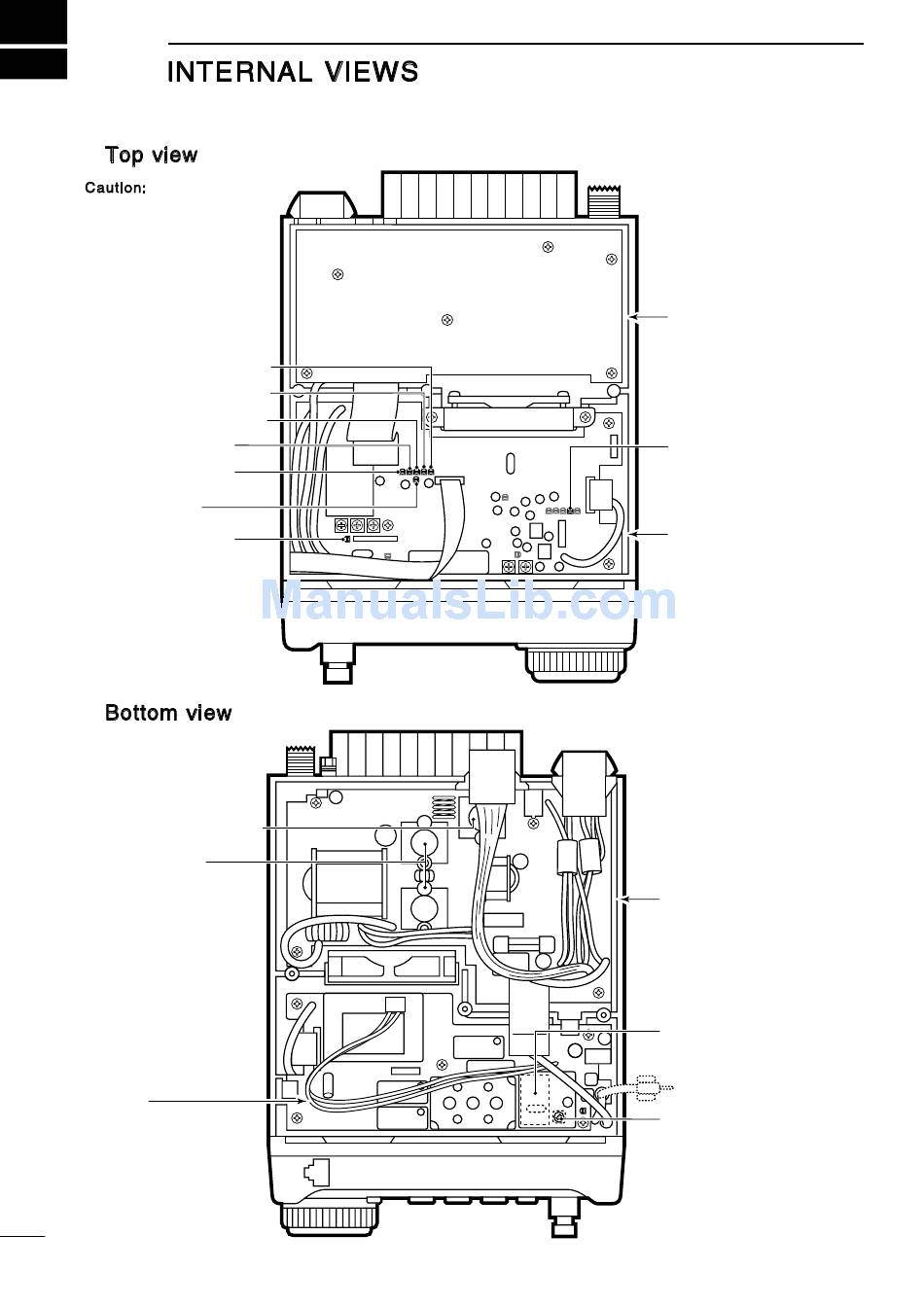

Internal Views; Top View; Bottom View - Icom IC-706MKIIG Instruction Manual

11
D
The transceiver has been
thoroughly tested and
adjusted at the factory
before being shipped.
The transceiver warranty
does not cover any prob-
lems caused by unautho-
rized internal adjustment.
430 MHz Tx power adj.
144 MHz Tx power adj.
50 MHz Tx power adj.
HF Tx power adj.
AM Tx carrier adj.
ID APC adj.
NB sencitivity adj.
D
144/430 MHz Final amplifier
(SRFJ7044)
HF Final amplifier
(SRFJ7044 x 2)
PLL unit
63
The internal speaker has
been removed in this
diagram for illustration
purposes.
FILTER unit
FM deviation adj.
MAIN unit
PA unit
Optional crystal (CR-282)
Reference freq. check point
(60.000 MHz)
Reference freq. adj. (L601)
(when optional crystal
is installed)
