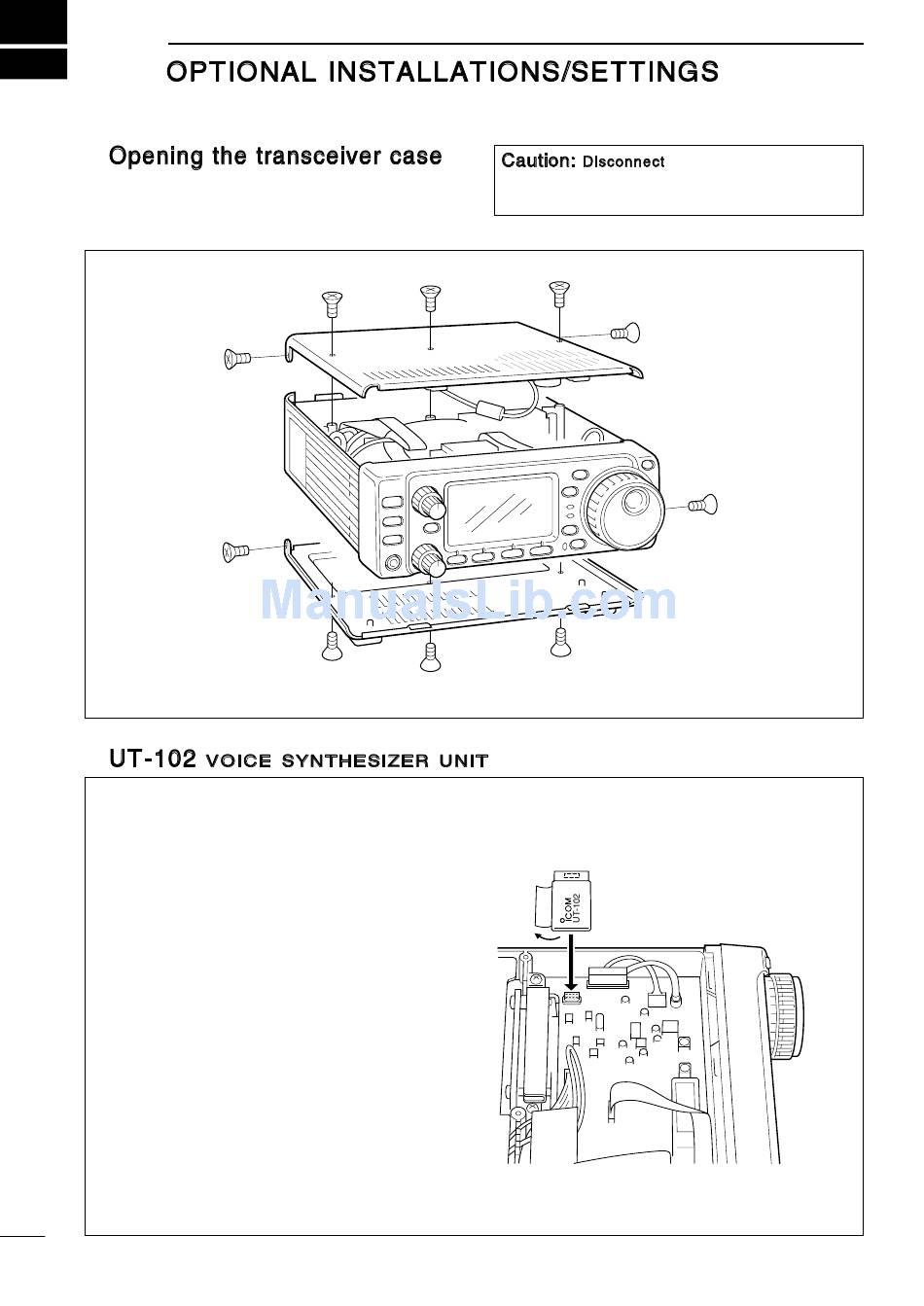

To remove the transceiver case unscrew the 10

screws (5 in the top panel and 5 in the bottom panel)

as shown in the diagram below.

The UT-102 announces the accessed band's fre-

quency, mode, etc. (S-meter level can also be

announced—p. 55) in a clear, electronically generat-

ed voice, in English (or Japanese).

➀

Remove the top cover as shown above.

➁

Connect the UT-102 as shown in the diagram at

right (label side up).

➂

Replace the top cover.

the DC power cable from

the transceiver before performing any work on the

transceiver.
