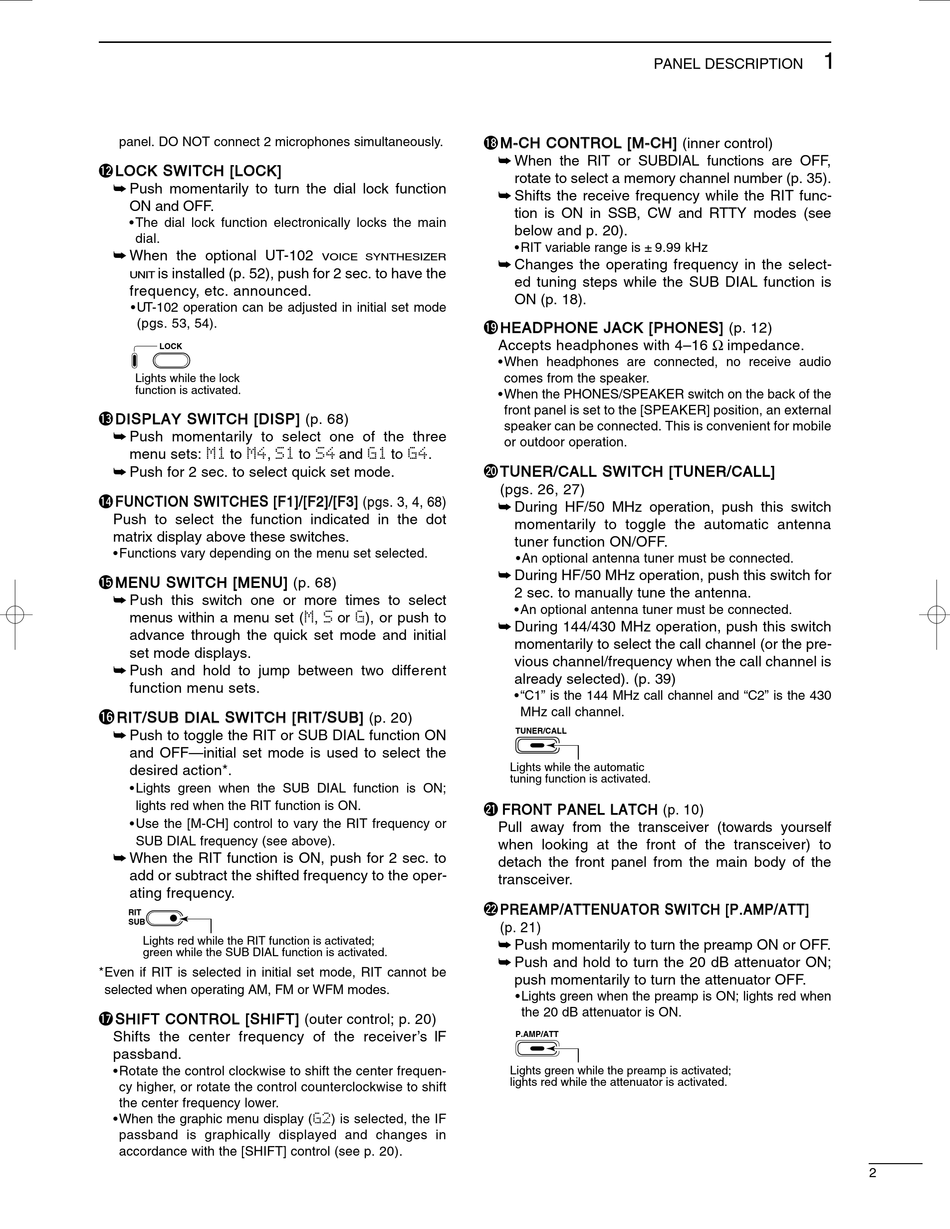

Icom IC-706MKIIG Instruction Manual page 5

panel. DO NOT connect 2 microphones simultaneously.
!2
➥ Push momentarily to turn the dial lock function
ON and OFF.
• The dial lock function electronically locks the main
dial.
➥ When the optional UT-102
is installed (p. 52), push for 2 sec. to have the
UNIT
frequency, etc. announced.
• UT-102 operation can be adjusted in initial set mode
(pgs. 53, 54).
LOCK
Lights while the lock
function is activated.
!3
➥ Push momentarily to select one of the three
menu sets: to
➥ Push for 2 sec. to select quick set mode.
!4
Push to select the function indicated in the dot
matrix display above these switches.
• Functions vary depending on the menu set selected.
!5
➥ Push this switch one or more times to select
menus within a menu set ( ,
advance through the quick set mode and initial
set mode displays.
➥ Push and hold to jump between two different
function menu sets.
!6
➥ Push to toggle the RIT or SUB DIAL function ON
and OFF—initial set mode is used to select the
desired action*.
• Lights green when the SUB DIAL function is ON;
lights red when the RIT function is ON.
• Use the [M-CH] control to vary the RIT frequency or
SUB DIAL frequency (see above).
➥ When the RIT function is ON, push for 2 sec. to
add or subtract the shifted frequency to the oper-
ating frequency.
RIT
SUB
Lights red while the RIT function is activated;
green while the SUB DIAL function is activated.
*Even if RIT is selected in initial set mode, RIT cannot be
selected when operating AM, FM or WFM modes.
!7
Shifts the center frequency of the receiver's IF
passband.
• Rotate the control clockwise to shift the center frequen-
cy higher, or rotate the control counterclockwise to shift
the center frequency lower.
• When the graphic menu display (
passband is graphically displayed and changes in
accordance with the [SHIFT] control (see p. 20).
VOICE SYNTHESIZER
(p. 68)
, to and to .
(pgs. 3, 4, 68)
(p. 68)
or ), or push to
(p. 20)
(outer control; p. 20)
) is selected, the IF
!8
➥ When the RIT or SUBDIAL functions are OFF,
rotate to select a memory channel number (p. 35).
➥ Shifts the receive frequency while the RIT func-
tion is ON in SSB, CW and RTTY modes (see
below and p. 20).
• RIT variable range is ± 9.99 kHz
➥ Changes the operating frequency in the select-
ed tuning steps while the SUB DIAL function is
ON (p. 18).
!9
Accepts headphones with 4–16 Ω impedance.
• When headphones are connected, no receive audio
comes from the speaker.
• When the PHONES/SPEAKER switch on the back of the
front panel is set to the [SPEAKER] position, an external
speaker can be connected. This is convenient for mobile
or outdoor operation.
@0
(pgs. 26, 27)
➥ During HF/50 MHz operation, push this switch
momentarily to toggle the automatic antenna
tuner function ON/OFF.
• An optional antenna tuner must be connected.
➥ During HF/50 MHz operation, push this switch for
2 sec. to manually tune the antenna.
• An optional antenna tuner must be connected.
➥ During 144/430 MHz operation, push this switch
momentarily to select the call channel (or the pre-
vious channel/frequency when the call channel is
already selected). (p. 39)
• "C1" is the 144 MHz call channel and "C2" is the 430
MHz call channel.
TUNER/CALL
Lights while the automatic
tuning function is activated.
@1
Pull away from the transceiver (towards yourself
when looking at the front of the transceiver) to
detach the front panel from the main body of the
transceiver.
@2
(p. 21)
➥ Push momentarily to turn the preamp ON or OFF.
➥ Push and hold to turn the 20 dB attenuator ON;
push momentarily to turn the attenuator OFF.
•Lights green when the preamp is ON; lights red when
the 20 dB attenuator is ON.
P.AMP/ATT
Lights green while the preamp is activated;
lights red while the attenuator is activated.
PANEL DESCRIPTION
(inner control)
(p. 12)
(p. 10)
1
2
