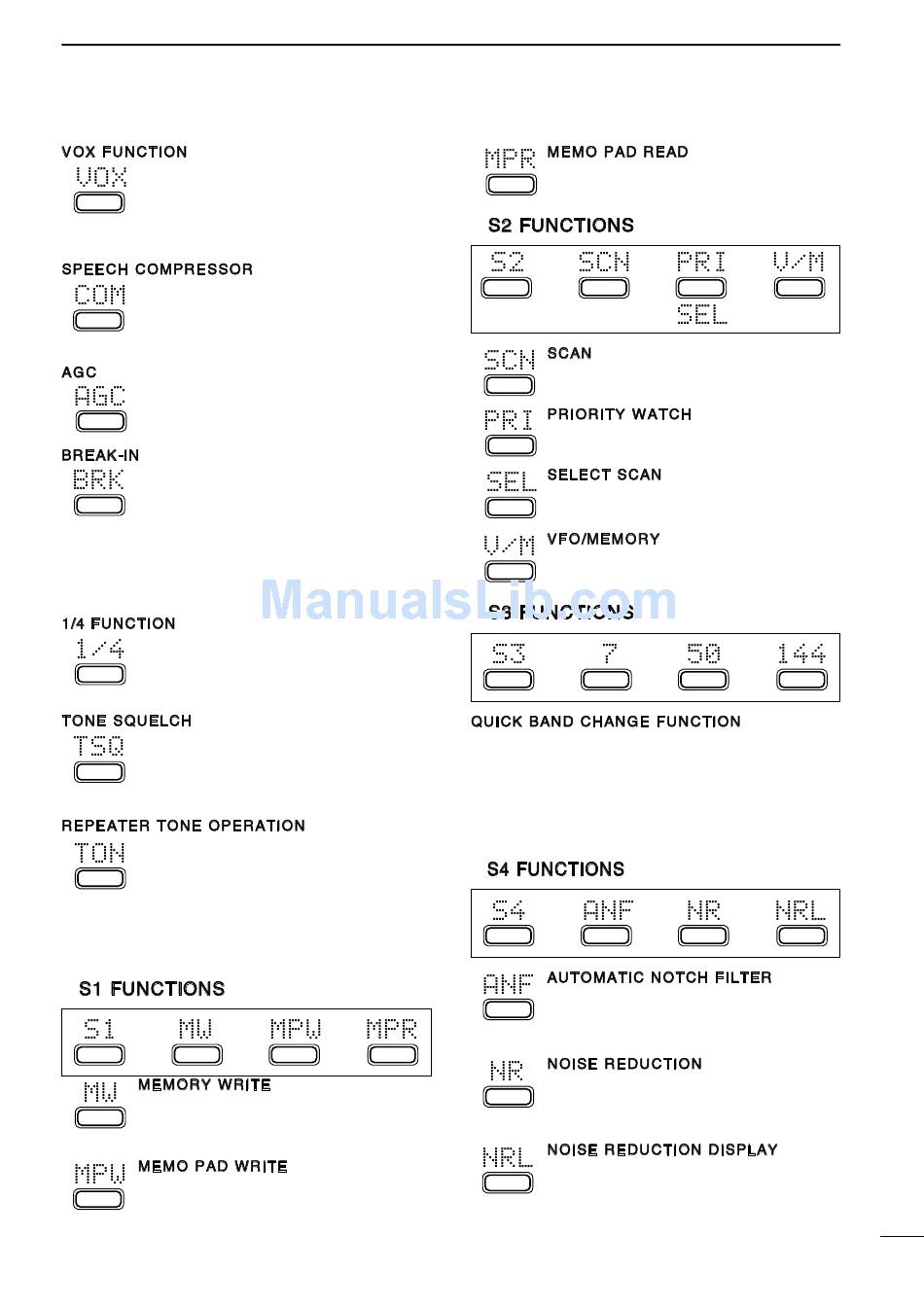

Icom IC-706MKIIG Instruction Manual page 7

(p. 26)
Toggles the VOX function ON and OFF.
• The [VOX GAIN] and [ANTI VOX] are available
F-1
on the side panel.
• VOX delay can be set in quick set mode
(p. 48).
Toggles the speech compressor ON and
OFF.
F-2
• The [COMP GAIN] control is available on the
side panel.
(p. 21)
Changes the time constant of the AGC cir-
cuit.
F-3
(p. 33)
Selects semi break-in, full break-in (QSK)
and break-in OFF
F-2
• "BK" or "F-BK" appears when selecting semi
break-in or full break-in, respectively.
• An external switch, such as a foot switch, is
necessary to connect to the ACC socket (pin
3, pin 7 or RTTY SEND—see p. 35) to use no
break-in operation.
(p. 36)
Toggles the 1/4 function ON and OFF.
1
• When the ⁄ function is ON, a bar appears
4
F-1
1
under the ⁄ indication and fine tuning can be
4
used.
(p. 31)
Toggles the tone squelch function ON and
OFF (a tone squelch frequency must be
F-2
selected in Quick Set mode).
• "FM-TSQL" appears when the function is ON.
➥ Toggles the subaudible tone encoder
for repeater use ON and OFF.
F-3
•"FM-T" appears when the function is ON.
➥ Transmits a 1750 Hz tone burst when
pushed and held during transmission.
• Tone frequencies or tone burst can be set in
initial set mode (p. 49).
D
MENU F-1
Stores the displayed frequency and oper-
F-1 ating mode into the displayed memory
channel.
Stores the displayed frequency and oper-
F-2 ating mode into a memo pad.
(p. 26)
(p. 30)
F-2 F-3
(p. 40)
(p. 42)
Calls up a memo pad.
F-3
D
MENU F-1
(p. 44)
Starts and stops the scan function.
F-1
Starts and stops priority watch.
F-2
Toggles the select setting ON and OFF for
F-2 the selected memory channel.
Toggles between VFO and memory
F-3
modes.
D
MENU F-1
This item provides access to the band stacking regis-
ter. By default the 7, 50 and 144 MHz bands are dis-
played. Push [F-1] to [F-3] for 2 sec. to select a new
band if desired.
• A mode is memorized along with the frequency for each
band.
D
(may be optional for some ver.)
MENU F-1
This function automatically attenuates beat
F-1
tones, tuning signals, etc., even if they are
moving.
This function reduces noise components
F-2
and picks out desired signals which are
buried in the noise.
This displays the noise reduction level
F-3
when using the noise reduction function.
PANEL DESCRIPTION
(p. 42)
F-2 F-3
(in memory mode)
(p. 44)
(p. 44)
(p. 44)
F-2 F-3
(p. 19)
F-2 F-3
(p. 24)
(p. 24)
(p. 24)
1
4
