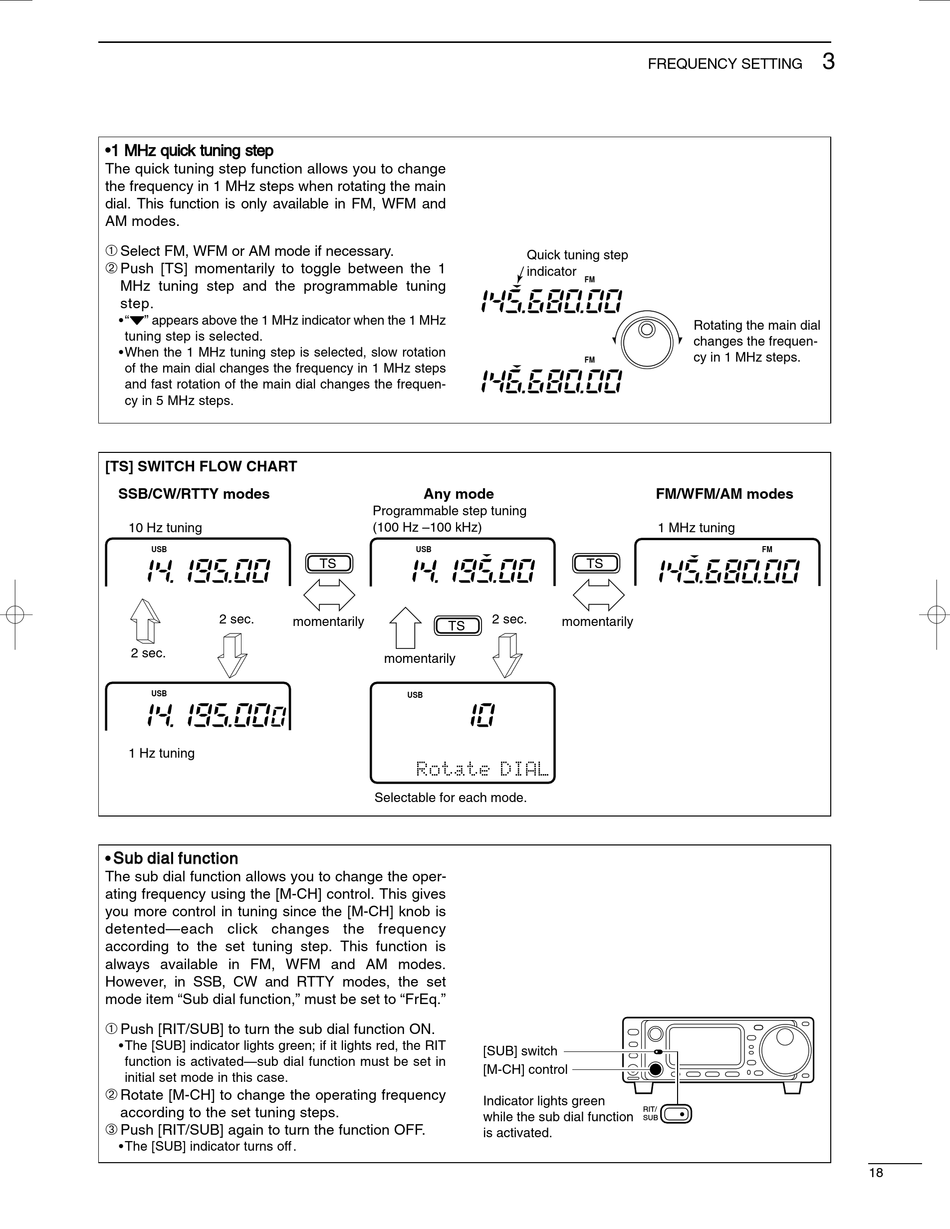

The quick tuning step function allows you to change
the frequency in 1 MHz steps when rotating the main
dial. This function is only available in FM, WFM and
AM modes.
➀
Select FM, WFM or AM mode if necessary.
➁
Push [TS] momentarily to toggle between the 1
MHz tuning step and the programmable tuning
step.
•" Z " appears above the 1 MHz indicator when the 1 MHz
tuning step is selected.
• When the 1 MHz tuning step is selected, slow rotation
of the main dial changes the frequency in 1 MHz steps
and fast rotation of the main dial changes the frequen-
cy in 5 MHz steps.
[TS] SWITCH FLOW CHART
SSB/CW/RTTY modes
10 Hz tuning
USB
2 sec.
2 sec.
USB
1 Hz tuning
•
The sub dial function allows you to change the oper-
ating frequency using the [M-CH] control. This gives
you more control in tuning since the [M-CH] knob is
detented—each click changes the frequency
according to the set tuning step. This function is
always available in FM, WFM and AM modes.
However, in SSB, CW and RTTY modes, the set
mode item "Sub dial function," must be set to "FrEq."
➀
Push [RIT/SUB] to turn the sub dial function ON.
•The [SUB] indicator lights green; if it lights red, the RIT
function is activated—sub dial function must be set in
initial set mode in this case.
➁
Rotate [M-CH] to change the operating frequency
according to the set tuning steps.
➂
Push [RIT/SUB] again to turn the function OFF.
• The [SUB] indicator turns off .
Any mode
Programmable step tuning
(100 Hz –100 kHz)
USB
TS
momentarily
TS
momentarily
USB
Selectable for each mode.
Quick tuning step
indicator
FM
FM
TS
2 sec.
momentarily
[SUB] switch
[M-CH] control
Indicator lights green
RIT/
while the sub dial function
SUB
is activated.
FREQUENCY SETTING
Rotating the main dial
changes the frequen-
cy in 1 MHz steps.
FM/WFM/AM modes
1 MHz tuning
FM
