I

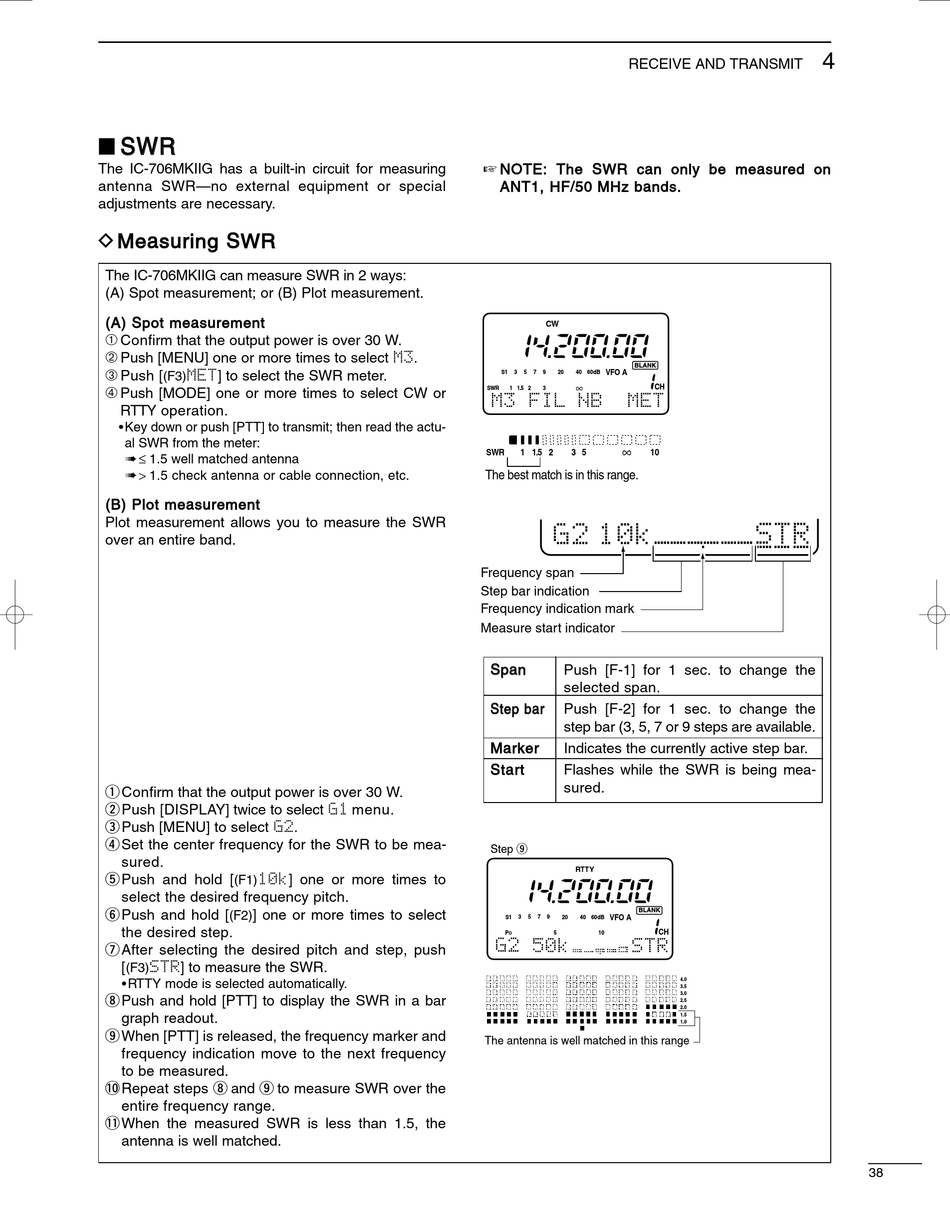

The IC-706MKIIG has a built-in circuit for measuring
antenna SWR—no external equipment or special
adjustments are necessary.
D
The IC-706MKIIG can measure SWR in 2 ways:
(A) Spot measurement; or (B) Plot measurement.
➀
Confirm that the output power is over 30 W.
➁
Push [MENU] one or more times to select
➂
Push [ ] to select the SWR meter.
(F3)
➃
Push [MODE] one or more times to select CW or
RTTY operation.
•Key down or push [PTT] to transmit; then read the actu-
al SWR from the meter:
➠ ≤ 1.5 well matched antenna
➠ > 1.5 check antenna or cable connection, etc.
Plot measurement allows you to measure the SWR
over an entire band.
q Confirm that the output power is over 30 W.
w Push [DISPLAY] twice to select
e Push [MENU] to select
r Set the center frequency for the SWR to be mea-
sured.
t Push and hold [
(F1)
select the desired frequency pitch.
y Push and hold [
] one or more times to select
(F2)
the desired step.
u After selecting the desired pitch and step, push
[ ] to measure the SWR.
(F3)
• RTTY mode is selected automatically.
i Push and hold [PTT] to display the SWR in a bar
graph readout.
o When [PTT] is released, the frequency marker and
frequency indication move to the next frequency
to be measured.
!0 Repeat steps i and o to measure SWR over the
entire frequency range.
!1 When the measured SWR is less than 1.5, the
antenna is well matched.
.
menu.
.
] one or more times to
RECEIVE AND TRANSMIT
CW
BLANK
S1 3 5 7 9 20 40 60dB VFO A
∞

SWR

1 1.5 2 3
∞
SWR 1 1.5 2 3 5
The best match is in this range.
Frequency span
Step bar indication
Frequency indication mark
Measure start indicator
Push [F-1] for 1 sec. to change the
selected span.
Push [F-2] for 1 sec. to change the
step bar (3, 5, 7 or 9 steps are available.
Indicates the currently active step bar.
Flashes while the SWR is being mea-
sured.
Step o
RTTY
BLANK
VFO A
S1 3 5 7 9 20 40 60dB
P 5 10
O
The antenna is well matched in this range
CH
10
CH
4.0
3.5
3.0
2.5
2.0
1.5
1.0
