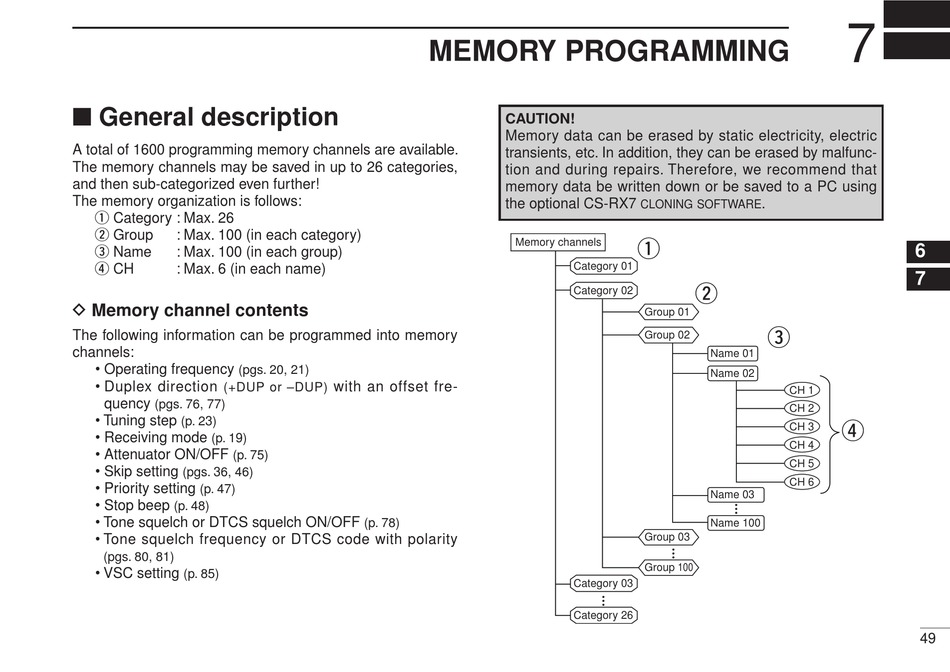

■ General description

A total of 1600 programming memory channels are available.
The memory channels may be saved in up to 26 categories,
and then sub-categorized even further!
The memory organization is follows:
q Category : Max. 26
w Group
: Max. 100 (in each category)
e Name
: Max. 100 (in each group)
r CH
: Max. 6 (in each name)
D Memory channel contents
The following information can be programmed into memory
channels:
• Operating frequency
(pgs. 20, 21)
• Duplex direction
(+DUP or –DUP)
quency
(pgs. 76, 77)
• Tuning step
(p. 23)
• Receiving mode
(p. 19)
• Attenuator ON/OFF
(p. 75)
• Skip setting
(pgs. 36, 46)
• Priority setting
(p. 47)
• Stop beep
(p. 48)
• Tone squelch or DTCS squelch ON/OFF
• Tone squelch frequency or DTCS code with polarity
(pgs. 80, 81)
• VSC setting
(p. 85)

MEMORY PROGRAMMING

CAUTION!
Memory data can be erased by static electricity, electric
transients, etc. In addition, they can be erased by malfunc-
tion and during repairs. Therefore, we recommend that
memory data be written down or be saved to a PC using
the optional CS-RX7
with an offset fre-
(p. 78)
cloning software
q
Memory channels
Category 01
w
Category 02
Group 01
Group 02
Group 03
Group 100
Category 03
Category 26
7
.
e
Name 01
Name 02
CH 1
CH 2
r
CH 3
CH 4
CH 5
CH 6
Name 03
Name 100
