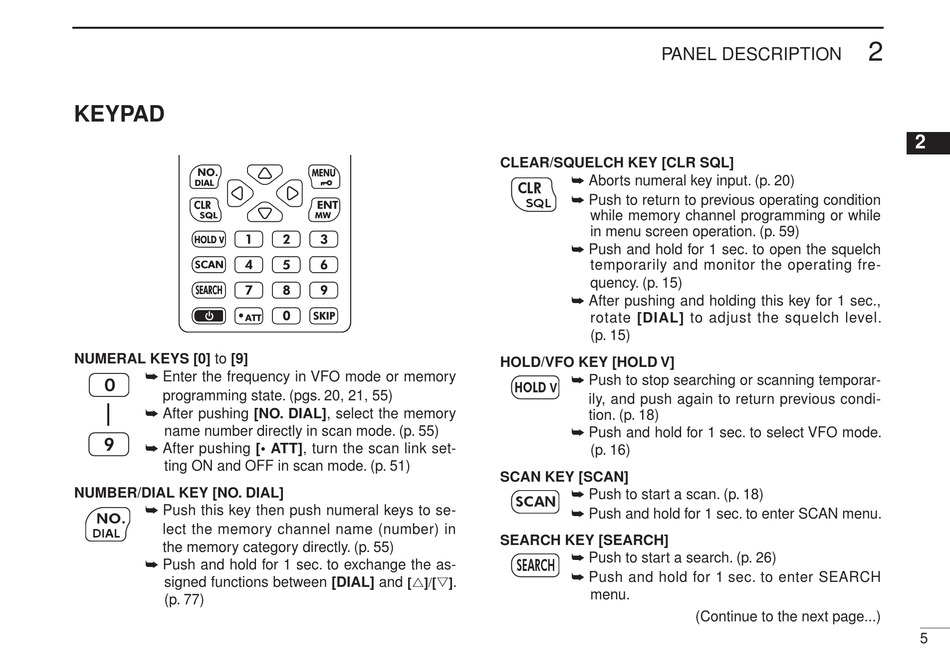

Icom IC-RX7 Instruction Manual page 13

KEYPAD
NO. NO.
DIAL DIAL
CLR CLR
SQL SQL
1 1
HOLD HOLD
V V
4 4
SCAN SCAN
7 7
SEARCH SEARCH
. .
ATT ATT
NUMERAL KEYS [0] to [9]
➥ Enter the frequency in VFO mode or memory
0
programming state. (pgs. 20, 21, 55)
➥ After pushing [NO. DIAL], select the memory
name number directly in scan mode. (p. 55)
9
➥ After pushing [• ATT], turn the scan link set-
ting ON and OFF in scan mode. (p. 51)
NUMBER/DIAL KEY [NO. DIAL]
➥ Push this key then push numeral keys to se-
NO.
lect the memory channel name (number) in
DIAL
the memory category directly. (p. 55)
➥ Push and hold for 1 sec. to exchange the as-
signed functions between [DIAL] and
(p. 77)
MENU MENU
ENT ENT
MW MW
2 2 3 3
5 5 6 6
8 8 9 9
0 0
SKIP SKIP
.
[r]/[s]
PANEL DESCRIPTION
CLEAR/SQUELCH KEY [CLR SQL]
➥ Aborts numeral key input. (p. 20)
CLR
➥ Push to return to previous operating condition
SQL
while memory channel programming or while
in menu screen operation. (p. 59)
➥ Push and hold for 1 sec. to open the squelch
temporarily and monitor the operating fre-
quency. (p. 15)
➥ After pushing and holding this key for 1 sec.,
rotate [DIAL] to adjust the squelch level.
(p. 15)
HOLD/VFO KEY [HOLD V]
➥ Push to stop searching or scanning temporar-
HOLD
V
ily, and push again to return previous condi-
tion. (p. 18)
➥ Push and hold for 1 sec. to select VFO mode.
(p. 16)
SCAN KEY [SCAN]
➥ Push to start a scan. (p. 18)
SCAN
➥ Push and hold for 1 sec. to enter SCAN menu.
SEARCH KEY [SEARCH]
➥ Push to start a search. (p. 26)
SEARCH
➥ Push and hold for 1 sec. to enter SEARCH
menu.
2
(Continue to the next page...)
