9
OTHER FUNCTIONS

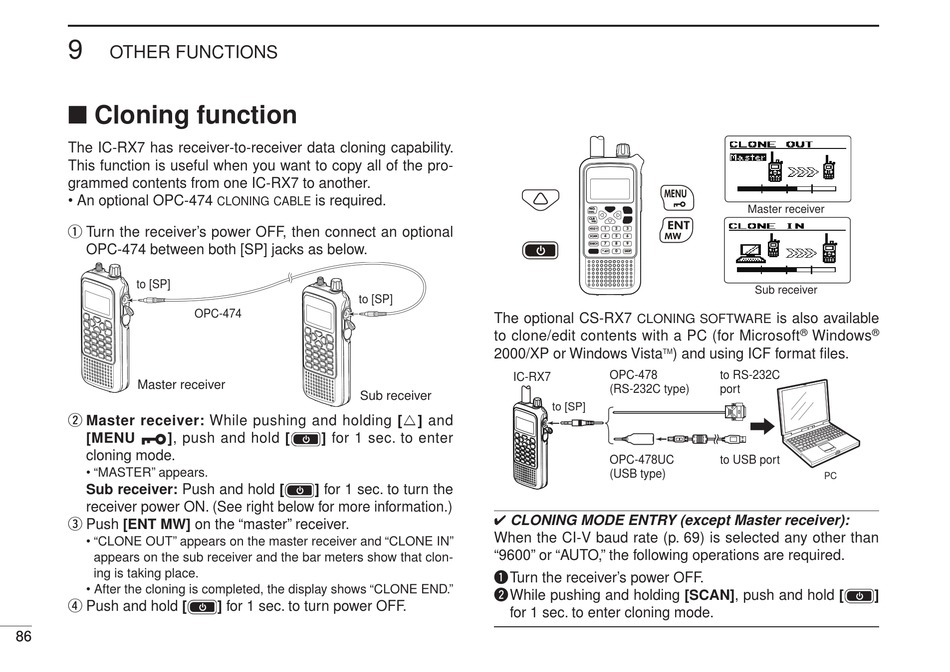

■ Cloning function

The IC-RX7 has receiver-to-receiver data cloning capability.
This function is useful when you want to copy all of the pro-
grammed contents from one IC-RX7 to another.
• An optional OPC-474
q Turn the receiver's power OFF, then connect an optional
OPC-474 between both [SP] jacks as below.
to [SP]
OPC-474
Master receiver
w Master receiver: While pushing and holding [r] and
[MENU ], push and hold [
cloning mode.
• "MASTER" appears.
Sub receiver: Push and hold [
receiver power ON. (See right below for more information.)
e Push [ENT MW] on the "master" receiver.
• "CLONE OUT" appears on the master receiver and "CLONE IN"
appears on the sub receiver and the bar meters show that clon-
ing is taking place.
• After the cloning is completed, the display shows "CLONE END."
r Push and hold [
86 86
cloning cable is required.
to [SP]
Sub receiver
] for 1 sec. to enter
] for 1 sec. to turn the
] for 1 sec. to turn power OFF.
MENU
NO. MENU
DIAL
CLR ENT
ENT
SQL MW
1 2 3
HOLD V
MW
SCAN 4 5 6
7 8 9
SEARCH
.
0 SKIP
ATT
The optional CS-RX7
CLONING SOFTWARE
to clone/edit contents with a PC (for Microsoft
2000/XP or Windows Vista ) and using ICF format files.
TM
OPC-478
IC-RX7
(RS-232C type)
to [SP]
OPC-478UC
(USB type)
✔ CLONING MODE ENTRY (except Master receiver):
When the CI-V baud rate (p. 69) is selected any other than
"9600" or "AUTO," the following operations are required.
q Turn the receiver's power OFF.
w While pushing and holding [SCAN], push and hold [
for 1 sec. to enter cloning mode.
Master receiver
Sub receiver
is also available
® ®
Windows
to RS-232C
port
to USB port
PC
]
