Icom IC-RX7 Instruction Manual page 30

5

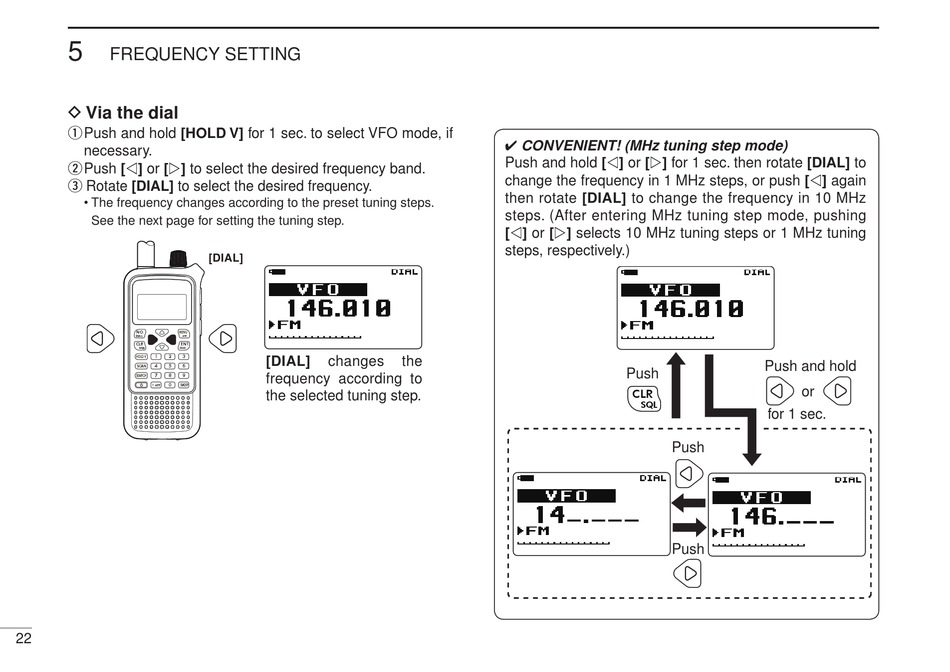

FREQUENCY SETTING
D Via the dial
q Push and hold [HOLD V] for 1 sec. to select VFO mode, if
necessary.
w Push [v] or [w] to select the desired frequency band.
e Rotate [DIAL] to select the desired frequency.
• The frequency changes according to the preset tuning steps.
See the next page for setting the tuning step.
NO. MENU
DIAL
CLR ENT
SQL MW
1 2 3
HOLD V
4 5 6
SCAN
7 8 9
SEARCH
.
0 SKIP
ATT
22
[DIAL]
[DIAL] changes
frequency according to
the selected tuning step.
✔ CONVENIENT! (MHz tuning step mode)
Push and hold [v] or [w] for 1 sec. then rotate [DIAL] to
change the frequency in 1 MHz steps, or push [v] again
then rotate [DIAL] to change the frequency in 10 MHz
steps. (After entering MHz tuning step mode, pushing
[v] or [w] selects 10 MHz tuning steps or 1 MHz tuning
steps, respectively.)
the
Push and hold
Push
or
CLR
SQL
for 1 sec.
Push
Push
