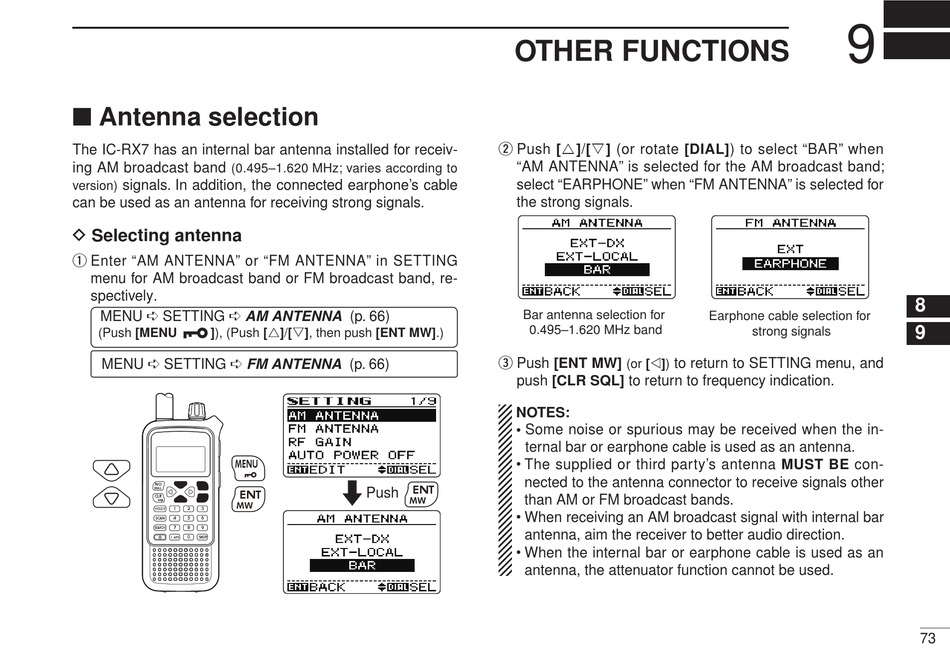

■ Antenna selection

The IC-RX7 has an internal bar antenna installed for receiv-
ing AM broadcast band
(0.495–1.620 MHz; varies according to
signals. In addition, the connected earphone's cable
version)
can be used as an antenna for receiving strong signals.
D Selecting antenna
q Enter "AM ANTENNA" or "FM ANTENNA" in SETTING
menu for AM broadcast band or FM broadcast band, re-
spectively.
MENU ➪ SETTING ➪ AM ANTENNA (p. 66)
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
MENU ➪ SETTING ➪ FM ANTENNA (p. 66)
MENU
NO. MENU
DIAL
ENT
CLR ENT
SQL MW
MW
1 2 3
HOLD V
4 5 6
SCAN
7 8 9
SEARCH
.
0
SKIP
ATT

OTHER FUNCTIONS

w Push [r]/[s] (or rotate [DIAL]) to select "BAR" when
"AM ANTENNA" is selected for the AM broadcast band;
select "EARPHONE" when "FM ANTENNA" is selected for
the strong signals.
Bar antenna selection for
0.495–1.620 MHz band
e Push [ENT MW]
push [CLR SQL] to return to frequency indication.
NOTES:
• Some noise or spurious may be received when the in-
ternal bar or earphone cable is used as an antenna.
• The supplied or third party's antenna MUST BE con-
nected to the antenna connector to receive signals other
ENT
Push
than AM or FM broadcast bands.
MW
• When receiving an AM broadcast signal with internal bar
antenna, aim the receiver to better audio direction.
• When the internal bar or earphone cable is used as an
antenna, the attenuator function cannot be used.
Earphone cable selection for
strong signals
to return to SETTING menu, and
