[Using the keypad]
➥ Enter the desired frequency
via the keypad.
• Direct input can be set until 1 kHz digit, rotate [R-DIAL] to set
below 1 kHz frequency after set tuning steps, if necessary. (See
p. 14 for setting the tuning step.)
• Pushing [VFO MHz] omits the entry of 100 kHz and below, when
you want to edit to these digits "0."
• Push [DUALWATCH] to cancel the entry.
DUALWATCH MAIN/SUB POWER
VFO MODE MR
BAND
MHz SCAN S.MW
1
1 2 3
SCOPE
4
4 5 6 0
AFC
7 8 9
LOCK
7
REC
Front
5. Receive mode selection
➥ Push [MODE SCAN] several
times to select the desired re-
ceive mode.
• FM, WFM, AM, LSB, USB and
CW are available.
VFO
MHz
2 3
5 6 0
AFC
8 9
LOCK
DUALWATCH MAIN/SUB POWER
MODE
VFO MODE MR
BAND
SCAN
MHz SCAN S.MW
1 2 3
SCOPE
4 5 6 0
AFC
7 8 9
LOCK
REC Front

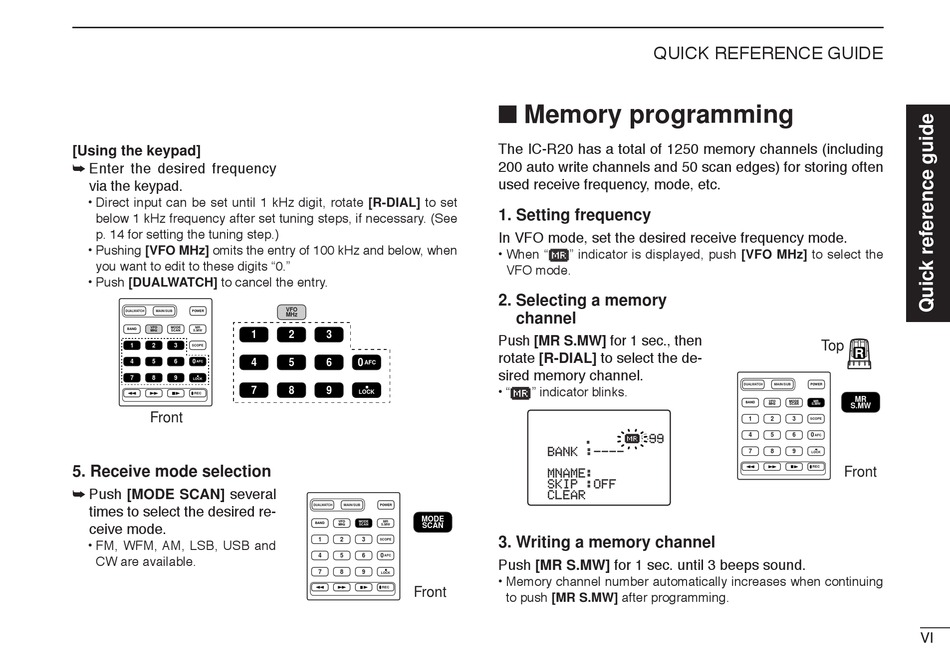

QUICK REFERENCE GUIDE

■ Memory programming

The IC-R20 has a total of 1250 memory channels (including
200 auto write channels and 50 scan edges) for storing often
used receive frequency, mode, etc.
1. Setting frequency
In VFO mode, set the desired receive frequency mode.
• When "µ µ " indicator is displayed, push [VFO MHz] to select the
VFO mode.
2. Selecting a memory
channel
Push [MR S.MW] for 1 sec., then
rotate [R-DIAL] to select the de-
sired memory channel.
• "µ µ
" indicator blinks.
FM
146.010
µ 999 999
.
-BANK BANK-:---- :----
-BNAME: -BNAME:
-MNAME: MNAME:
-SKIP SKIP-:OFF :OFF
>CLEAR CLEAR
3. Writing a memory channel
Push [MR S.MW] for 1 sec. until 3 beeps sound.
• Memory channel number automatically increases when continuing
to push [MR S.MW] after programming.
Top
DUALWATCH MAIN/SUB POWER
MR
VFO MODE MR
BAND
MHz SCAN S.MW S.MW
1 2 3
SCOPE
4 5 6 0
AFC
7 8 9
LOCK
REC
Front
VI
