I Function display

q w e r
q TRANSMIT INDICATOR
Appears while transmitting.
w BUSY INDICATOR
Appears while receiving a signal or when the squelch is
open.
e SIGNAL STRENGTH METER
Indicates relative receive signal strength level.
r LOW POWER INDICATOR
Appears when low output power is selected.
[High/Low] must be assigned to the desired program-
mable key using the optional CS-400PRO
when change the output power.
SOFTWARE
t SQUELCH INDICATOR
Appears when the channel is in 'Audible' condition
(SelCall/CTCSS mute is released).
y DUPLEX INDICATOR
Appears when the duplex operation is selected.
t y u i o
!0
!1
CLONING
PANEL DESCRIPTION

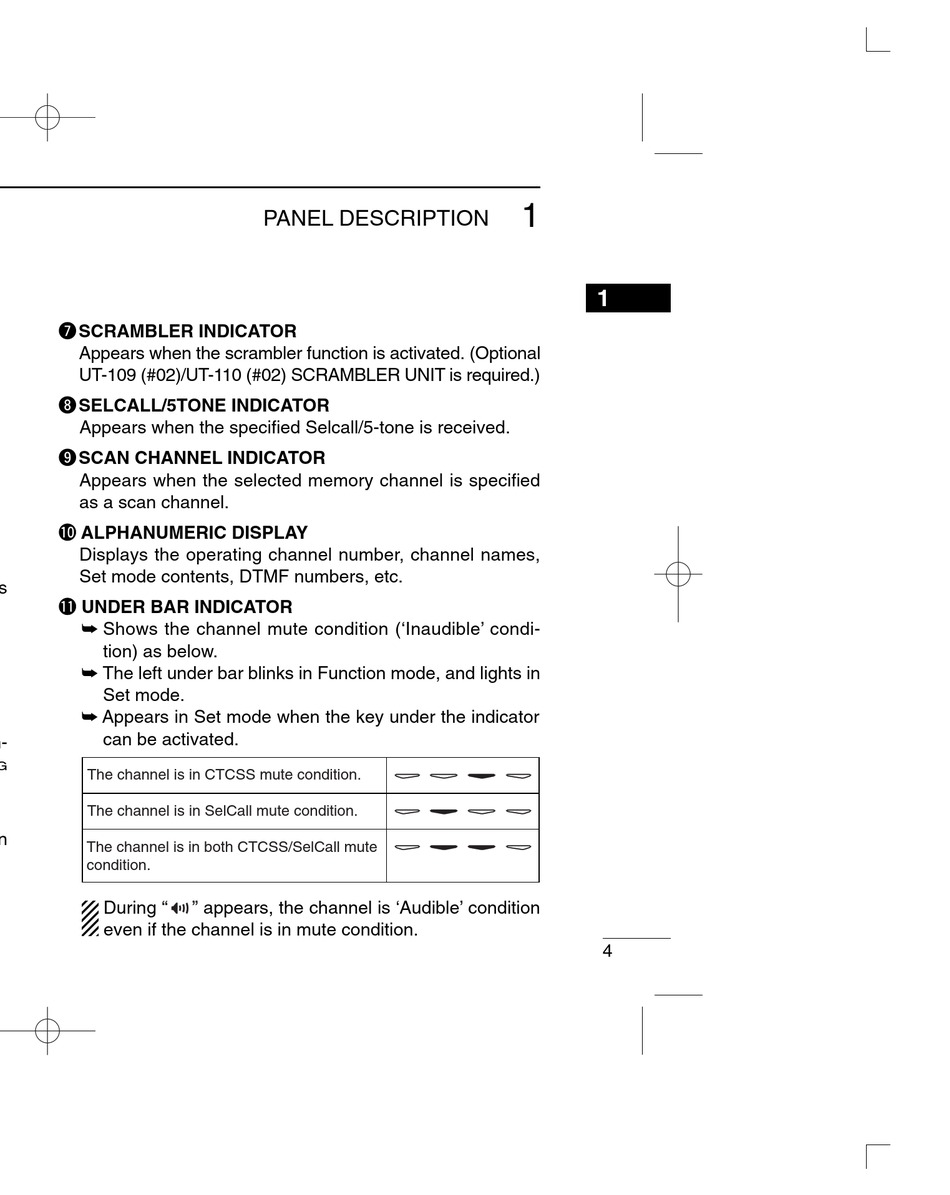

u SCRAMBLER INDICATOR
Appears when the scrambler function is activated. (Optional
UT-109 (#02)/UT-110 (#02) SCRAMBLER UNIT is required.)
i SELCALL/5TONE INDICATOR
Appears when the specified Selcall/5-tone is received.
o SCAN CHANNEL INDICATOR
Appears when the selected memory channel is specified
as a scan channel.
!0 ALPHANUMERIC DISPLAY
Displays the operating channel number, channel names,
Set mode contents, DTMF numbers, etc.
!1 UNDER BAR INDICATOR
➥ Shows the channel mute condition ('Inaudible' condi-
tion) as below.
➥ The left under bar blinks in Function mode, and lights in
Set mode.
➥ Appears in Set mode when the key under the indicator
can be activated.
The channel is in CTCSS mute condition.
The channel is in SelCall mute condition.
The channel is in both CTCSS/SelCall mute
condition.
During " " appears, the channel is 'Audible' condition
even if the channel is in mute condition.
