Programmable Function Keys - Icom IC-400PRO Instruction Manual

The following functions can be assigned to [MONI], [SCN],
[DUP], [ O ], [ ] and [ ] programmable function keys with
the optional CS-400PRO
CLONING SOFTWARE
In the following explanations, programmable function names
are bracketed. The specific switch used to activate the func-
tion depends on programming.
CH UP AND DOWN KEYS
➥ In standby condition, push to select an operating channel.
➥ After pushing [BANK/FUNC], push to select the desired
channel bank.
*The private channels are set in the channel bank 2 to 8. Select
the desired channel bank before operating the private mode.
BANK/FUNC KEY
➥ Push to enter channel bank selection mode.
• In channel bank selection mode, push [
desired channel bank.
➥ Push for 1 sec. to toggle Function mode, Set mode or
Normal mode.
• Returns to the Normal mode automatically after 30 sec. when no
key operations are performed in Function or Set mode.
Normal mode
Push [ O ]
for 1 sec.
Set mode
NOTE: This key should be assigned to Normal/Function
mode respectively to change the key mode.

PROGRAMMABLE FUNCTION KEYS

.
]/[ ] to select the
Function mode

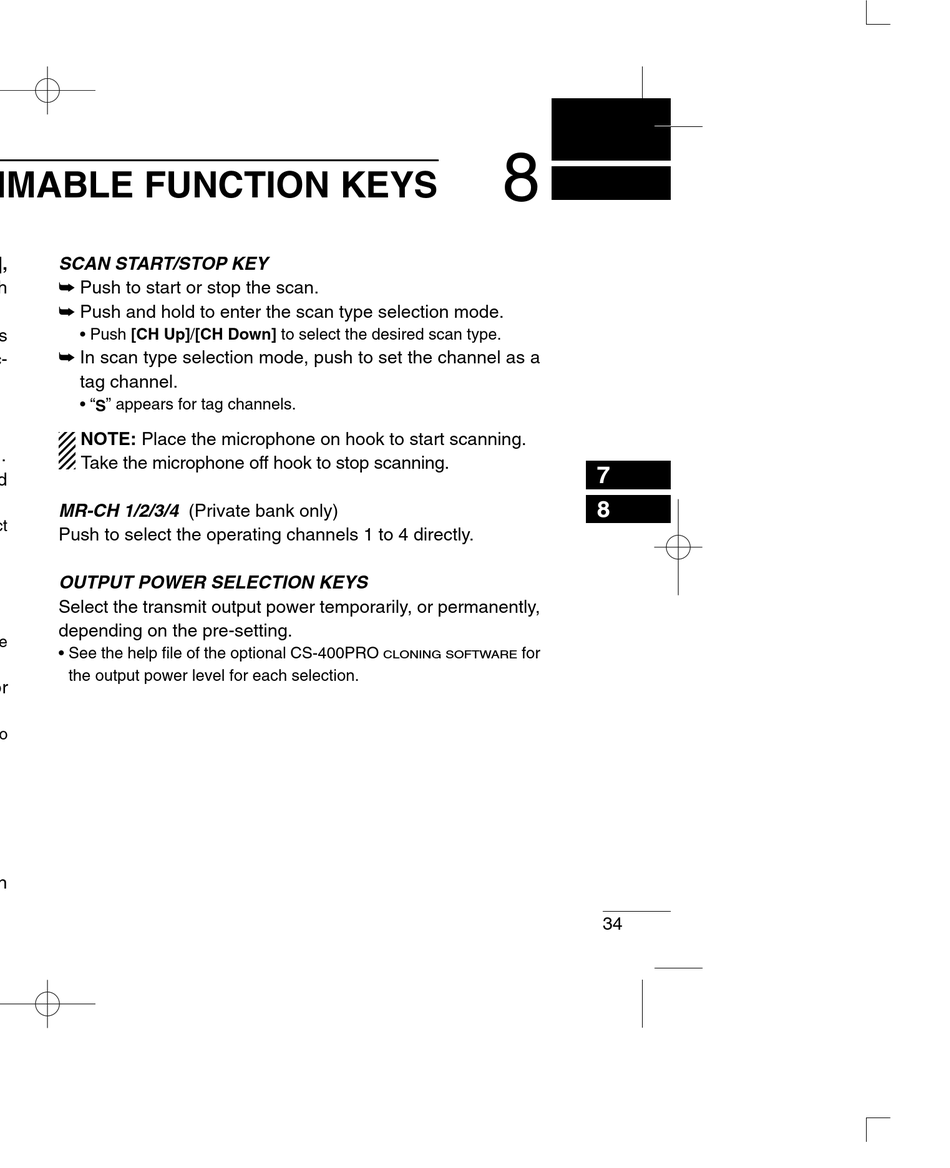

SCAN START/STOP KEY
➥ Push to start or stop the scan.
➥ Push and hold to enter the scan type selection mode.
• Push [CH Up]/[CH Down] to select the desired scan type.
➥ In scan type selection mode, push to set the channel as a
tag channel.
• " S " appears for tag channels.
NOTE: Place the microphone on hook to start scanning.
Take the microphone off hook to stop scanning.
MR-CH 1/2/3/4 (Private bank only)
Push to select the operating channels 1 to 4 directly.
OUTPUT POWER SELECTION KEYS
Select the transmit output power temporarily, or permanently,
depending on the pre-setting.
• See the help file of the optional CS-400PRO
the output power level for each selection.
8
7
8
for
CLONING SOFTWARE
34
