CONNECTION AND MAINTENANCE

I Rear panel and connection

Antenna
Optional cable
(OPC-617)
37
Optional speaker
(SP-22)
q
t
e
r
w
+
red:
12V
Battery
NEVER connect to
a 24 V battery.
black:

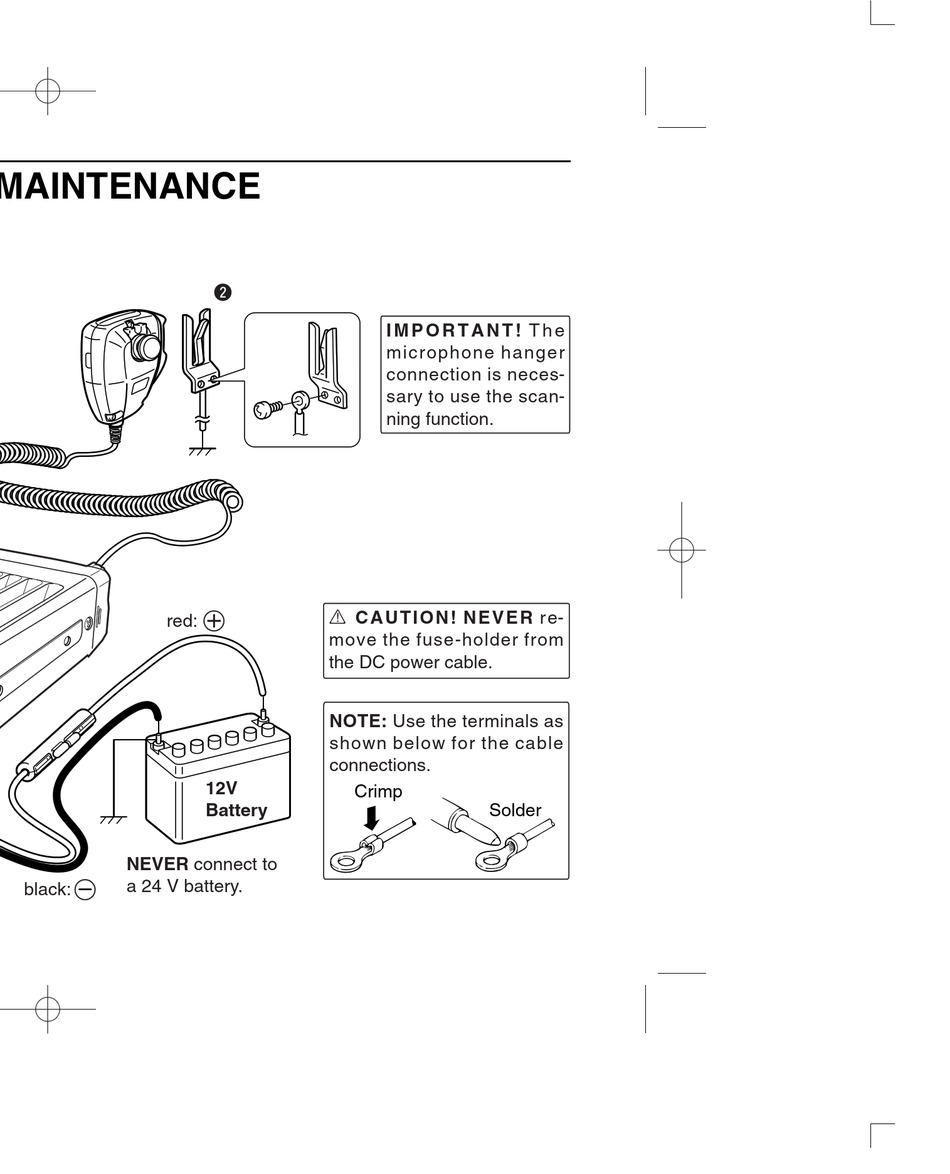

I M P O R T A N T ! T h e
microphone hanger
connection is neces-
sary to use the scan-
ning function.
R C A U T I O N ! N E V E R r e-
move the fuse-holder from
the DC power cable.
NOTE: Use the terminals as
shown below for the cable
connections.
Crimp
Solder
