I When Receiving A Call - Icom IC-400PRO Instruction Manual

I When receiving a call

D Receiving an individual call
When receiving an individual call (default setting);
- "PiRo" beeps sound repeatedly for 10 sec.
- Transmits the answer back call with single tone for 2 sec.
- The received ID code is displayed and memorised into the trans-
ceiver.
- " " and " " appear, and the channel turns 'Audible' condition
(mute is released)
RX code is receiving SelCall code. Max. 8 RX code chan-
nels can be pre-programmed into the IC-400PRO using
the optional CS-400PRO
You can set the transceiver condition when receiving an indi-
vidual call using the CS-400PRO
help file for setting details.
Recall the memorised RX code:
q During in Function mode, push [SCN] (ID-MR Select) to
display the memorised RX code.
w Push [
]/[ ] to select the desired RX code.
e Push [MONI] (Call) to transmit the code on the selected
channel.
.
CLONING SOFTWARE
. See the
CLONING SOFTWARE
Appear
SELCALL OPERATION

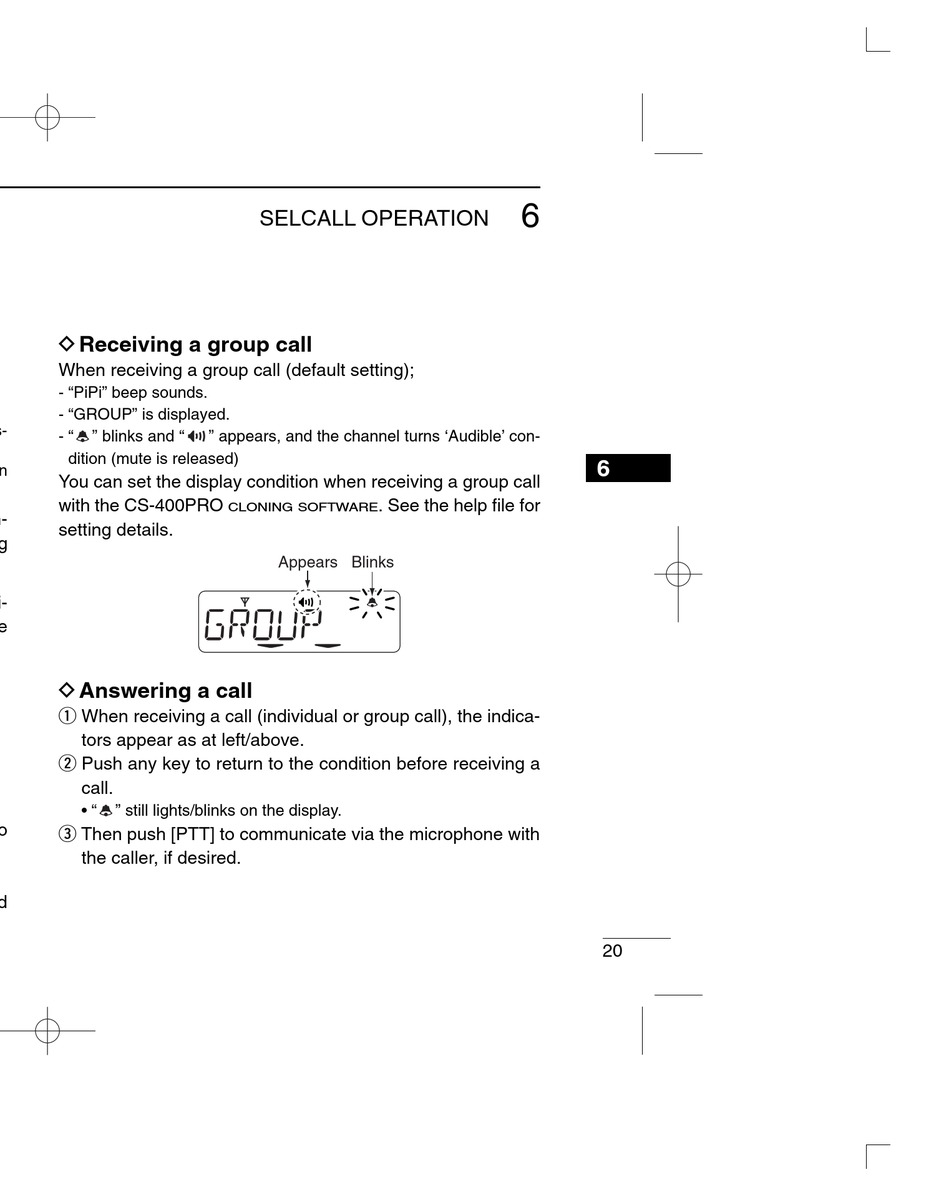

D Receiving a group call
When receiving a group call (default setting);
- "PiPi" beep sounds.
- "GROUP" is displayed.
- " " blinks and " " appears, and the channel turns 'Audible' con-
dition (mute is released)
You can set the display condition when receiving a group call
with the CS-400PRO
CLONING SOFTWARE
setting details.
Appears
D Answering a call
q When receiving a call (individual or group call), the indica-
tors appear as at left/above.
w Push any key to return to the condition before receiving a
call.
• " " still lights/blinks on the display.
e Then push [PTT] to communicate via the microphone with
the caller, if desired.
6
. See the help file for
Blinks
6
20
