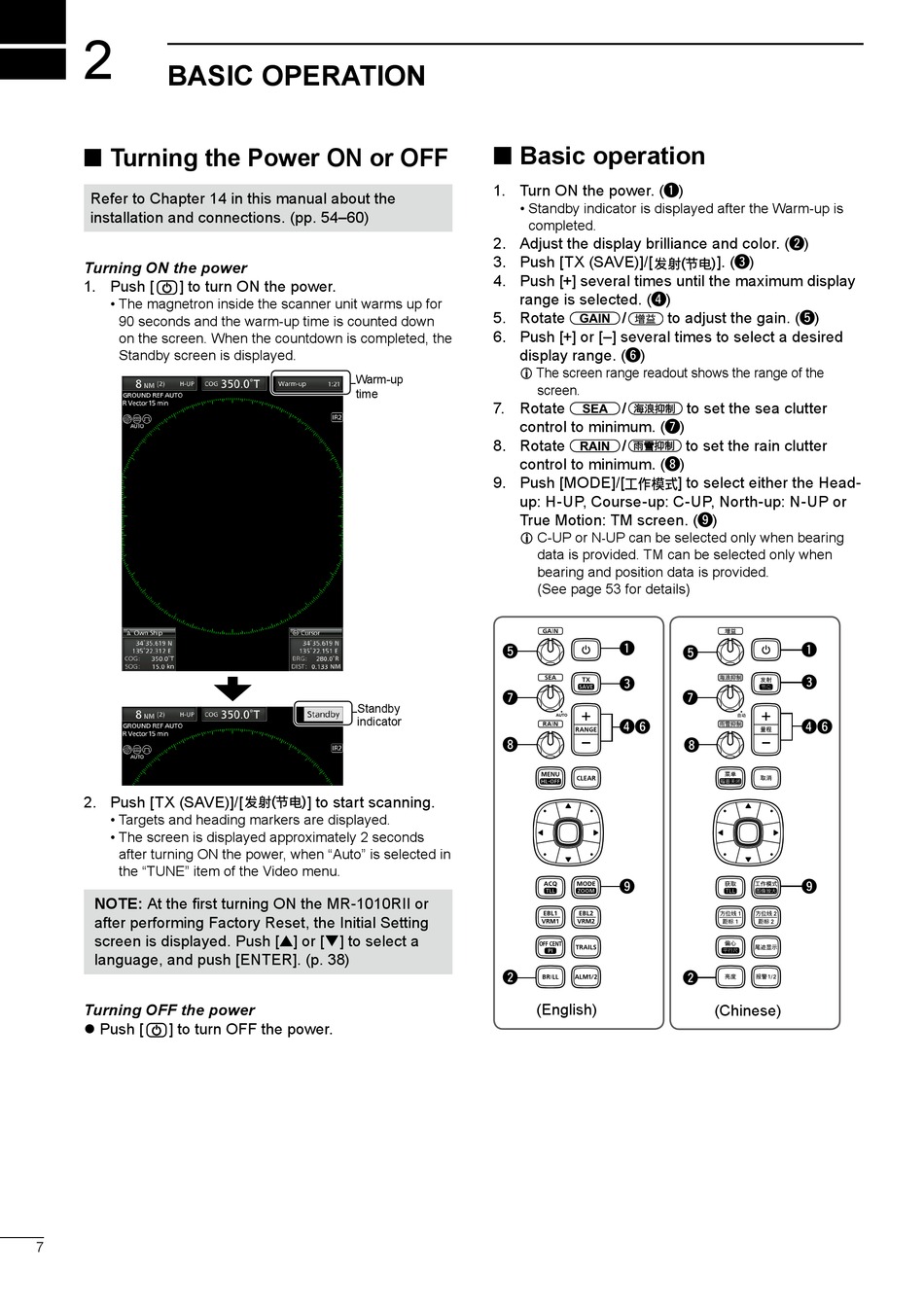

BASIC OPERATION

■ Turning the Power ON or OFF

Refer to Chapter 14 in this manual about the
installation and connections. (pp. 54–60)
Turning ON the power
1. Push [ ] to turn ON the power.
• The magnetron inside the scanner unit warms up for
90 seconds and the warm-up time is counted down
on the screen. When the countdown is completed, the
Standby screen is displayed.
2. Push [TX (SAVE)]/[
• Targets and heading markers are displayed.
• The screen is displayed approximately 2 seconds
after turning ON the power, when "Auto" is selected in
the "TUNE" item of the Video menu.
NOTE: At the first turning ON the MR-1010RII or
after performing Factory Reset, the Initial Setting
screen is displayed. Push [p] or [q] to select a
language, and push [ENTER]. (p. 38)
Turning OFF the power
z Push [ ] to turn OFF the power.
7
Warm-up
time
Standby
indicator
] to start scanning.
■ Basic operation
1. Turn ON the power. (q)
• Standby indicator is displayed after the Warm-up is
completed.
2. Adjust the display brilliance and color. (w)
3. Push [TX (SAVE)]/[
4. Push [+] several times until the maximum display
range is selected. (r)
5. Rotate / to adjust the gain. (t)
GAIN
6. Push [+] or [–] several times to select a desired
display range. (y)
L The screen range readout shows the range of the
screen.
7. Rotate /
SEA
control to minimum. (u)
/
8. Rotate
RAIN
control to minimum. (i)
9. Push [MODE]/[
up: H-UP, Course-up: C-UP, North-up: N-UP or
True Motion: TM screen. (o)
L C-UP or N UP can be selected only when bearing
-
data is provided. TM can be selected only when
bearing and position data is provided.
(See page 53 for details)
q
t
e
u
ry
i
o
w
(English)
]. (e)
to set the sea clutter
to set the rain clutter
] to select either the Head-
q
t
e
u
ry
i
o
w
(Chinese)
