Typical digital system
A typical digital system is shown in Figure 2. In this configuration, control commands come from a software
application, such as GE's SymSecure or SymNav, instead of keypads or ASCII control software. The dome's
built-in encoders stream video to external decoders before it is transmitted to monitors, digital recorders, and
alarm equipment. For additional details, refer to the data sheet, user manual, or application guide.

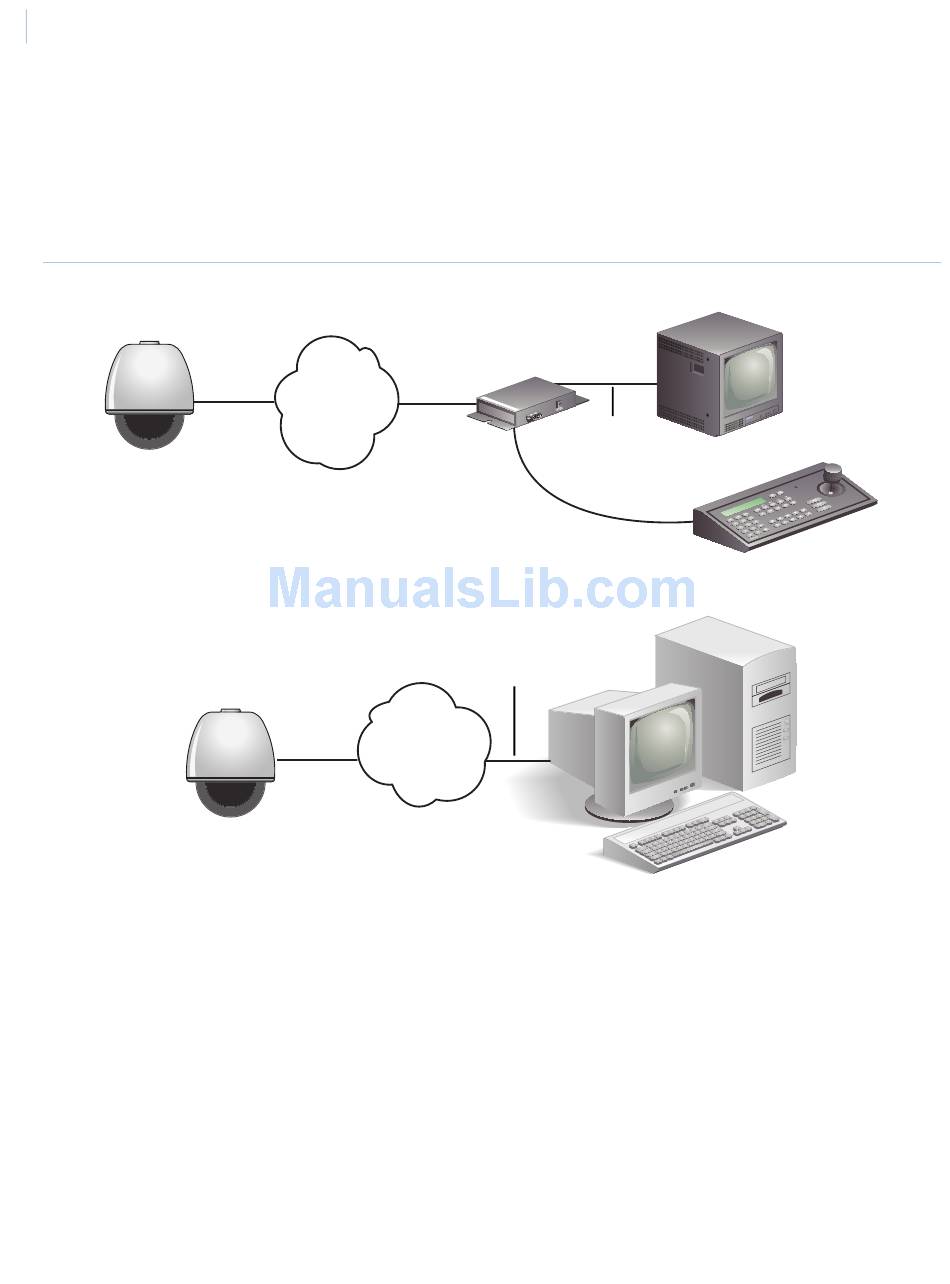

Figure 2. Typical digital system in an IP codec network
Legend
Ethernet
Network
Legend
Ethernet
SymNet
decoder
Ethernet
Coax analog
line
Ethernet
Network
CCTV monitor
KTD-405
Client PC with SymNav. Used
for setup and control.
