3-30 Compaq TL881 Minilibrary System Users Guide
1 1
10
9
8
7

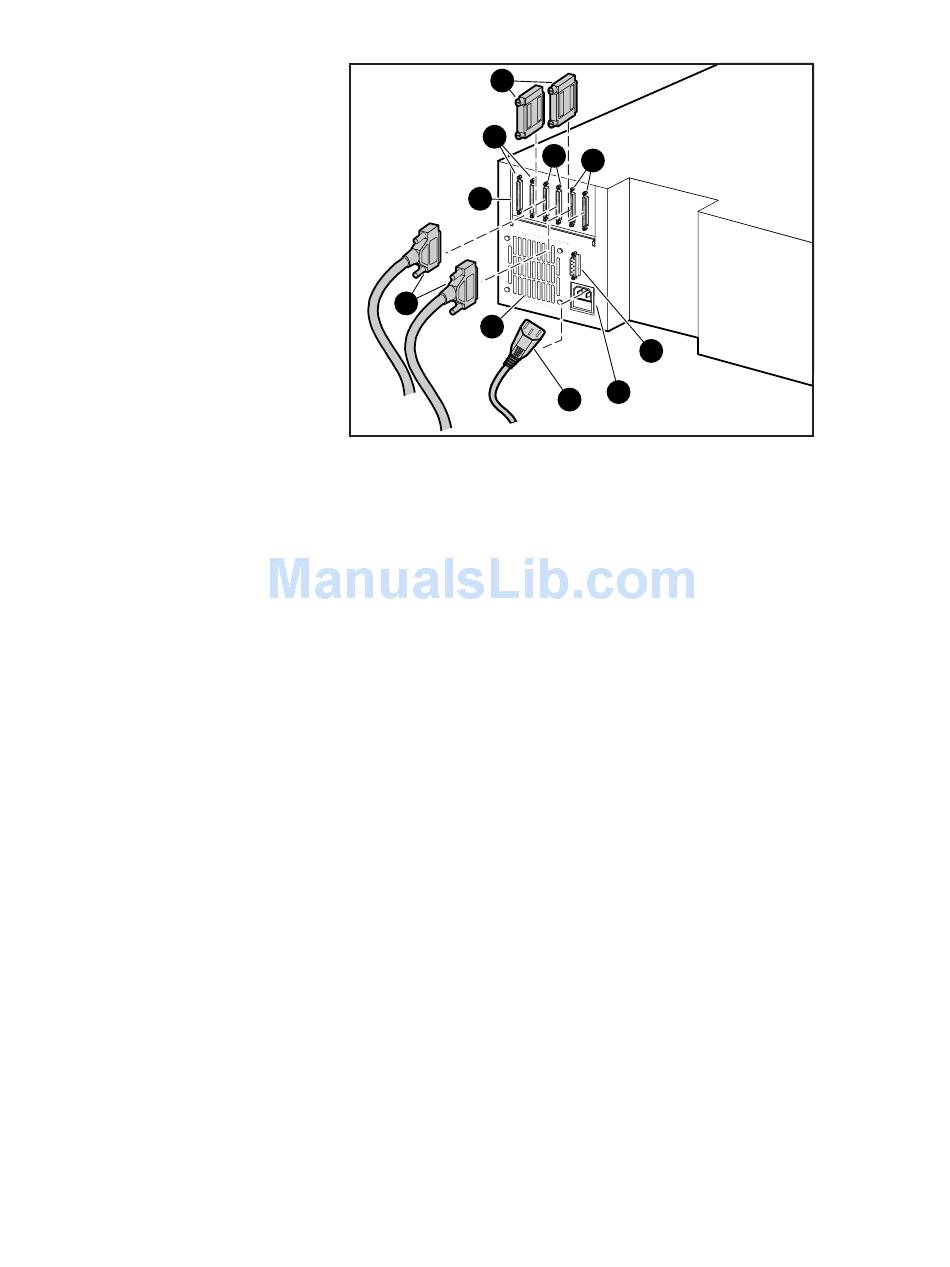

Figure 3-16. MiniLibrary Base Module SCSI Connectors, Terminators and
Cables (Fast/Wide Interface, Independent Bus Connection Shown)
SCSI terminator
DLT0
DLT1
Expansion Unit interface
Power connector
2
3
4
5
6
Power cable
Fan
SCSI cables
SCSI interface
Library connectors (not used in
Slave mode)
SHR-1246
