Figure 3-17. Minilibrary Base Module Scsi Connectors, Terminator, Jumpers And Cables (Scsi-2 Interface, Daisy-Chained Connection Shown) - Compaq SW TL881 DLT Mini-Lib/1 Manual

3-31 Compaq TL881 Minilibrary System Users Guide
1 1
10
9
7
8

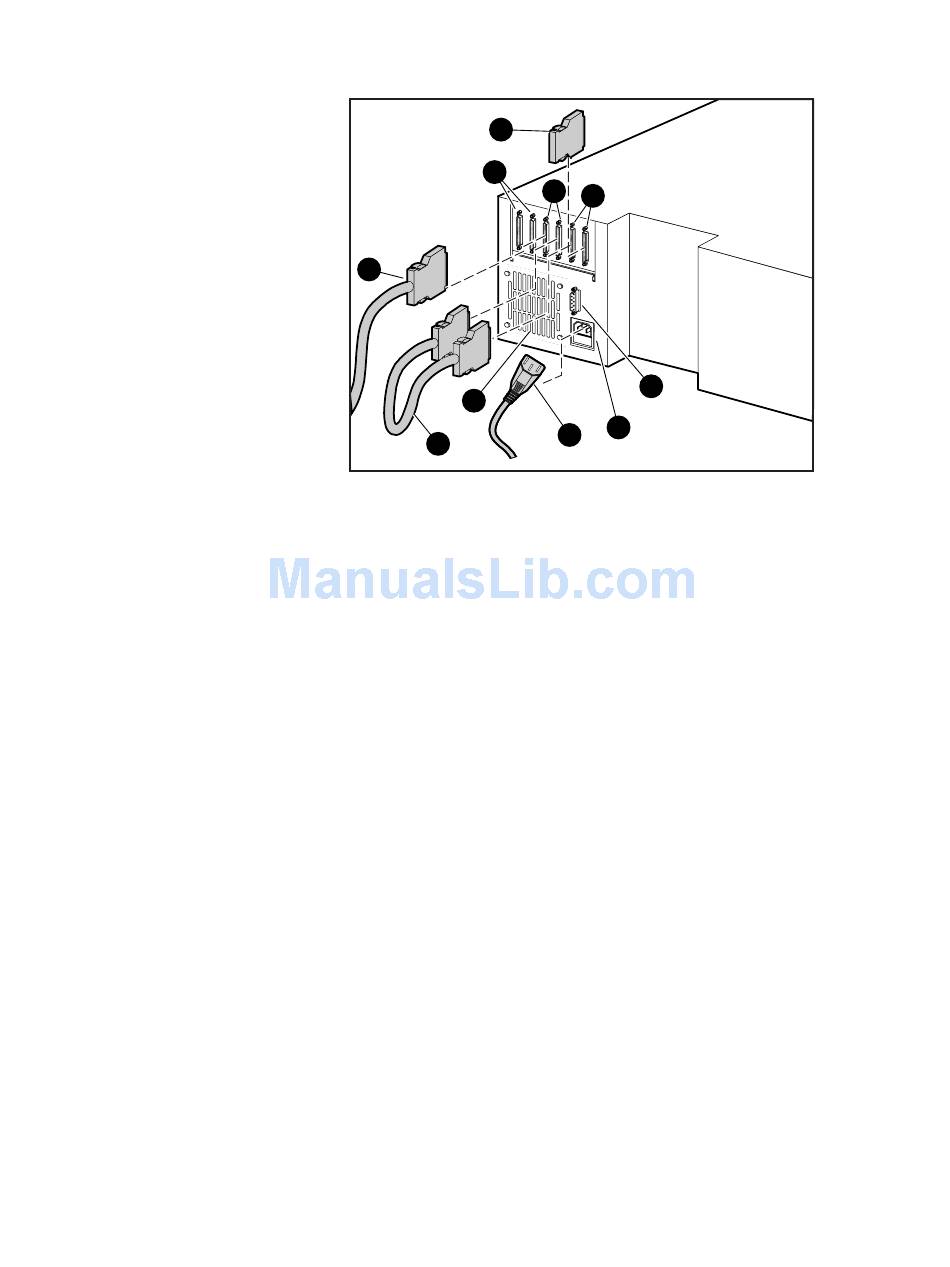

Figure 3-17. MiniLibrary Base Module SCSI Connectors, Terminator, Jumpers
and Cables (SCSI-2 Interface, Daisy-chained Connection Shown)
SCSI terminator
DLT0
DLT1
Expansion Unit interface
Power connector
Configuration
Individual MiniLibrary Base Modules in all newly assembled systems must be
configured as described in the next section. In addition, the MiniLibrary
System is designed with several configuration options, each offering multiple
settings to support a variety of applications and platforms. The setting of each
option is stored in non-volatile memory in the module. For most applications,
you will not need to change the factory default settings.
To change settings, you need to use the control panel on the Expansion Unit.
For an overview of how the control panel works, and a description of the
functions of the buttons, indicators and display, refer to sections entitled
Entering the Menu Mode, Exiting the Menu Mode, and Navigating Through
the Menu Structure in Chapter 2, Operation.
2
3
4
5
6
Power cable
Fan
SCSI jumpers
SCSI interface
Library connectors (not used in
Slave mode)
SHR-1247
