F-4 Compaq TL881 Minilibrary System Users Guide
CAUTION: If the leader is out of position, do NOT use the cartridge; it can cause
the drive takeup leader to fail.
1
3
4
7

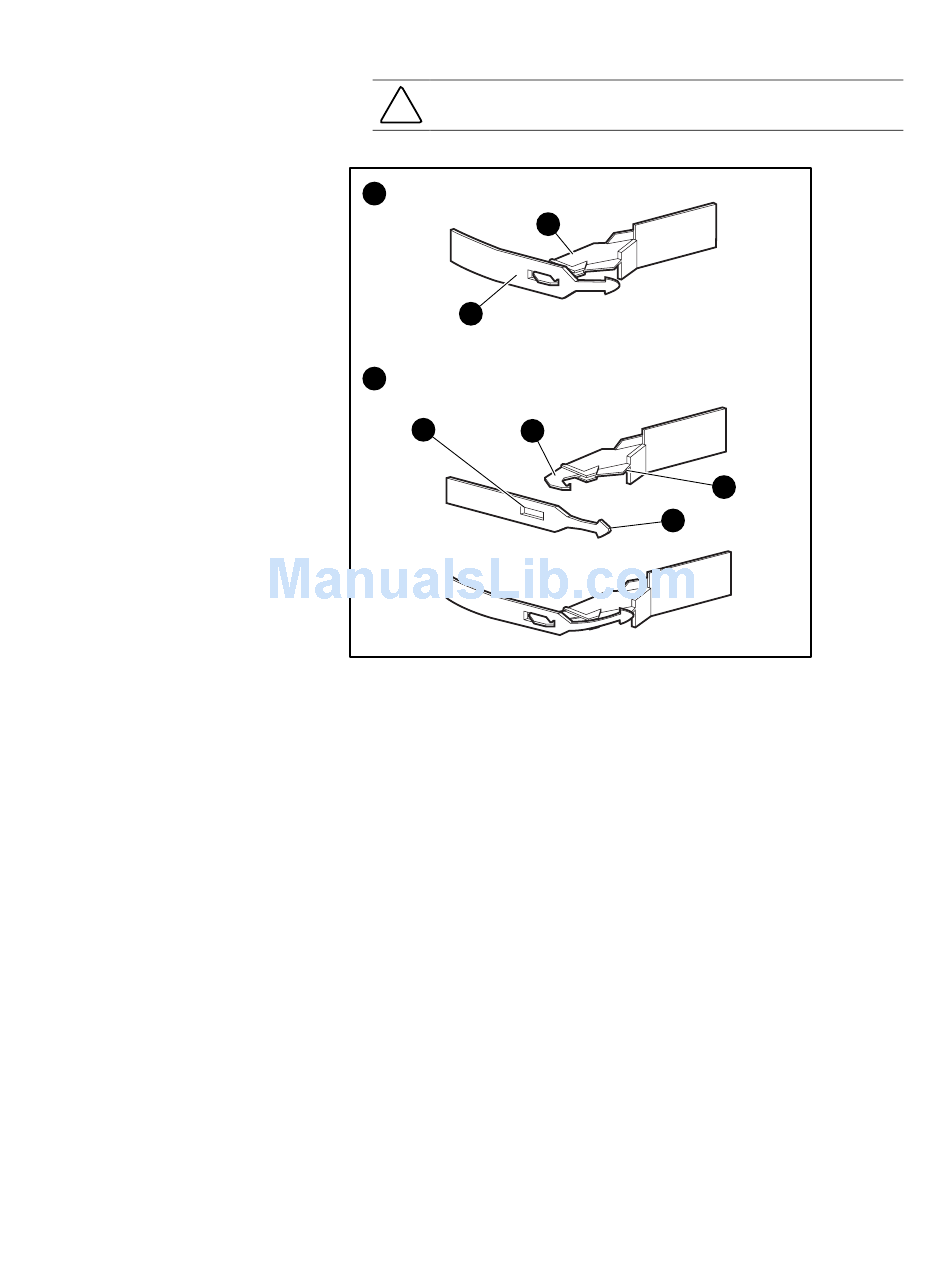

Figure F-2. Correct and incorrect cartridge (takeup) leader positions
Acceptable
Buckling link
Takeup leader
Not acceptable
5. Verify that the two reel lock levers are in position: one is located on the
same surface as the cartridge leader door, the other is located on the
bottom of the cartridge near the front left-hand corner. Both reel locks
should be visible and in the same position as a cartridge that has not
been dropped.
6. Verify that the hub reel is flush with the case surface. If the hub reel is
compressed it could become misaligned
2
5
8
Buckling link hook
Buckling link
Takeup leader notch
Takeup leader nose
6
SHR-1292
