Figure 3-4. Pass-Thru Mechanism Assembled - Compaq SW TL881 DLT Mini-Lib/1 Manual

3-8 Compaq TL881 Minilibrary System Users Guide
1

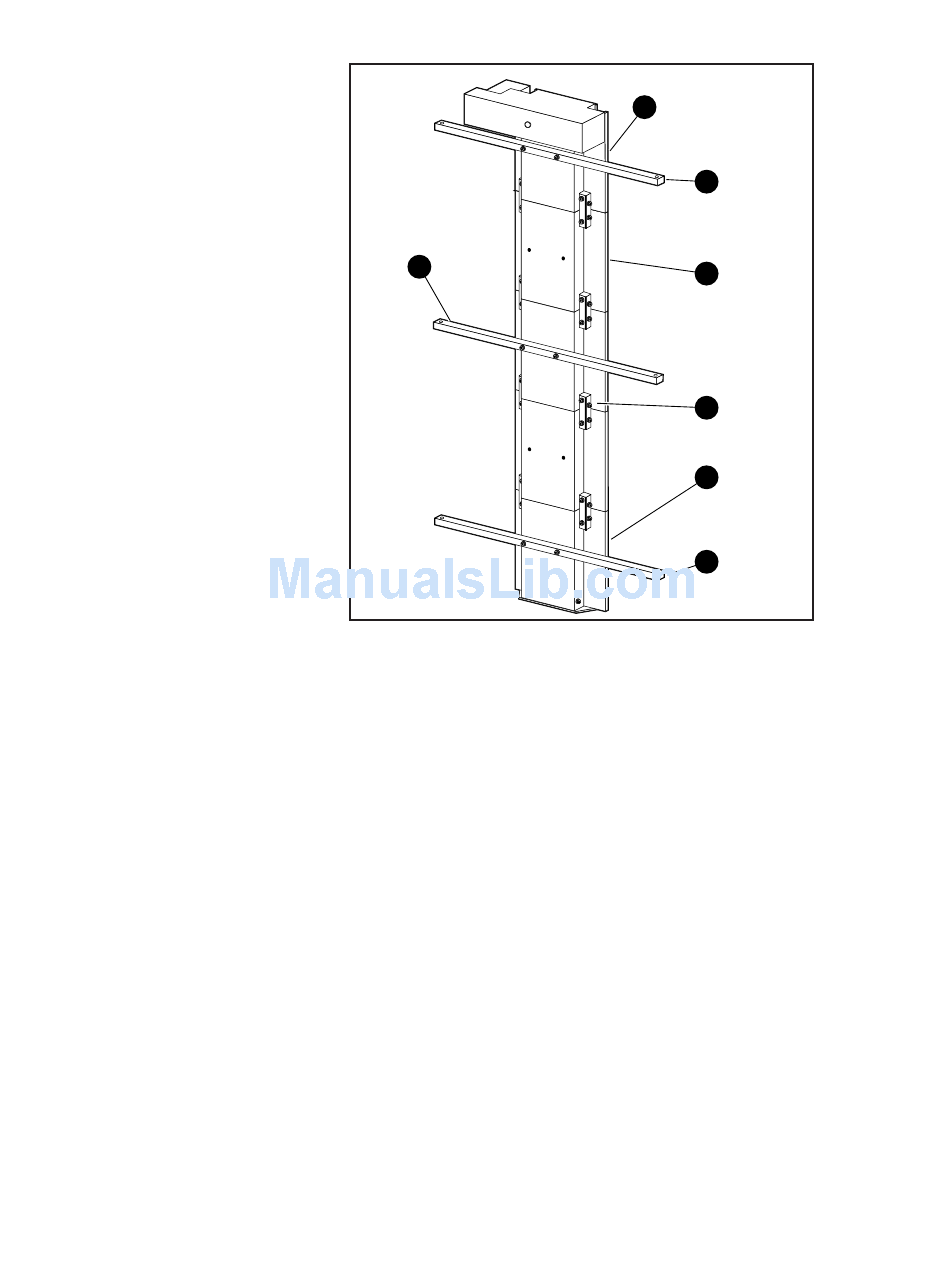

Figure 3-4. Pass-Thru Mechanism Assembled

Support brace
Motor drive section
Extension section
Tie bar
Base section
Place pairs of tie bars so that they straddle all of the joints where sections
come together. Be sure that the beveled edge is toward the inside corner of the
sections.
5. Install two M3 x 20 mm Phillips sems screws through each tie bar into
the threaded holes in the flanges of the extrusion sections. Tighten
finger tight only. Insert two M3 x 20 mm sems screws through each tie
bar into the side of the extrusion sections and finger tighten.
2
1
3
4
5
1
SHR-1236
