3-34 Compaq TL881 Minilibrary System Users Guide
8. Press the button. When the Special Configuration Submenu
Enter
reappears, turn the power switch off to recycle power.
NOTE: Expansion Unit installation remaps the cartridge slot numbering system as follows:
The 16-slots of the Expansion Unit become slot numbers 0-15. Slots 0-9 of the first
MiniLibrary Base Module become slots 16-25, etc.
A Configuration Example - Setting the SCSI ID
1. Turn the system on, and wait until the Power-On Self Test terminates
and the default screen appears on the display. Figure 3-25 shows a
typical default screen. Yours may vary depending on the number of
modules in your system, as shown in the second line.

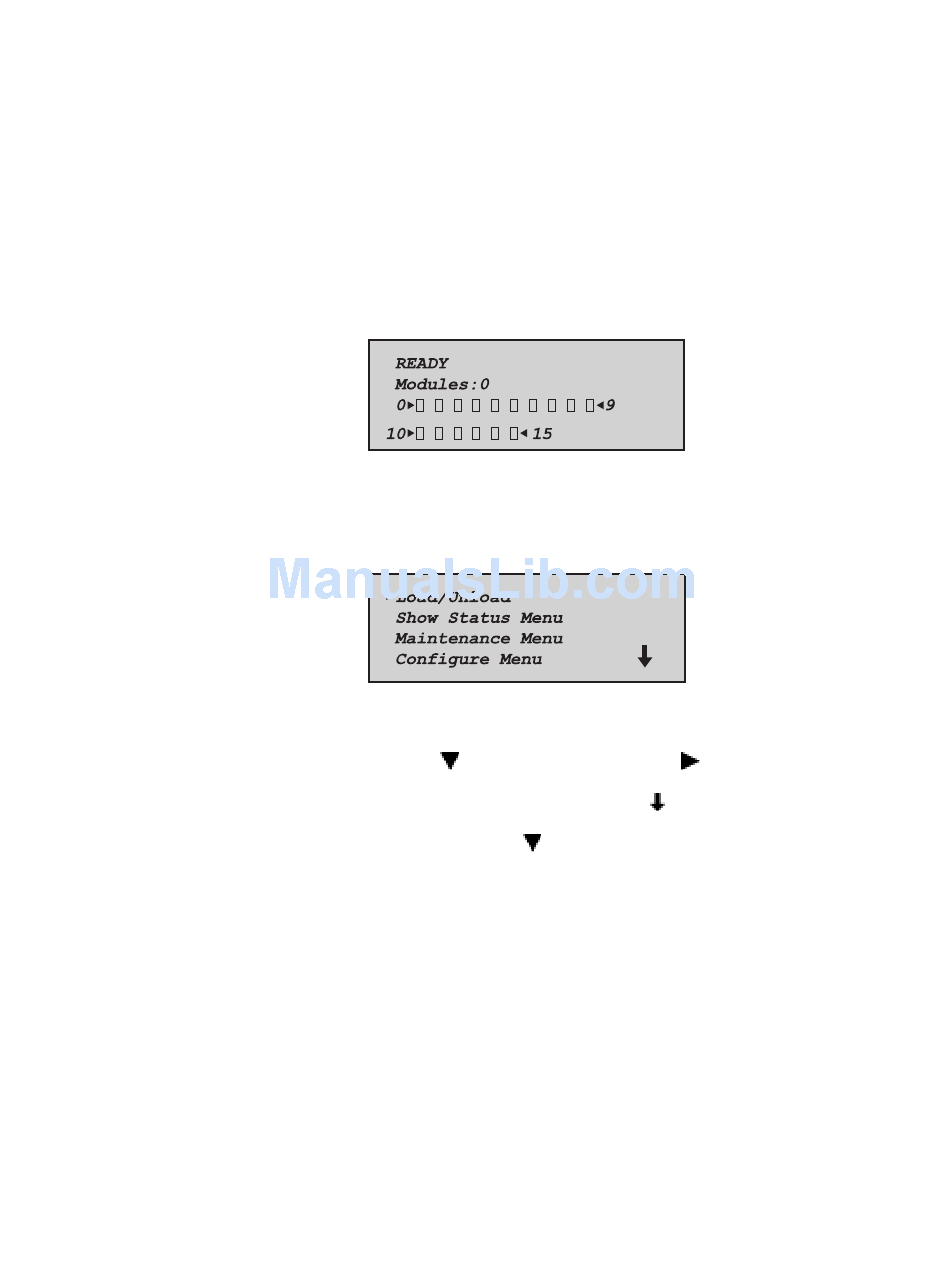

Figure 3-25. Default Screen

2. At the Default Screen, press the
Main Menu as shown in Figure 3-26:

Figure 3-26. Main Menu

3. Press the button three times to move the
press the button. The display will show the Configure Submenu,
Enter
as shown in Figure 3-27. Note that the
means that there are additional configuration options that can be reached
by scrolling with the
SHR-1446
button. The display will show the
Enter
SHR-1331
to Configure Menu, then
at the end of the fourth line
button.
