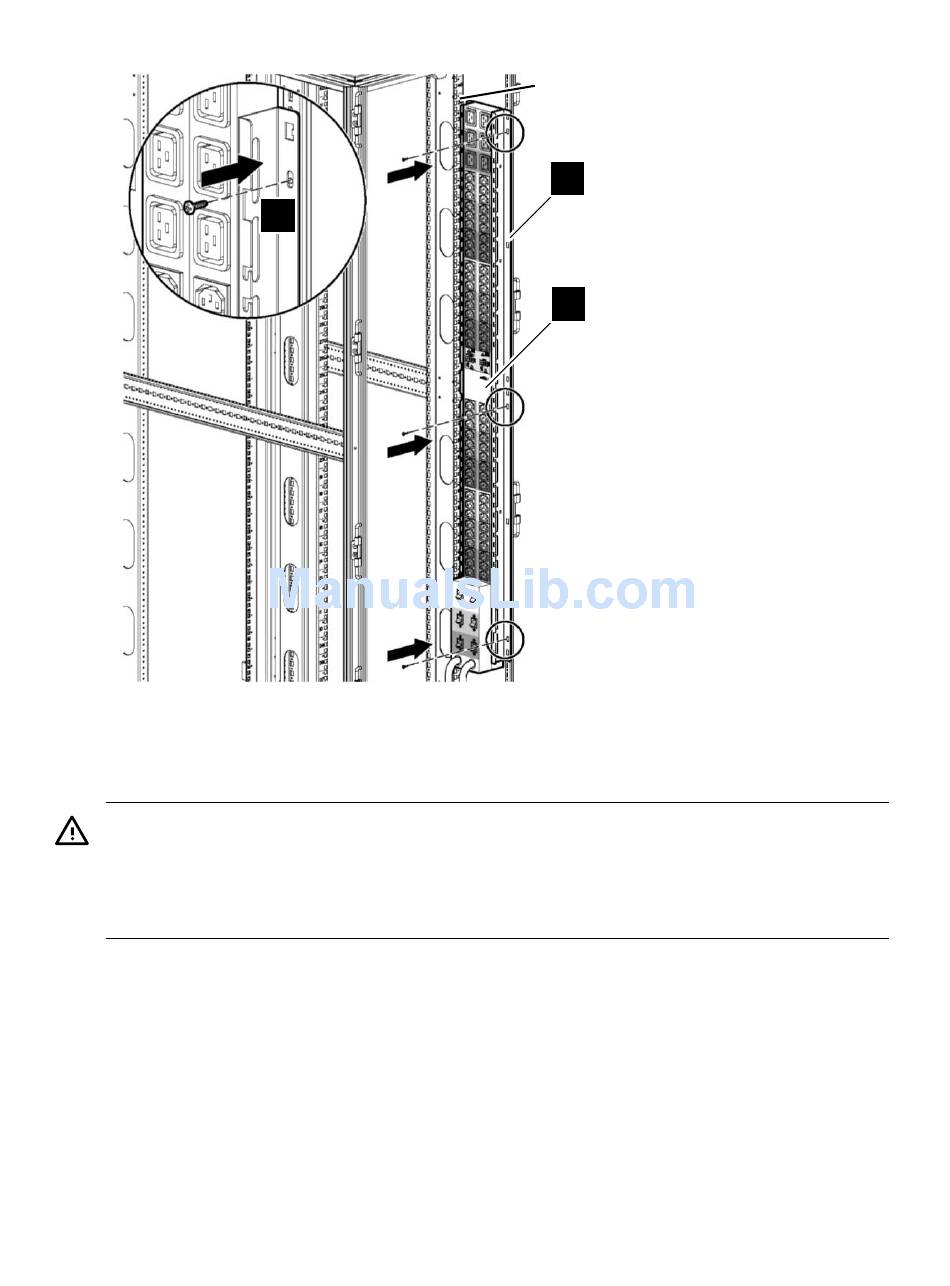

Figure 2-36 PDU for SVA
1. Fasteners — quantity three (3).
2. Attach the PDU to the rack chassis, and not the column inside the rack.
3. PDU status monitoring screen.
Warning!
For installations in computer rooms with overhead power supplies, the maximum available
power cable length when routed to the top of the rack is approximately 36 inches. Never extend
the power cable emerging from the rack in any way. If you need to supply power from overhead
outlets, relocate the power supply outlets so that they are closer to the racks.

2.9 Storage

HP Cluster Platform clusters support the following optional external SAN storage:
• MSA1000
• MSA1500
• MSA2000
• EVA4000
• EVA5000
• SB40c Server Blade Storage
The MSA1000, MSA1500, and MSA2000 storage subsystems are mounted in the utility rack. The
EVA4000, and EVA5000 storage subsystems come mounted in their own 42U racks.
