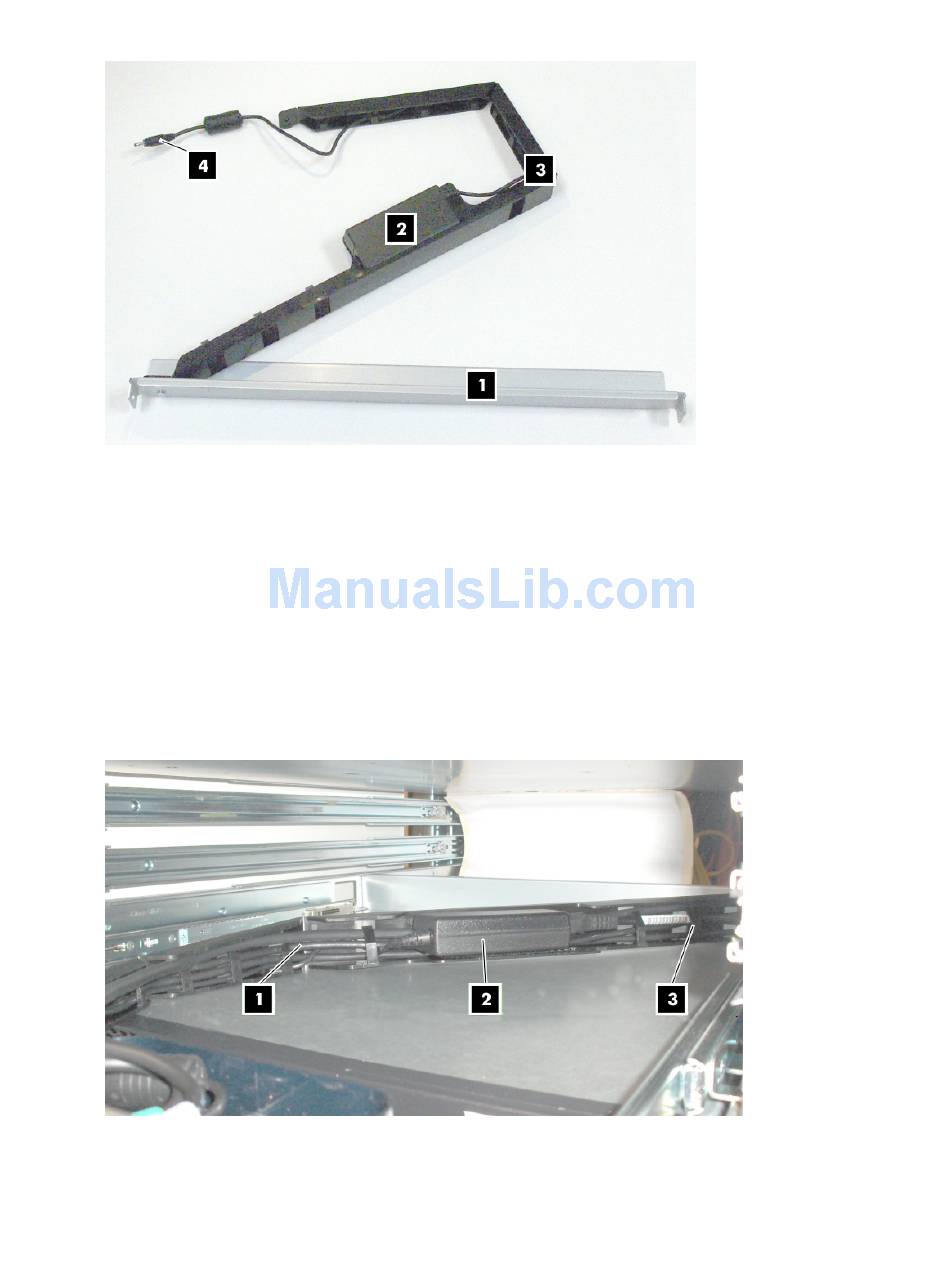

Figure 2-19 Brace Rail and Cable Management Arm
The following list corresponds to the callouts in
1. Brace rail (which mounts to both the left and right adjustable rails)
2. Power supply
3.

Cable management arm

4. Power supply cable for the TFT7600

2.7.1.3 Replacing the TFT7600 and Power Supply

This section describes how to replace a TFT7600 and power supply. When you extended the
TFT7600 from the rack, the cable management arm and cables extend with it from the brace rail
(see Figure 2-20).
Figure 2-20 Cable Management Arm
The following list corresponds to the callouts in
48 Platform Core Components
