Note:
The TFT7600 is not mounted with screws to the inner rails (see callout 1 in
slides out from the inner rails once the slide locks are simultaneously pulled back toward the
front of the unit releasing the TFT7600 from the inner rails.

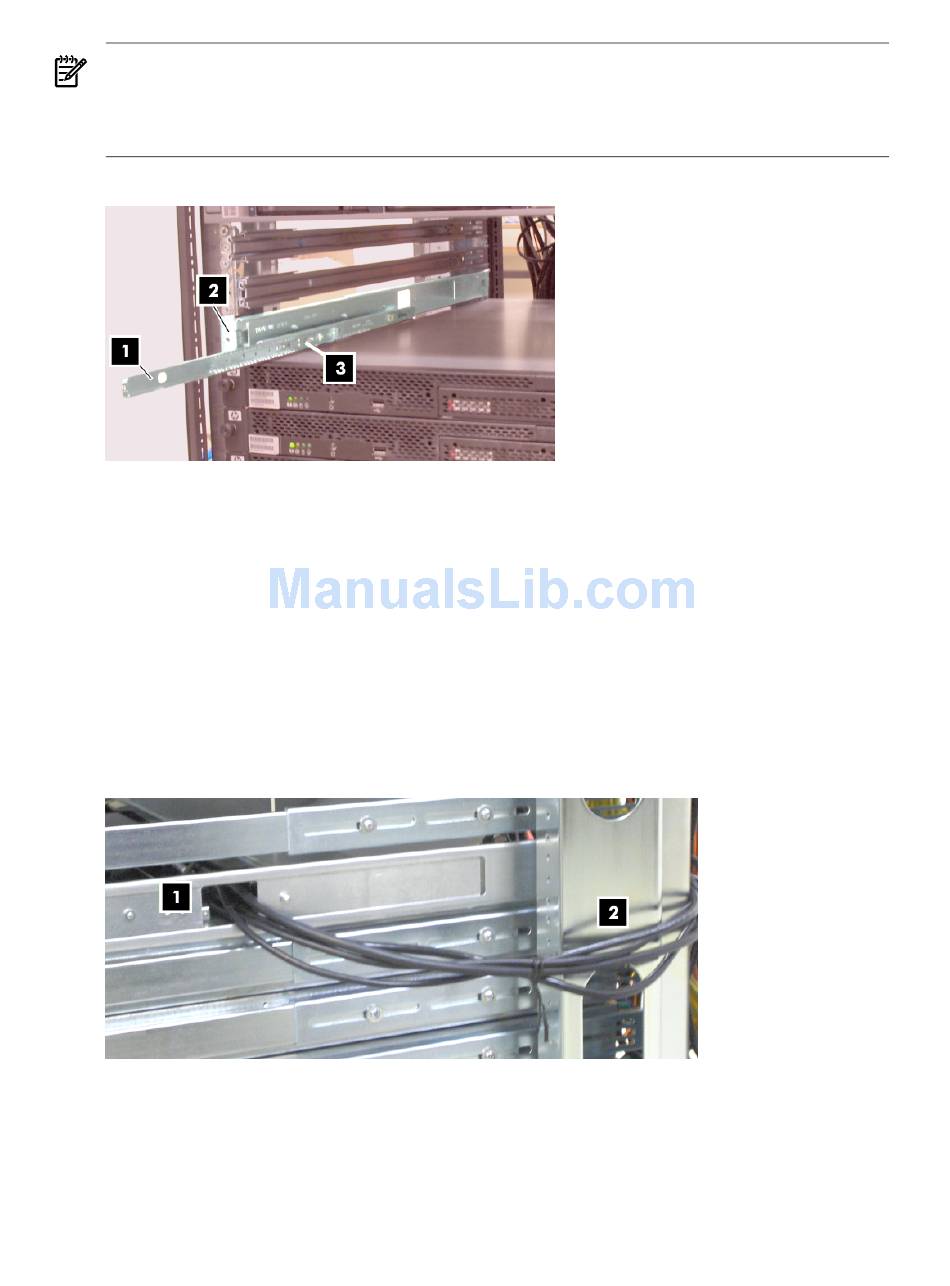

Figure 2-22 Tool-less Rails and Slides
The following list corresponds to the callouts in
1.
Inner rail (left side shown)
2.
Adjustable tool-less rail (left side shown)
3.
Slide lock
2.7.1.4 TFT7600 Cable Management
The TFT7600 cables exit through an aperture in the right side of the rail and follow around the
inner vertical RETMA rail to the appropriate connection points.
exit through the side rail and extend around to the rear of the rack. You must remove the side
panels on HP 10000 G2 Series cabinets or the side panel of a G1 series cabinet to enable access
to these cables.
Figure 2-23 TFT7600 Cable Management
The following list corresponds to the callouts in
1.
TFT7600 cables exit the side rail from the cable management arm
2.
TFT7600 cables wrap around the RETMA rail and connect to the control node
50
Platform Core Components
Figure
2-22:
Figure 2-23
Figure
2-23:
Figure
2-22). It simply
shows how the cables
