• Compatibility with HP/Compaq video monitors and "hot keys" on all HP/Compaq keyboards,
including Compaq TFT5600 and TFT7600.
• Multiple language support through programmable ROM SoftPaq (English, Spanish, French,
Dutch, German, Italian, and Japanese versions).

2.7.5 Expansion Module for SVA

The expansion module connects to an 8-port switch, letting you manage a total of 16 computers.
You can add an expansion module to the console switch, increasing the total number of accessible
servers. Only one level of tiering is allowed and implementing an expansion module is considered
one level. Figure 2-28

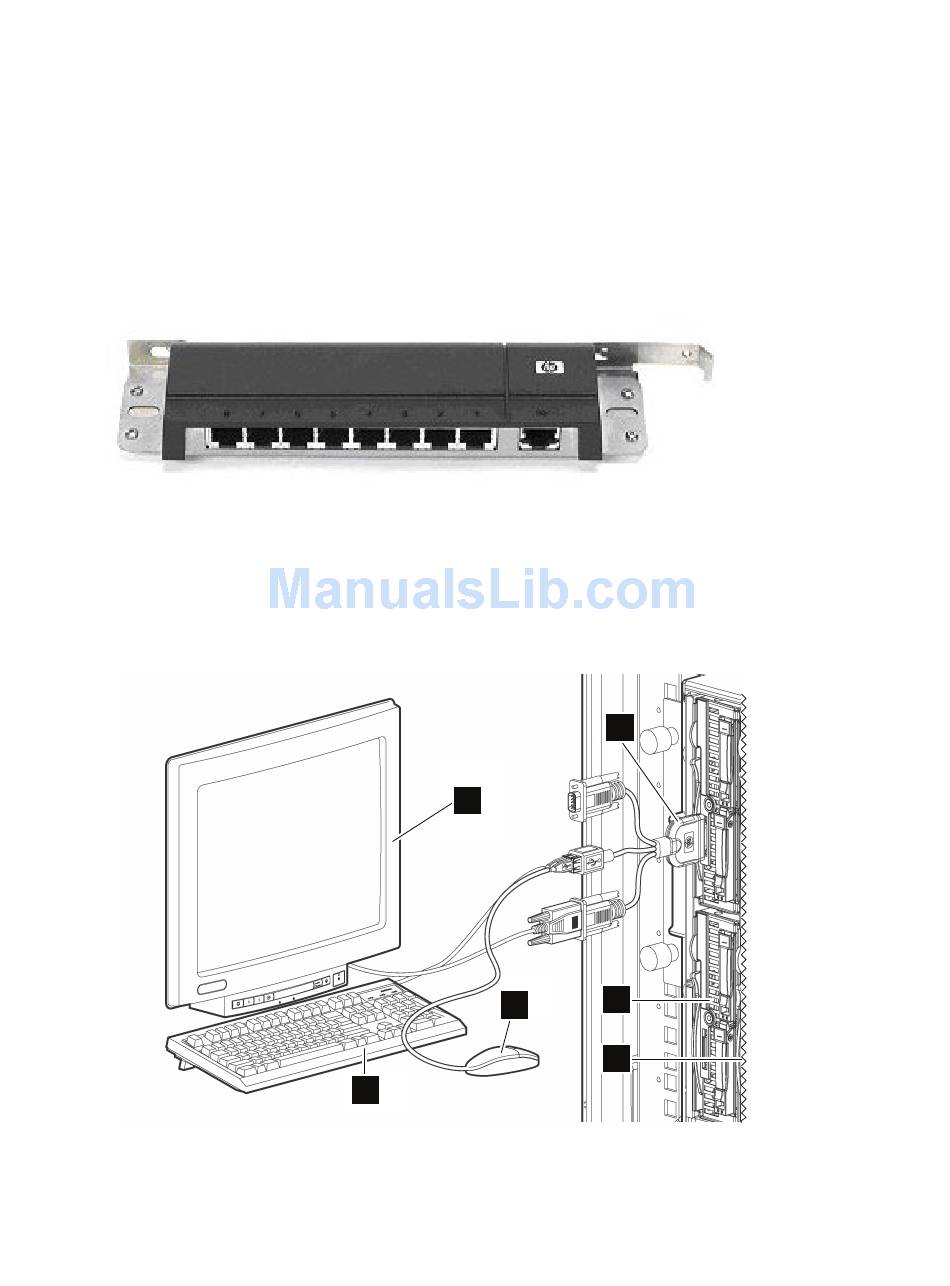

Figure 2-28 Expansion Module

2.7.6 Server Blade Access Through the Local KVM

To install software on your BladeSystem configuration, you need access to a DVD-R or RW drive.
If your configuration includes an external control node, then that node must be configured using
a DVD drive. The process to access the server blade is shown in
Figure 2-29 Server Blade Access Through the Local KVM
The following list describes the callouts in
1. Monitor
2. Keyboard
54 Platform Core Components
shows an expansion module.
1
2
Figure
Figure
4
5
3
6
2-29:
2-29.
