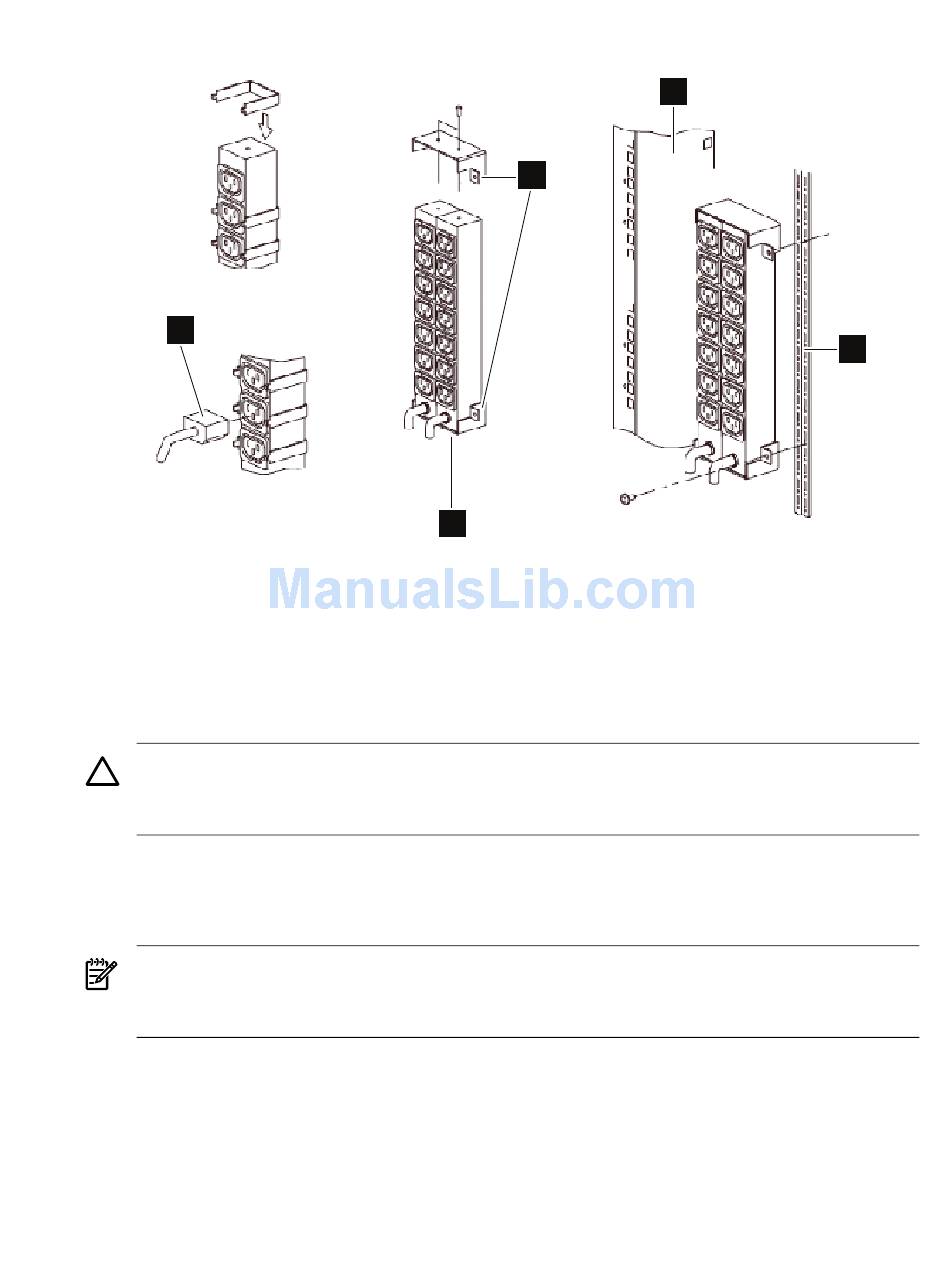

Figure 2-35 Power Strips – Double (New HP Cluster Platform Models)
1
The following list describes the callouts in
1. Power cable
2. Power strip
3. Mounting hardware
4. Right rear rack column
5. Right rear rack chassis
Caution:
Do not use the power strips to supply power to any components not already configured into the
cluster. This could cause a power overload.

2.8.2 PDU for Scalable Visualization Array (SVA)

Scalable Visualization Arrays use a 40A PDU that mounts to the vertical rack frame. No additional
power strips are required.
Note:
The PDU is mounted within U38. Viewing the back of the rack, the PDU mounts to the right rear
side of the chassis.
The PDU is provided with the following features:
• Vertical mounting in the rear of the rack, maximizing space (no additional parts are required
for mounting)
• Power cord retention bands
• A front panel display that indicates operating parameters
• A color-coded branch circuit
3
2
Figure
Figure 2-36 shows the position of the PDU in the rear for the rack.
2.8 PDUs for Cluster Platform and Scalable Visualization Array (SVA)
4
2-35:
5
