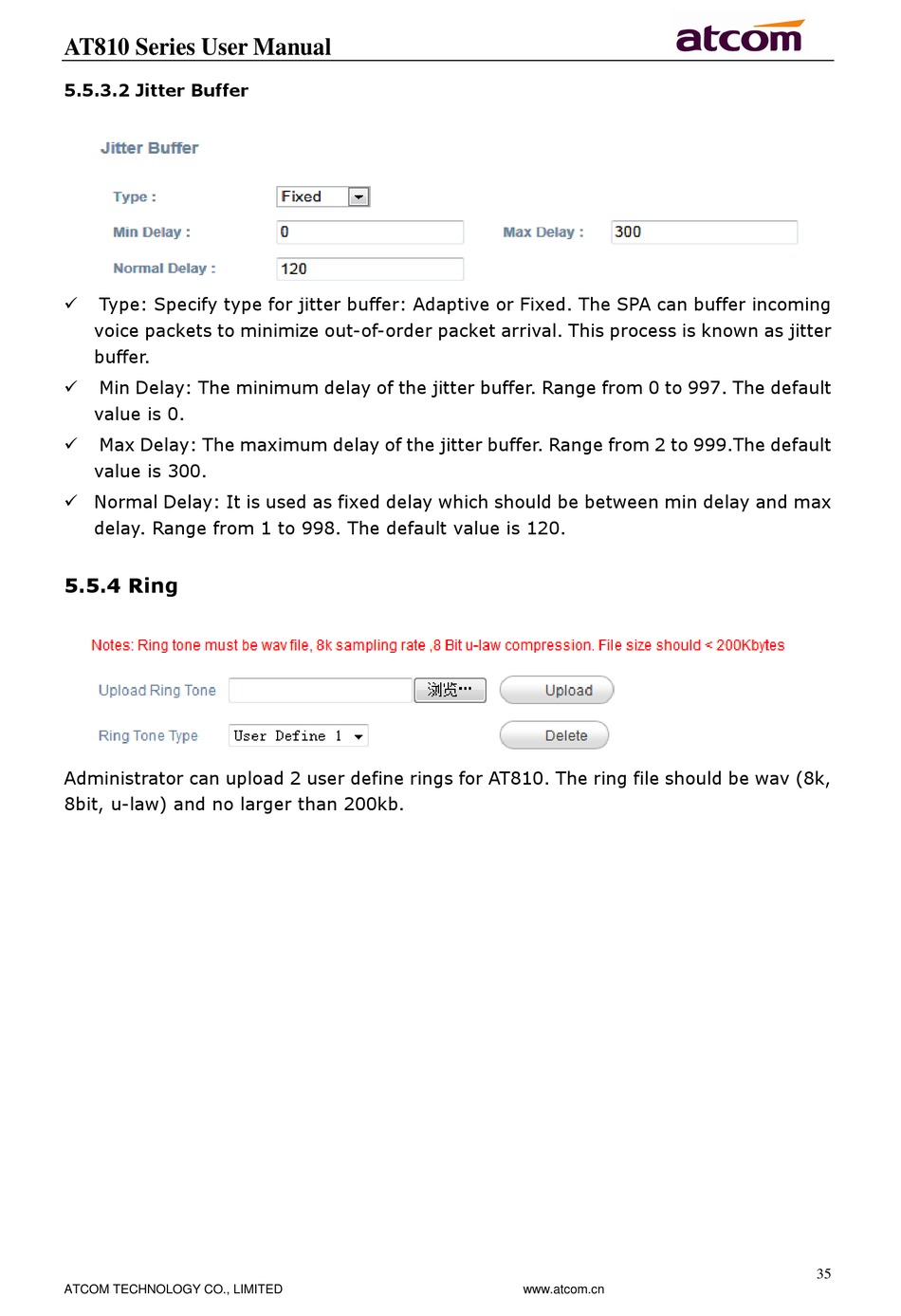

AT810 Series User Manual
5.5.3.2 Jitter Buffer
Type: Specify type for jitter buffer: Adaptive or Fixed. The SPA can buffer incoming

voice packets to minimize out-of-order packet arrival. This process is known as jitter
buffer.
Min Delay: The minimum delay of the jitter buffer. Range from 0 to 997. The default

value is 0.
Max Delay: The maximum delay of the jitter buffer. Range from 2 to 999.The default

value is 300.
 Normal Delay: It is used as fixed delay which should be between min delay and max
delay. Range from 1 to 998. The default value is 120.

5.5.4 Ring

Administrator can upload 2 user define rings for AT810. The ring file should be wav (8k,
8bit, u-law) and no larger than 200kb.
