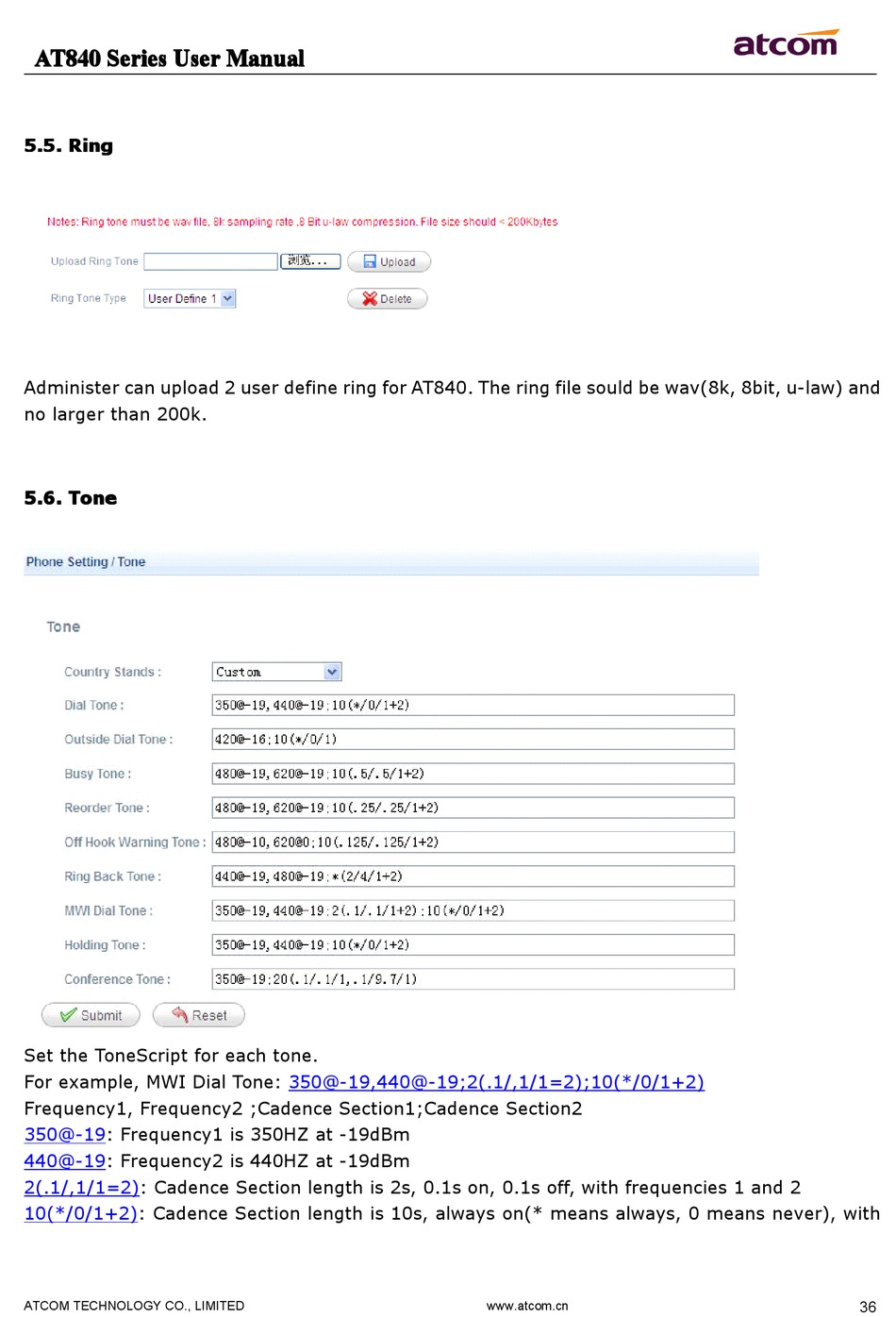

5.5. Ring

5.5. 5.5. 5.5. Ring Ring Ring
Administer can upload 2 user define ring for AT840. The ring file sould be wav(8k, 8bit, u-law) and
no larger than 200k.
5.6. 5.6.

5.6. Tone

5.6. Tone Tone Tone
Set the ToneScript for each tone.
For example, MWI Dial Tone:
Frequency1, Frequency2 ;Cadence Section1;Cadence Section2
350@-19: Frequency1 is 350HZ at -19dBm
440@-19: Frequency2 is 440HZ at -19dBm
2(.1/,1/1=2): Cadence Section length is 2s, 0.1s on, 0.1s off, with frequencies 1 and 2
10(*/0/1+2): Cadence Section length is 10s, always on(* means always, 0 means never), with
ATCOM TECHNOLOGY CO., LIMITED
Manual Manual Manual
350@-19,440@-19;2(.1/,1/1=2);10(*/0/1+2)
