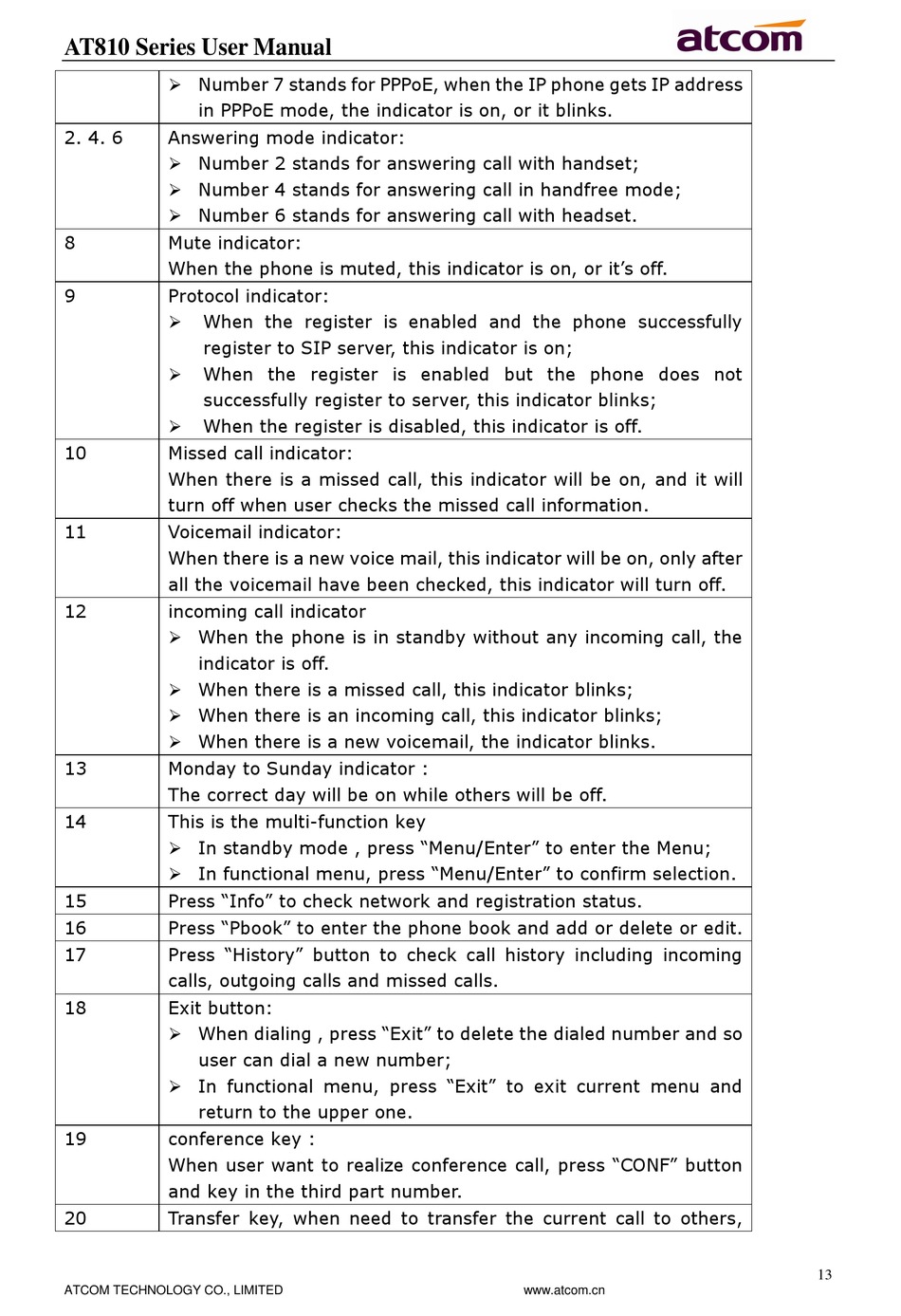

AT810 Series User Manual
 Number 7 stands for PPPoE, when the IP phone gets IP address
in PPPoE mode, the indicator is on, or it blinks.
2. 4. 6 Answering mode indicator:
 Number 2 stands for answering call with handset;
 Number 4 stands for answering call in handfree mode;
 Number 6 stands for answering call with headset.
8 Mute indicator:
When the phone is muted, this indicator is on, or it's off.
9 Protocol indicator:
When the register is enabled and the phone successfully

register to SIP server, this indicator is on;
When the register is enabled but the phone does not

successfully register to server, this indicator blinks;
When the register is disabled, this indicator is off.

10 Missed call indicator:
When there is a missed call, this indicator will be on, and it will
turn off when user checks the missed call information.
11 Voicemail indicator:
When there is a new voice mail, this indicator will be on, only after
all the voicemail have been checked, this indicator will turn off.
12 incoming call indicator
 When the phone is in standby without any incoming call, the
indicator is off.
 When there is a missed call, this indicator blinks;
 When there is an incoming call, this indicator blinks;
 When there is a new voicemail, the indicator blinks.
13 Monday to Sunday indicator :
The correct day will be on while others will be off.
14 This is the multi-function key
 In standby mode , press "Menu/Enter" to enter the Menu;
 In functional menu, press "Menu/Enter" to confirm selection.
15 Press "Info" to check network and registration status.
16 Press "Pbook" to enter the phone book and add or delete or edit.
17 Press "History" button to check call history including incoming
calls, outgoing calls and missed calls.
18 Exit button:
 When dialing , press "Exit" to delete the dialed number and so
user can dial a new number;
 In functional menu, press "Exit" to exit current menu and
return to the upper one.
19 conference key :
When user want to realize conference call, press "CONF" button
and key in the third part number.
20 Transfer key, when need to transfer the current call to others,
