AT810 Series User Manual
Humidity: 10 to 90% no dew


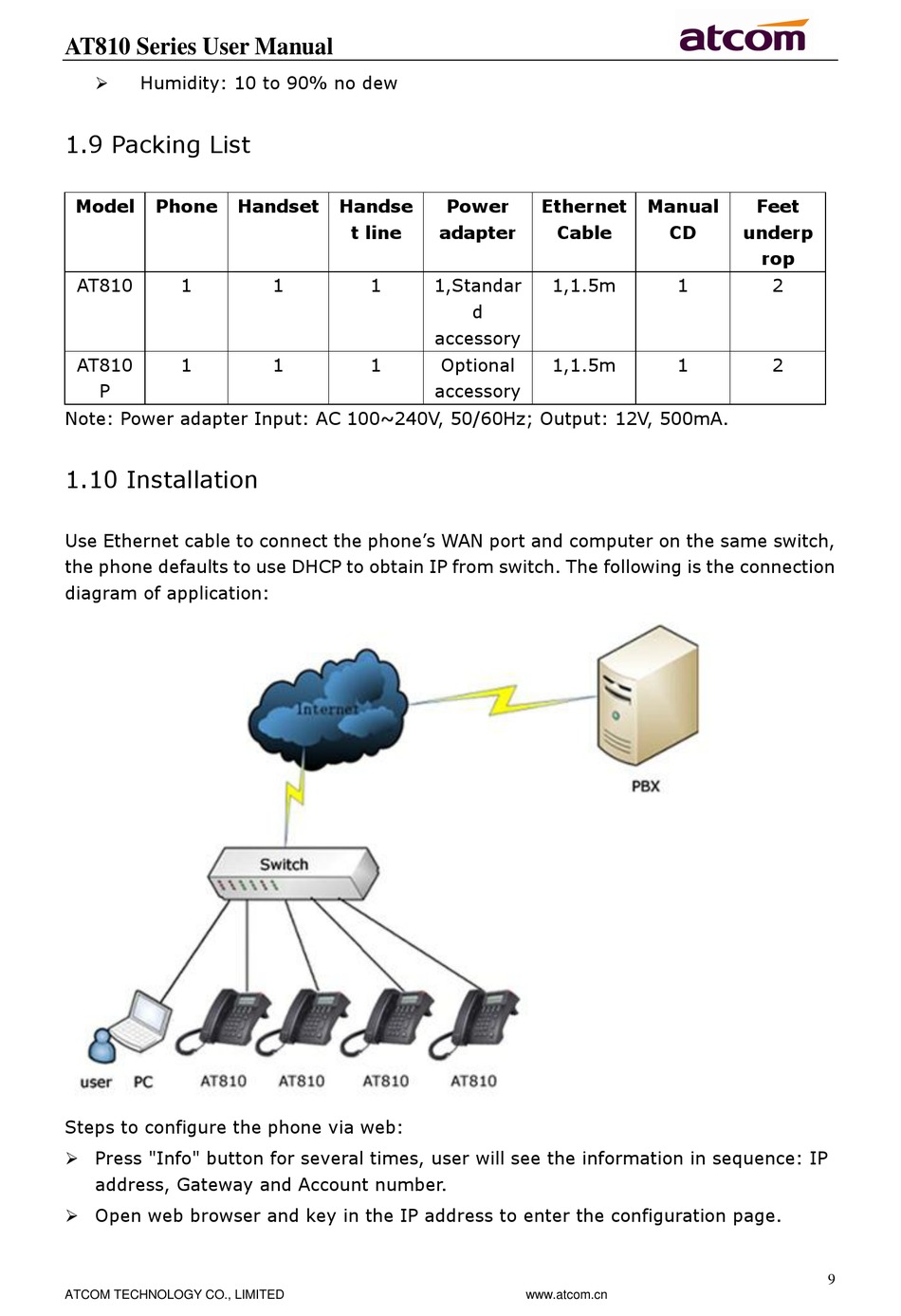

1.9 Packing List

Model Phone
AT810 1
AT810 1
P
Note: Power adapter Input: AC 100~240V, 50/60Hz; Output: 12V, 500mA.

1.10 Installation

Use Ethernet cable to connect the phone's WAN port and computer on the same switch,
the phone defaults to use DHCP to obtain IP from switch. The following is the connection
diagram of application:
Steps to configure the phone via web:
 Press "Info" button for several times, user will see the information in sequence: IP
address, Gateway and Account number.
 Open web browser and key in the IP address to enter the configuration page.
ATCOM TECHNOLOGY CO., LIMITED
Handset Handse
t line
1 1
1 1
Power Ethernet
adapter Cable
1,Standar 1,1.5m
d
accessory
Optional 1,1.5m
accessory
www.atcom.cn
Manual Feet
CD underp
rop
1 2
1 2
