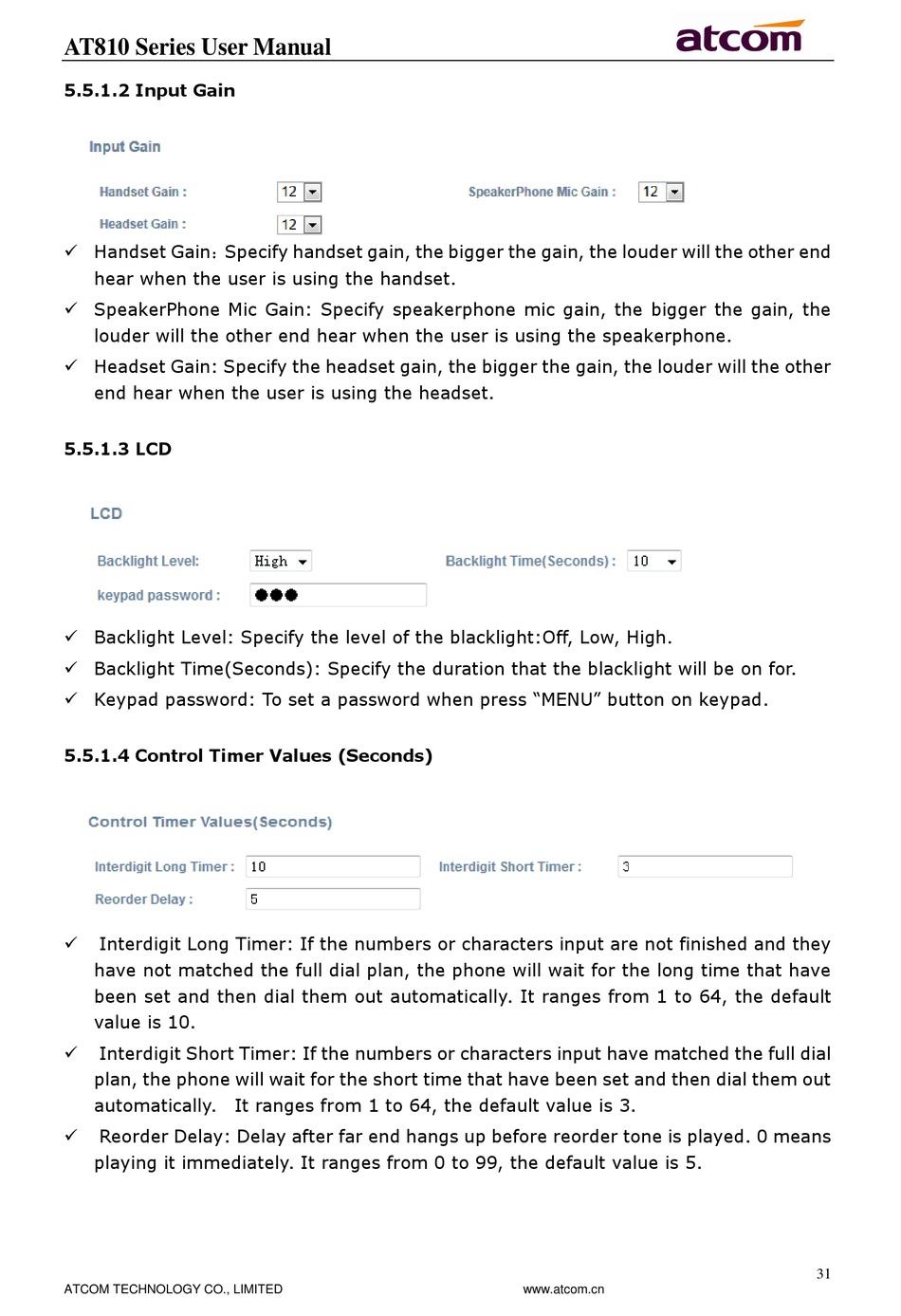

ATCOM at810 User Manual page 31

AT810 Series User Manual
5.5.1.2 Input Gain
 Handset Gain： Specify handset gain, the bigger the gain, the louder will the other end
hear when the user is using the handset.
 SpeakerPhone Mic Gain: Specify speakerphone mic gain, the bigger the gain, the
louder will the other end hear when the user is using the speakerphone.
 Headset Gain: Specify the headset gain, the bigger the gain, the louder will the other
end hear when the user is using the headset.
5.5.1.3 LCD
 Backlight Level: Specify the level of the blacklight:Off, Low, High.
 Backlight Time(Seconds): Specify the duration that the blacklight will be on for.
 Keypad password: To set a password when press "MENU" button on keypad.
5.5.1.4 Control Timer Values (Seconds)
Interdigit Long Timer: If the numbers or characters input are not finished and they

have not matched the full dial plan, the phone will wait for the long time that have
been set and then dial them out automatically. It ranges from 1 to 64, the default
value is 10.
Interdigit Short Timer: If the numbers or characters input have matched the full dial

plan, the phone will wait for the short time that have been set and then dial them out
automatically. It ranges from 1 to 64, the default value is 3.
Reorder Delay: Delay after far end hangs up before reorder tone is played. 0 means

playing it immediately. It ranges from 0 to 99, the default value is 5.
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
31
