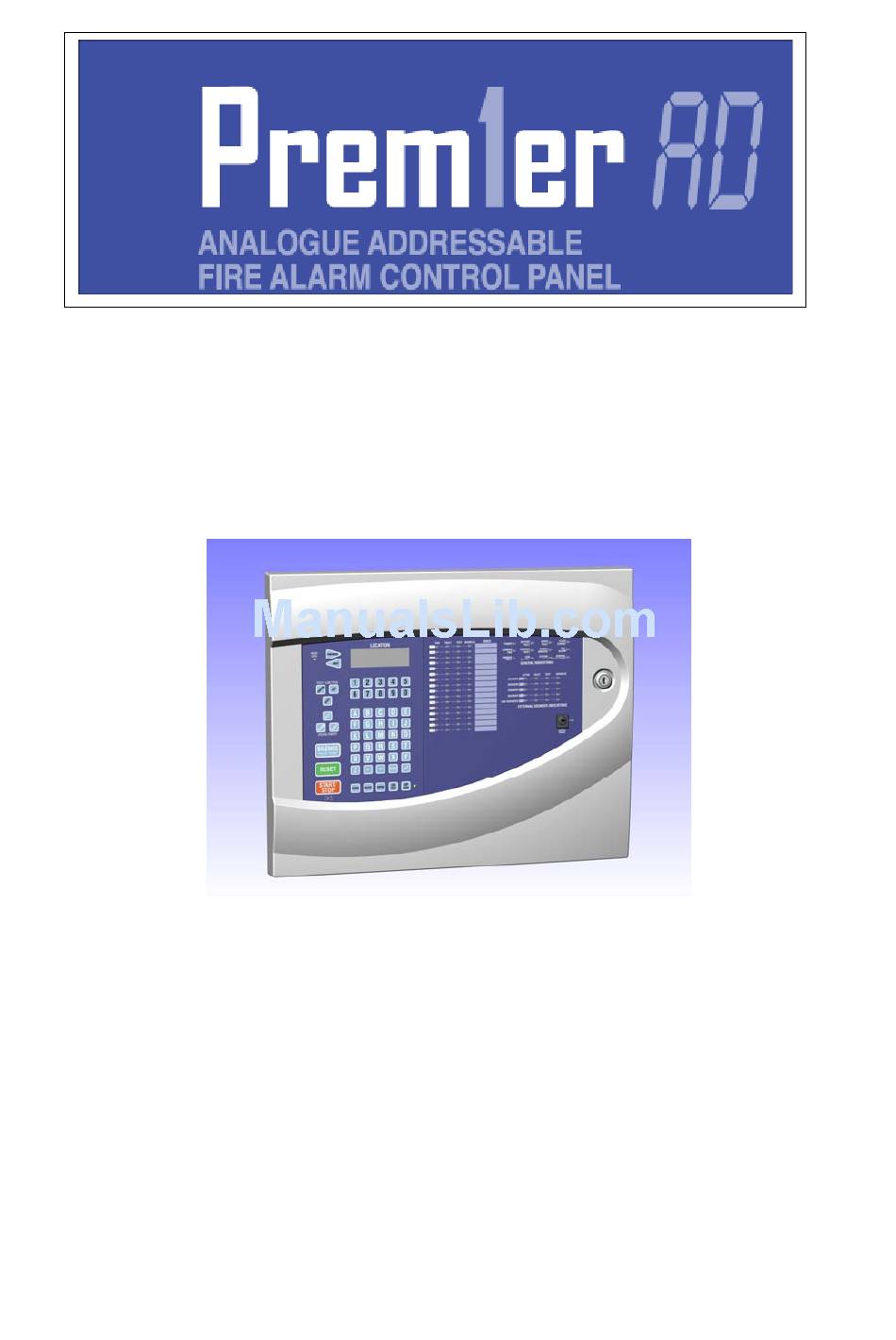

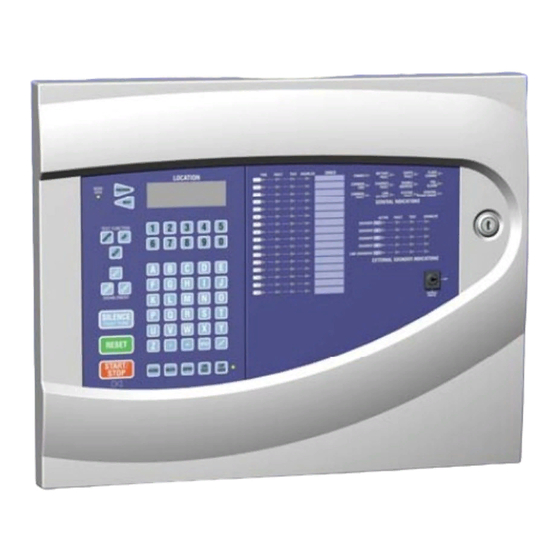

- Page 1 INSTALLATION MANUAL...
-
Page 2: Table Of Contents
PREMIER AD INSTALLATION MANUAL. Software Version :PANEL-R1578 & LOOP-R1062 CONTENTS 1.INTRODUCTION ........................................2 1.1 HANDLING THE PCBS ....................................2 1.2 USING THIS MANUAL ....................................2 1.3 ABOUT THE PREMIER AD FIRE ALARM PANEL & INTEGRAL PSE ......................2 1.4 DESIGNING THE SYSTEM..................................2 1.5 EQUIPMENT GUARANTEE .................................. -
Page 3: Introduction
PREMIER AD INSTALLATION MANUAL. Software Version :PANEL-R1578 & LOOP-R1062 1.INTRODUCTION THIS FIRE ALARM CONTROL PANEL IS CLASS 1 EQUIPMENT AND MUST BE EARTHED This equipment must be installed and maintained by a qualified and technically experienced person. 1.1 HANDLING THE PCBS If the PCBs are to be removed to ease fitting the enclosure and cables, care must be taken to avoid damage by static. -
Page 4: Premier Ad Overview
PREMIER AD INSTALLATION MANUAL. Software Version :PANEL-R1578 & LOOP-R1062 2.PREMIER AD OVERVIEW 2.1 PANEL DESCRIPTION & DESIGN CONCEPT The Premier AD is a 2-loop analogue addressable fire alarm control panel designed to EN54 part 2 & 4. It has 2 addressable loops, each capable of having 126 devices. The Premier AD has 4 conventional sounder circuits, which are always configured as common sounders. -
Page 5: Improvements From V1 Cpu Card
PREMIER AD INSTALLATION MANUAL. Software Version :PANEL-R1578 & LOOP-R1062 2.3 IMPROVEMENTS FROM V1 CPU CARD This version of the Premier AD has an upgraded CPU board to the previous version. The improvements include:- • Real time clock • Event Log (2048 events) •... - Page 6 PREMIER AD INSTALLATION MANUAL. Software Version :PANEL-R1578 & LOOP-R1062 The main disadvantage of this method of zone allocation is the maximum zone capacity of 16 devices If a zone has more than 16 devices it will need to be split into smaller zones. Similarly, a zone with only one device would leave 15 empty addresses on that zone.
-
Page 7: First Fix
PREMIER AD INSTALLATION MANUAL. Software Version :PANEL-R1578 & LOOP-R1062 4. FIRST FIX 4.1 Mounting the Control Panel The control panel should be installed in accordance with the following recommendations:- • The panel should be close to the main entrance of the building, so that it can be viewed by any fire-fighting personnel entering the building. -
Page 8: Mounting The Fire Alarm Panel
PREMIER AD INSTALLATION MANUAL. Software Version :PANEL-R1578 & LOOP-R1062 5. MOUNTING THE FIRE ALARM PANEL The Premier AD comes with many cable entry holes. If another entry hole is required, it is strongly recommended that the panels door be removed to avoid accidental damage. Also, the termination PCB should be removed and stored in a safe place. -
Page 9: Connecting Mains & Battery Power
PREMIER AD INSTALLATION MANUAL. Software Version :PANEL-R1578 & LOOP-R1062 6 CONNECTING MAINS & BATTERY POWER 6.1 CONNECTING THE MAINS POWER The panel should be connected to 220-240V AC by a 3A INLET MAINS rated spur to the fuse box with 1mm to 2.5mm 3-core cable. -
Page 10: Addressable Loop Wiring
PREMIER AD INSTALLATION MANUAL. Software:PANEL:R1107 & LOOP:R1062 7 ADDRESSABLE LOOP WIRING The Premier AD comes with two addressable loops. Addressable detectors, addressable call points, addressable loop powered sounders and several other interface units can be connected to these loops. A MAXIMUM OF 126 DEVICES CAN BE CONNECTED TO EACH LOOP. -
Page 11: Specific Device Wiring Instructions
PREMIER AD INSTALLATION MANUAL. Software:PANEL:R1107 & LOOP:R1062 7.1 SPECIFIC DEVICE WIRING INSTRUCTIONS Fyreye Common Base Fyreye Addressable Detector Relay Base FE-CB FEA-RB 80-050 80-080 LOOP - IN LOOP - OUT LOOP - IN LOOP - OUT RELAY OUTPUT LOOP + IN LOOP + OUT LOOP + IN LOOP + OUT... -
Page 12: List Of Compatible Equipment
PREMIER AD INSTALLATION MANUAL. Software:PANEL:R1107 & LOOP:R1062 Zeta Input Unit Zeta Input Output Unit ZIOU 48-100 48-105 47K EOL 0.5W 47K EOL 0.5W LOOP - IN LOOP - OUT LOOP + IN LOOP + OUT LOOP - IN LOOP - OUT LOOP + IN LOOP + OUT Zeta Sounder Controller Circuit... -
Page 13: Maximum Loop Length Recommendations
PREMIER AD INSTALLATION MANUAL. Software:PANEL:R1107 & LOOP:R1062 48-110 ZSCC Zeta Sounder Control Module 48-115 ZT-ZM Zeta Zone Monitor Unit (Loop Powered) 42-007 ZAMT Zeta Addressable Maxitone Sounder 42-060 ZAMDD Zeta Addressable Miditone Sounder 42-062 ZAMDF Zeta Addressable Miditone Sounder with LED Flasher 42-030 ZAST Zeta Addressable Securetone Sounder... -
Page 14: Address - Zone Table
PREMIER AD INSTALLATION MANUAL. Software:PANEL:R1107 & LOOP:R1062 7.5 ADDRESS - ZONE TABLE On the Premier AD, each available address corresponds to a zone, with 1-16 being in zone 1, 17-32 being in zone 2, 33-48 in zone 3 etc. The table below shows the dip switch settings for each address, and the zone that address will be in. -
Page 15: Dip Switch Address Settings - Full Table
PREMIER AD INSTALLATION MANUAL. Software:PANEL:R1107 & LOOP:R1062 7.6 DIP SWITCH ADDRESS SETTINGS - FULL TABLE ADDRESS SWITCHES ADDRESS SWITCHES ADDRESS SWITCHES ADDRESS SWITCHES 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7 n o t u s e d... -
Page 16: Sounders
PREMIER AD INSTALLATION MANUAL. Software:PANEL:R1107 & LOOP:R1062 8 SOUNDERS 8.1 CONVENTIONAL SOUNDER CIRCUIT WIRING DIAGRAM SND+ SND- SOUNDER SOUNDER SOUNDER SOUNDER End of Line Resistor Note: If non-polarised alarm devices (eg some types of old mechanical bell, or a relay) are used, then a diode will have to be placed in line with the device to enable fault monitoring. -
Page 17: Auxiliary Inputs & Outputs
PREMIER AD INSTALLATION MANUAL. Software:PANEL:R1107 & LOOP:R1062 Addressable No Extra Cabling Tends to be more expensive Sounders can be configured as zonal Maximum 32 per loop for quick start/stop Quiescent current high Uses device address. Associated No Extra Cabling 4-8 second start & stop time. (sounder- Doesn’t occupy Device Address Always configured as common sounders... -
Page 18: Field Device Termination
PREMIER AD INSTALLATION MANUAL. Software:PANEL:R1107 & LOOP:R1062 10. FIELD DEVICE TERMINATION 10.1 TERMINATING THE WIRING. INLET MAINS SUPPLY Brass Glands All cables entering the enclosure should have brass cable glands, which will ensure a good ground to the steel EMC cable grounding plate. LO OP 1A SND 1 LO OP 1B... -
Page 19: Configuring The Premier Ad Fire Alarm Panel
PREMIER AD INSTALLATION MANUAL. Software:PANEL:R1107 & LOOP:R1062 12. CONFIGURING THE PREMIER AD FIRE ALARM PANEL 12.1 CONFIGURING THE LOOPS 1 After the system has been installed, and the cabling Fire Alarm Panel checked and the addresses of each device set, connect To EN54 pt2 &... -
Page 20: Configuring The Sounder Bases
PREMIER AD INSTALLATION MANUAL. Software:PANEL:R1107 & LOOP:R1062 caps lock as necessary. 10. Press enter when the label has been entered. Optical Analog: Normal Fl 3 Bedroom 303 Zone:01 Lp:1 Ad:016 Enter Loop Address 11. To skip many addresses, or to change loop, it is possible to select the next loop and address to edit. -
Page 21: Viewing Device Status
PREMIER AD INSTALLATION MANUAL. Software:PANEL:R1107 & LOOP:R1062 12.5 VIEWING DEVICE STATUS On the Premier AD, all loop devices can be viewed from Configuration Menu 1, or viewed & edited from Configuration Menu 2. Enter configuration menu 2 as described above, and select option 5 (Edit Device) Optical The following screen is shown Analog:... -
Page 22: Locate Or Verify A Device
PREMIER AD INSTALLATION MANUAL. Software:PANEL:R1107 & LOOP:R1062 Device Identification Optical This is the Zone, Loop and address of the device. This is Analog: Normal how the device will probably be referred to on the Fl 3 Bedroom 303 system drawings. Zone:01 Lp:1 Ad:016 12.6 LOCATE OR VERIFY A DEVICE... -
Page 23: Checking Software Version
PREMIER AD INSTALLATION MANUAL. Software:PANEL:R1107 & LOOP:R1062 The screen warns that this can not be undone. Press ENTer to Clear Event Log clear the event log, or any other button to cancel this screen. WARNING: This Action Note that when the event log is cleared, the EVENT NUMBER cannot be undone remains the same. -
Page 24: Disablement
PREMIER AD INSTALLATION MANUAL. Software:PANEL:R1107 & LOOP:R1062 13. DISABLEMENT On the Premier AD, there are 2 disablement options. A whole zone of detectors can be disabled, or an individual point can be disabled. Both types of disablement can be used at the same time if required. 13.1 ZONE DISABLEMENT To aid commissioning and assist routine maintenance checks, any of the zones or the sounder circuits can be disabled. -
Page 25: Viewing Disablements
PREMIER AD INSTALLATION MANUAL. Software:PANEL:R1107 & LOOP:R1062 press the disable button again. Note that the Zone disablement LED for this address will not light because this would suggest that the whole zone is disabled, so would be misleading. 13.4 VIEWING DISABLEMENTS There are two ways to check for disablements: from the Disablement screen, or from the device status screen. -
Page 26: Test Mode
PREMIER AD INSTALLATION MANUAL. Software:PANEL:R1107 & LOOP:R1062 14. TEST MODE 14.1 WHY USE TEST MODE To aid commissioning and assist routine maintenance check, a non-latching ‘one man test’ facility is available. When a detector or manual call point is triggered on any zone in Test, the Alarm sounders operate for approximately eight seconds on and four seconds off. -
Page 27: General Fault Finding
PREMIER AD INSTALLATION MANUAL. Software:PANEL:R1107 & LOOP:R1062 15. GENERAL FAULT FINDING On the Premier AD panel, Faults are divided into 2 types, “Faults” and “Device Faults”. Device Faults are any fault associated with a particular address on the loop. Faults is everything else, EG sounder circuits, power supply etc. -
Page 28: Supply Faults
PREMIER AD INSTALLATION MANUAL. Software:PANEL:R1107 & LOOP:R1062 Check that the base contacts are clean and free from dirt & corrosion If possible, try a replacement head (remembering to set the correct address) 15.4 SUPPLY FAULTS FAULT a. BATTERY FAULT 1 of 1 Loss of Battery power –... -
Page 29: Pre-Alarm
PREMIER AD INSTALLATION MANUAL. Software:PANEL:R1107 & LOOP:R1062 15.8 PRE-ALARM This is not a fault condition. The panel has detected a high reading from one of the devices on the loop. This could be caused by a fire starting (in which case it acts as an early warning), or it could be caused by a contaminated head. -
Page 30: Standby Battery Requirements
PREMIER AD INSTALLATION MANUAL. Software:PANEL:R1107 & LOOP:R1062 16. STANDBY BATTERY REQUIREMENTS The Following Table shows the Quiescent, Fault & alarm currents of the main parts of a Premier AD Fire Alarm System Device Product Code (mA) (mA) (mA) Loop System PREMIER AD FIRE ALARM CONTROL PANEL NPAD PREMIER AD REPEATER PANEL... -
Page 31: Standby Battery Calculation
PREMIER AD INSTALLATION MANUAL. Software:PANEL:R1107 & LOOP:R1062 16.1 STANDBY BATTERY CALCULATION In order to calculate the standby battery size required, the following formula can be used:- Battery Size (Standby time in Amp Hours) = 1.25 x [(T ) + (T x (I Where: = Maximum time in hours required for the alarm [½... -
Page 32: Pcb Termination Connections
PREMIER AD INSTALLATION MANUAL. Software:PANEL:R1107 & LOOP:R1062 17. PCB TERMINATION CONNECTIONS. LOOP 1A SND 1 LOOP 1B SND 2 LOOP 2A SND 3 LOOP 2B SND 4 FIRE RELAY FAULT RELAY CLASS CH SERIAL REPAETER AUX SUP NO CM NC NO CM NC CONN19 CONN12 CONN20 CONN13 CONN21 CONN14 CONN22 CONN18 CONN15 CONN16 CONN17 CONN28 CONN24 CONN25 CONN23... -
Page 33: Panel Specifications
PREMIER AD INSTALLATION MANUAL. Software:PANEL:R1107 & LOOP:R1062 17. PANEL SPECIFICATIONS 17.1 ENCLOSURE SPECIFICATIONS DESCRIPTION VALUE ENCLOSURE SIZE 480 x 395 x 100 mm TOP CABLE ENTRIES 20 x 19mm DIA GROMMETED ENTRIES BOTTOM CABLE ENTRIES 10 x 19mm KNOCKOUT ENTRIES REAR CABLE ENTRIES 2 SNAP OUTS, 60 x 20mm 17.2 ELECTRICAL SPECIFICATIONS...
