Summary of Contents for Zeta GSM-COM

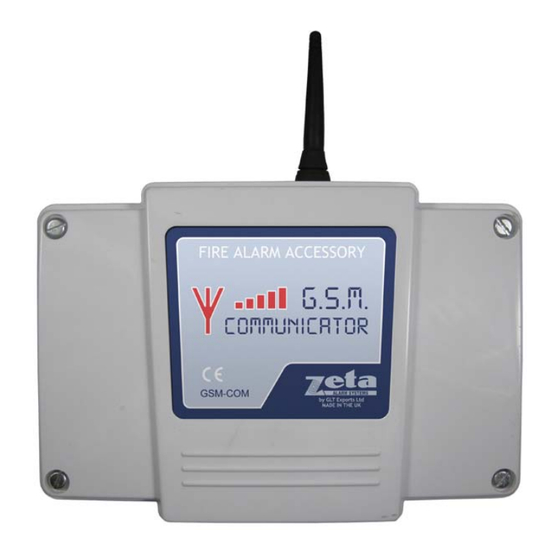

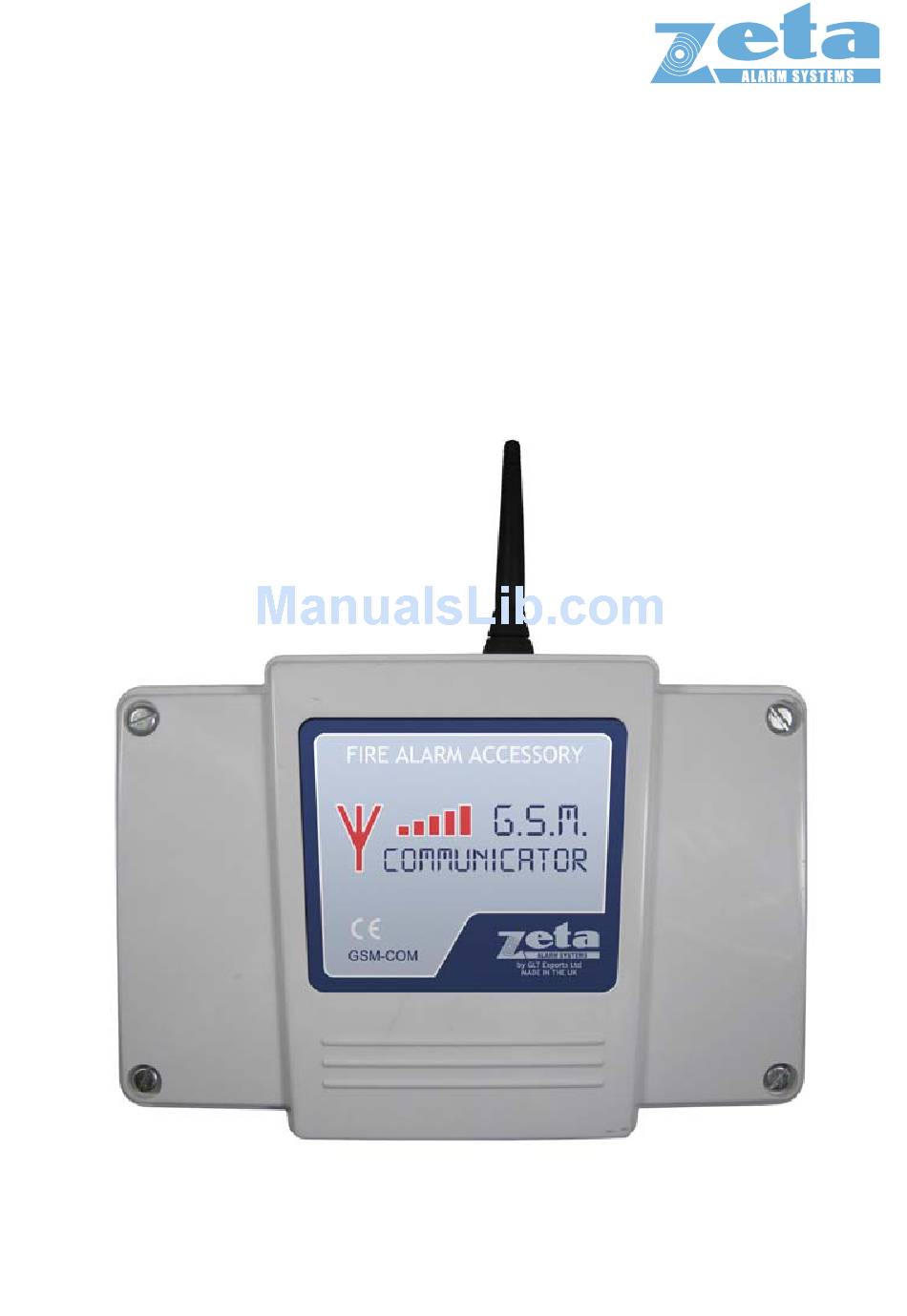

- Page 1 GSM-COM INSTALLATION AND APPLICATION MANUAL for module version v1.00 and higher...
-
Page 2: Table Of Contents
Table of contents 1 Module operation..........................3 1.1 Functions ..........................3 1.2 Features..........................3 1.3 Events..........................3 1.4 Functions and parameters ....................4 2 Programming..........................5 2.1 Adjustable parameters ......................5 2.2 Program menu structure ......................6 2.3 Structure of SMS containing settings ...................7 3 Module overview ..........................7 4 LED signals ..........................8 5 Wiring diagram ..........................8 6 Installation guide ..........................9... -
Page 3: Module Operation
1 Module operation Application areas: can be used as accessory for alarm control panels or as individual GSM signaling device with 2 inputs. 1.1 Functions • GSM voice call to 4 user phone numbers on input activation with recordable message or siren tone •... -
Page 4: Functions And Parameters
1.4 Functions and parameters • Inputs module has 2 inputs (IN1 and IN2), which can be activated depending on the setting with normally open (NO) or normally closed (NC) contacts wired to COM connection point. Sensitivity of inputs is 100ms, which means event is generated only if the input is activated for at least 100ms. -
Page 5: Programming
• User account ID The user account ID is a 4 digit identifier which is necessary for reporting to monitoring station and is supplied by the monitoring station. The module supports only decimal characters. Default setting: 0000. • Recordable voice messages For each of the two inputs a voice message can be recorded with a maximum length of 6 seconds each. -
Page 6: Program Menu Structure
2.2 Program menu structure Button 1: User phone number settings Button 1: Enter first user phone number Button 1: Enable confirmation request Button 0: Disable confirmation request Button 2: Enter second user phone number Button 1: Enable confirmation request Button 0: Disable confirmation request Button 3: Enter third user phone number Button 1: Enable confirmation request Button 0: Disable confirmation request... -
Page 7: Structure Of Sms Containing Settings
2.3 Structure of SMS containing settings The module can send current settings in SMS (see item 6/1. of the programming menu). The settings are sent in 2 SMS messages, having the following structure: Example: GSM settings (1): TEL1=06301111111/Y (TEL1…TEL4 = the 4 adjustable user phone numbers, after TEL2=06302222222/Y the phone numbers the confirmation setting can be found) TEL3=06203333333/N... -
Page 8: Led Signals
4 LED signals No GSM network available, or phone Red is continuously lit restart/power up in progress Red blinks fast Event transmission in progress Green blinks with longer intervals Green blinks impulsely, GSM network is available, Red is not lit standby status Green performs a determined number of GSM signal strength query... -
Page 9: Installation Guide
6 Installation guide 6.1 Mounting • Test the GSM signal strength with your mobile phone. It may happen that the signal strength is not sufficient in the desired mounting place. In this case the planned installation place can be changed before mounting the device. •...
