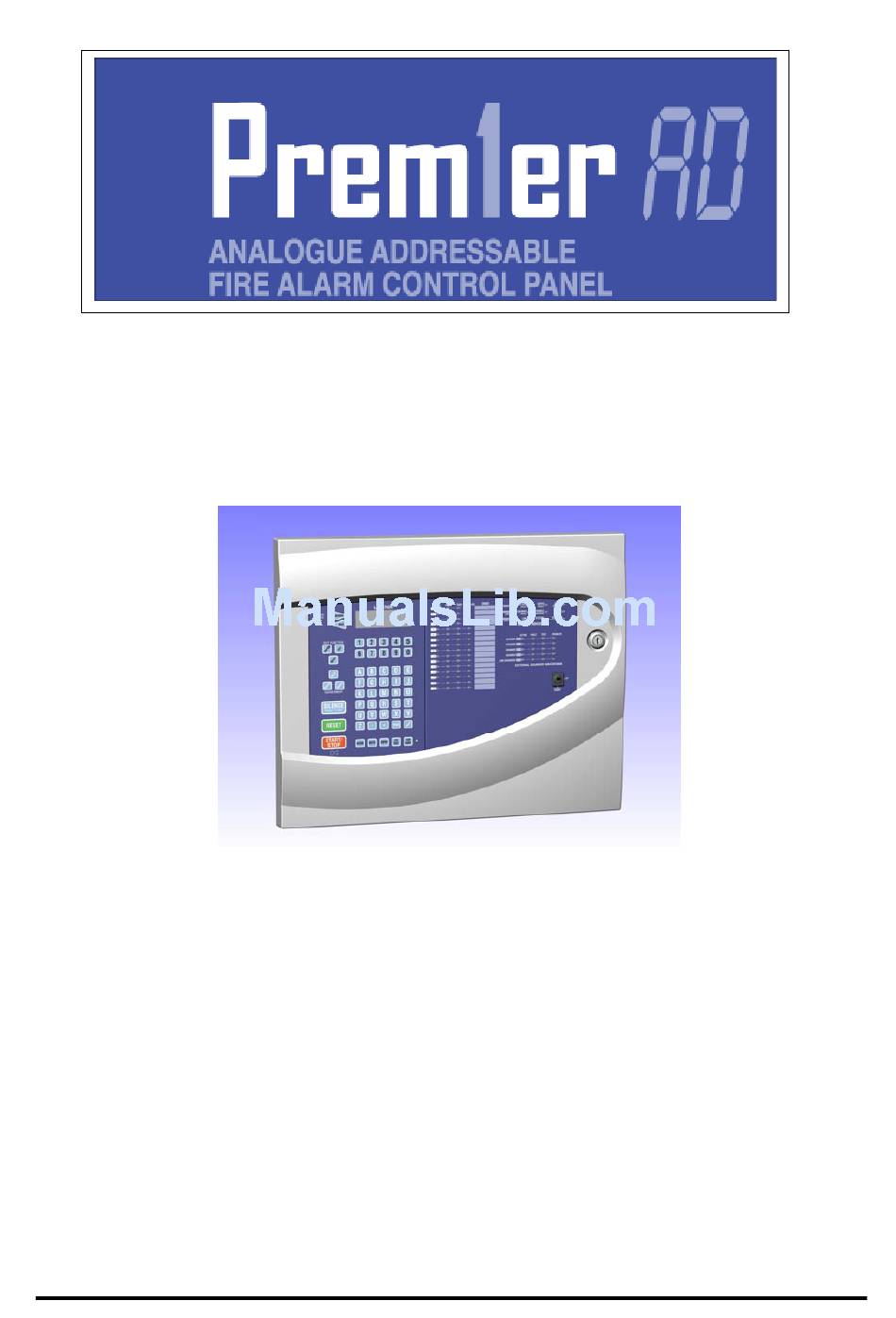

- Page 1 USER MANUAL , MAINTENANCE GUIDE & LOG BOOK...
-
Page 2: Table Of Contents
PREMIER AD USER MANUAL, MAINTENANCE GUIDE & LOG BOOK CONTENTS What to do if the Fire Alarm Panel shows an Alarm (Red LED) ............2 What to do if the Fire Alarm Panel shows a Fault (Yellow LED) ............2 1. -
Page 3: What To Do If The Fire Alarm Panel Shows An Alarm (Red Led)
PREMIER AD USER MANUAL, MAINTENANCE GUIDE & LOG BOOK What to do if the Fire Alarm Panel shows an Alarm (Red LED) Write down the LCD reading and which LEDs are lit (either in the log book, or on a piece of paper for transferring to the log book later) Follow the building procedures for fire alarm activation. -
Page 4: Fire Alarm Control Panel Safety Issues
PREMIER AD USER MANUAL, MAINTENANCE GUIDE & LOG BOOK 1. FIRE ALARM CONTROL PANEL SAFETY ISSUES There is no need to open this fire alarm during normal operation. Any work carried out on this system must be performed by a competent person who is familiar with this type of system. This equipment will operate safely provided it has been installed correctly in compliance with the Installation Manual. -
Page 5: User Responsibilities & Maintainence Of The Fire Alarm System, Including The Facp & Its Integral Pse
PREMIER AD USER MANUAL, MAINTENANCE GUIDE & LOG BOOK 3. USER RESPONSIBILITIES & MAINTAINENCE OF THE FIRE ALARM SYSTEM, INCLUDING THE FACP & ITS INTEGRAL PSE According to the British Standard Code for Fire Detection and Alarm Systems for Commercial Buildings (BS5839: Pt 1: 2002), the owner or person having control of the premises should appoint a responsible person to oversee the effective operation of the Fire Alarm System (Clause 47.1). -
Page 6: Panel Indications & Controls
PREMIER AD USER MANUAL, MAINTENANCE GUIDE & LOG BOOK 4. PANEL INDICATIONS & CONTROLS 4.1 INDICATIONS The Premier AD has been designed to be as straight forward as possible. To help achieve this it has been designed so that its LEDs are the primary display. -
Page 7: Access Levels
PREMIER AD USER MANUAL, MAINTENANCE GUIDE & LOG BOOK 4.3 ACCESS LEVELS The Premier AD has the following access levels QUIESCENT STATE When the Panel is in its Normal state, the indicator lights on the front of the enclosure give a comprehensive overview of the System’s current status. -
Page 8: The Fire Condition
PREMIER AD USER MANUAL, MAINTENANCE GUIDE & LOG BOOK 5. THE FIRE CONDITION 5.1 HOW THE PREMIER AD INDICATES AN ALARM When the Premier AD Fire Alarm Panel is set into alarm by a Detector or Manual Call Point located in a zone that is not already in alarm it will: - •... -
Page 9: The Fault Condition
PREMIER AD USER MANUAL, MAINTENANCE GUIDE & LOG BOOK 6. THE FAULT CONDITION 6.1 DIFFERENT TYPES OF FAULT The fire alarm monitors itself, and any equipment connected to it, for any faults that can occur. If a fault occurs, the Panel responds by activating its Internal buzzer and lighting the General Fault light and any other Fault light(s) relevant to the particular fault. -
Page 10: What To Do If A Fault Condition Occurs
PREMIER AD USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Earth Fault The Earth Fault LED lights when the panel detects an earth fault (short circuit to earth) on the wiring to any part of the control panel. The panel will function correctly with a single earth fault, but if a second fault occurs it could damage the panel. -
Page 11: Disablements
PREMIER AD USER MANUAL, MAINTENANCE GUIDE & LOG BOOK 7. DISABLEMENTS 7.1 REASONS FOR DISABLING CERTAIN PARTS OF A FIRE ALARM SYSTEM. Certain parts of this Fire Alarm Panel can be temporarily disabled (i.e. switched off) to suit prevailing conditions. For example, if there is a risk of a False Alarm in a zone, for example, from vehicle exhaust smoke in a loading bay, it is possible for the user to disable that zone during the risk period and then enable it again afterwards. -
Page 12: System Description
PREMIER AD USER MANUAL, MAINTENANCE GUIDE & LOG BOOK 8. SYSTEM DESCRIPTION FIRE ALARM SYSTEM SUMMARY: FIRE ZONE INFORMATION ZONE ZONE DESCRIPTION NUMBER A brief description of all the rooms and areas contained in each zone SNDR HEADS Sounder SOUNDER CIRCUIT DESCRIPTION Circuit A brief description of all the rooms and areas contained in each circuit SNDR... -
Page 13: Detailed Loop Contents
PREMIER AD USER MANUAL, MAINTENANCE GUIDE & LOG BOOK DETAILED LOOP CONTENTS This must be fully recorded by an authorised Engineer before system handover INSTALLATION LOCATION: LOOP 1 ADDR ZONE TYPE LABEL ADDR ZONE TYPE LABEL ADDR ZONE TYPE LABEL Pre-Commissioning Cable Checks +ve in to +ve out less than 24 ohms -ve in to -ve out less than 24 ohms... - Page 14 PREMIER AD USER MANUAL, MAINTENANCE GUIDE & LOG BOOK This must be fully recorded by an authorised Engineer before system handover INSTALLATION LOCATION: LOOP 2 ADDR ZONE TYPE LABEL ADDR ZONE TYPE LABEL ADDR ZONE TYPE LABEL Pre-Commissioning Cable Checks +ve in to +ve out less than 24 ohms -ve in to -ve out less than 24 ohms +ve to –ve greater than 500k ohm...
-
Page 15: Fire Alarm Log Book
PREMIER AD USER MANUAL, MAINTENANCE GUIDE & LOG BOOK 10. FIRE ALARM LOG BOOK It is recommended that this LOG BOOK section of the Manual be maintained by the responsible person(s) on site, who should ensure every event is properly recorded (including fire alarm conditions, failures, tests, temporary disconnections, disablements, enablements, dates of installing engineers’... -
Page 16: Maintenance Work
PREMIER AD USER MANUAL, MAINTENANCE GUIDE & LOG BOOK MAINTENANCE WORK DATE TIME LOOP & ZONE / LOCATION REASON FOR WORK WORK CARRIED OUT ADDITIONAL WORK SIGNED ADDRESS REQUIRED PAGE 15 Approved Document No: GLT.MAN-106A Issue: 2.00 Authorised: GH Date: 16/07/2007... -
Page 17: False Alarms
PREMIER AD USER MANUAL, MAINTENANCE GUIDE & LOG BOOK FALSE ALARMS DATE TIME LOOP & ZONE / CAUSE (IF KNOWN) MAINTENANCE MAINTENANCE CATEGORY FURTHER SIGNED ADDRESS LOCATION OR ACTIVITIES IN VISIT NEEDED FINDINGS OF FALSE ACTION ALARM AREA (YES/NO) ALARM REQUIRED PAGE 16 Approved Document No: GLT.MAN-106A... -
Page 18: All Events Other Than Maintenance Work Or False Alarms
PREMIER AD USER MANUAL, MAINTENANCE GUIDE & LOG BOOK ALL EVENTS OTHER THAN MAINTENANCE WORK OR FALSE ALARMS DATE TIME LOOP & ZONE / LOCATION DETAILS OF EVENT ACTION DATE INITIALS ADDRESS (INCLUDING CAUSE IF KNOWN) REQUIRED COMPLETED PAGE 17 Approved Document No: GLT.MAN-106A Issue: 2.00 Authorised: GH... -
Page 19: Commissioning The System, Including P.s.e
PREMIER AD USER MANUAL, MAINTENANCE GUIDE & LOG BOOK 11 COMMISSIONING THE SYSTEM, INCLUDING P.S.E. • The commissioning of this fire alarm system should be performed by a qualified commissioning engineer, who has an understanding of sections 2,3,& 4 of BS5839 pt 1:2002 (i.e. Design considerations, Limitations of false alarms, Installation recommendations) •... -
Page 20: Design Certificate
PREMIER AD USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Design Certificate Certificate of Design for the Premier AD Fire Alarm System installed at: Address: I/we being the competent person(s) responsible (as indicated by my/our signatures below) for the design of the fire alarm system, particulars of which are set out below, CERTIFY that the said design for which I/we have been responsible complies to the best of my/our knowledge and belief with the recommendations of section 2 of BS 5839-1:2002 for the system category described below, except for the variations, if any, stated in this certificate... - Page 21 PREMIER AD USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Measures incorporated to limit false alarms. Account has to be taken of the guidance contained in section 3 of BS 5839-1: 2002 and, more specifically (tick as appropriate): The System is manual. Type & siting of manual call points takes account of the guidelines contained in section 3 of BS 5839-1 The system incorporates automatic fire detectors, and account has been taken of reasonably foreseeable causes of unwanted alarms, particularly in the selection and siting of detectors...
-
Page 22: Installation Certificate
PREMIER AD USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Installation Certificate Certificate of Installation for the Premier AD Fire Alarm System installed at: Address: I/we being the competent person(s) responsible (as indicated by my/our signatures below) for the installation of the fire alarm system, particulars of which are set out below, CERTIFY that the said installation for which I/we have been responsible complies to the best of my/our knowledge and belief with the specifications described below, and with the recommendations of BS5839-1:2002, except for the variations, if any, stated in this certificate... -
Page 23: Commissioning Certificate
PREMIER AD USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Commissioning Certificate Certificate of COMMISSIONING for the Premier AD Fire Alarm System installed at: Address: I/we being the competent person(s) responsible (as indicated by my/our signatures below) for the commissioning of the fire alarm system, particulars of which are set out below, CERTIFY that the said work for which I/we have been responsible complies to the best of my/our knowledge and belief with the recommendations of Clause 39 of BS5839-1:2002, except for the variations, if any, stated in this certificate Name (in block letters):... -
Page 24: Acceptance Certificate
PREMIER AD USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Acceptance Certificate Certificate of Acceptance for the Premier AD Fire Alarm System installed at: Address: I/we being the competent person(s) responsible (as indicated by my/our signatures below) for the acceptance of the fire alarm system, particulars of which are set out below, ACCEPT the system on behalf of: Name (in block letters): Position:...
