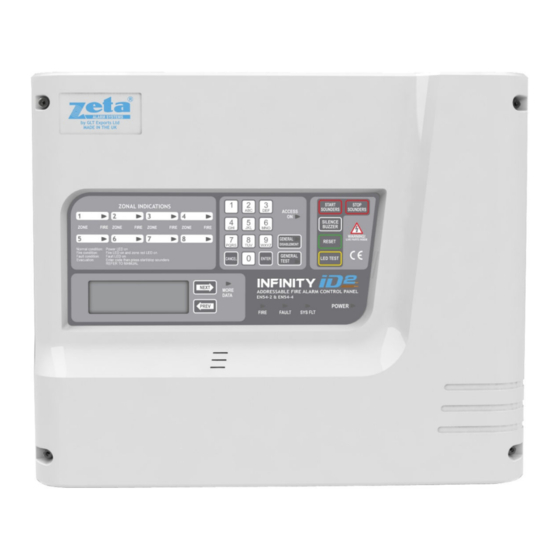

Zeta INFINITY ID2 User Manual, Maintenance Manual & Log Book
Intelligent 2 wire fire detection system with 'id' technology
Hide thumbs
Also See for INFINITY ID2:
- User manual (27 pages) ,
- Installation manual (45 pages) ,
- Installation manual (45 pages)
Table of Contents
Advertisement
Quick Links

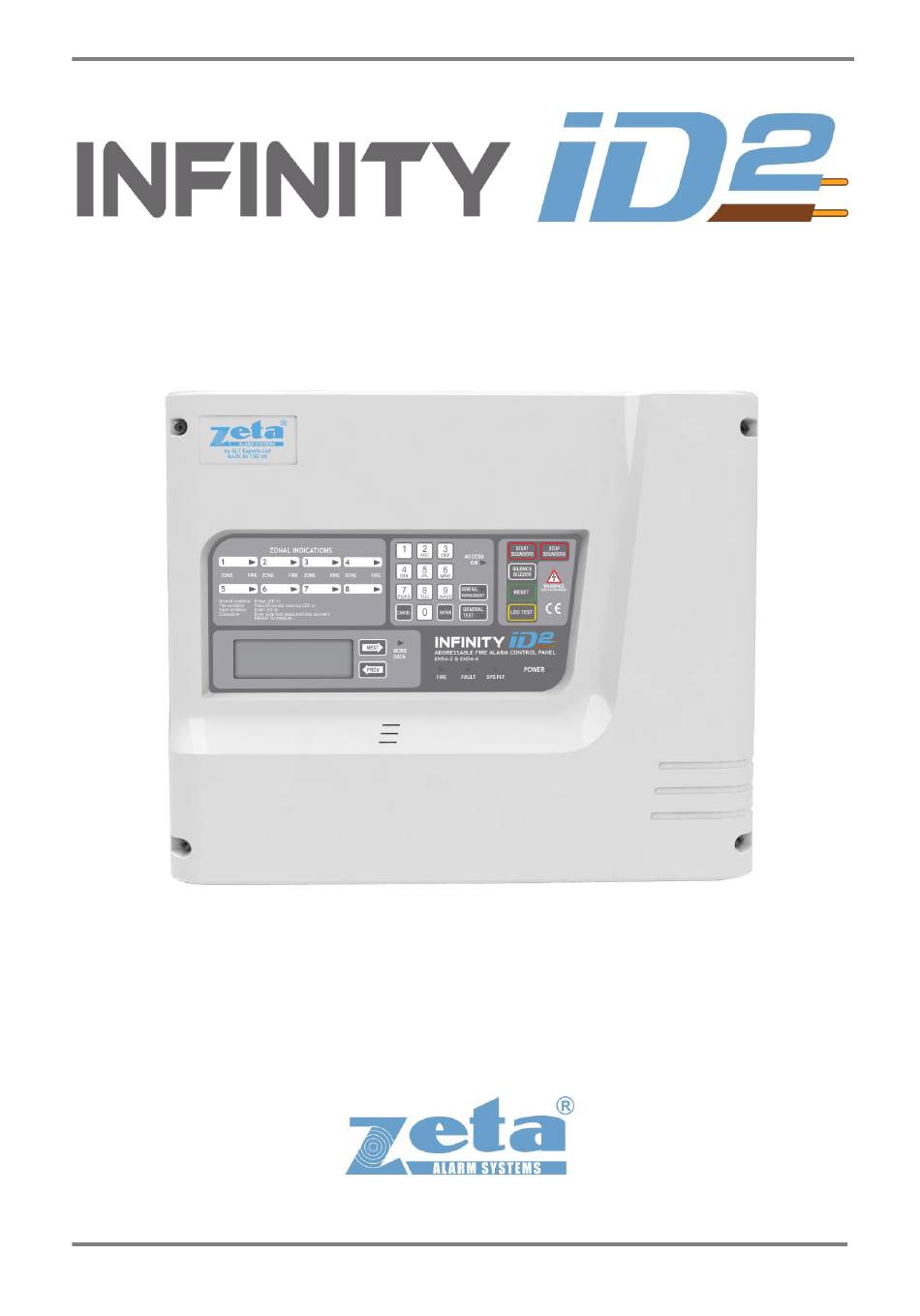

INFINITY ID2 USER MANUAL, MAINTENANCE GUIDE & LOG BOOK
INTELLIGENT 2 WIRE FIRE DETECTION SYSTEM WITH
USER MANUAL, MAINTENANCE
GUIDE & LOG BOOK
Approved Document No: GLT2-211-7-2
Issue 1.00
Author: NRPJ
www.acornfiresecurity.com
'ID' TECHNOLOGY
Date: 23/1/2013
www.acornfiresecurity.com
Software Versions: PANEL 0.X – R8629 & LOOP 0.J-R624
PAGE 0
Advertisement
Table of Contents
Related Manuals for Zeta INFINITY ID2
Summary of Contents for Zeta INFINITY ID2
- Page 1 INFINITY ID2 USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Software Versions: PANEL 0.X – R8629 & LOOP 0.J-R624 INTELLIGENT 2 WIRE FIRE DETECTION SYSTEM WITH ‘ID’ TECHNOLOGY USER MANUAL, MAINTENANCE GUIDE & LOG BOOK PAGE 0 Approved Document No: GLT2-211-7-2 Issue 1.00...
-
Page 2: Table Of Contents
INFINITY ID2 USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Software Versions: PANEL 0.X – R8629 & LOOP 0.J-R624 TABLE OF CONTENTS WHAT TO DO IF THE FIRE ALARM PANEL SHOWS AN ALARM (RED LED) ..........2 WHAT TO DO IF THE FIRE ALARM PANEL SHOWS A FAULT (YELLOW LED) ..........2 1. -
Page 3: What To Do If The Fire Alarm Panel Shows An Alarm (Red Led)
INFINITY ID2 USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Software Versions: PANEL 0.X – R8629 & LOOP 0.J-R624 WHAT TO DO IF THE FIRE ALARM PANEL SHOWS AN ALARM (RED LED) Write down the LCD reading and which LEDs are lit (either in the log book, or on a piece of paper for transferring to the log book later) Follow the building procedures for fire alarm activation. -
Page 4: Fire Alarm Control Panel Safety Issues
Power Supply Equipment- General Description. The Infinity ID2 has a switch mode power supply capable of supplying 1.2 amps in total. It contains a current limited output for charging sealed lead acid batteries (3.2 Ah maximum). The PSE is monitored for main supply failure, the battery not taking a charge and low battery voltage. -
Page 5: User Responsibilities & Maintainence Of The Fire Alarm System, Including The Facp & Its Integral Pse
11. In the event of a prealarm, determine the cause & take appropriate action (predetermined fire routine if the cause is the start of a fire, arrange maintenance if the cause is a contaminated detector head) (47.3) With the Infinity ID2 Fire Alarm Panel, we recommend the following tests are carried out: - Daily Inspection ... -
Page 6: Panel Indications & Controls
4.1 PANEL INDICATIONS The Infinity ID2 has been designed to be as straight forward as possible. To help achieve this it has been designed so that its LCD screen is the primary display. The display gives you more detailed information than is possible for simply using LEDs. -
Page 7: Checking The Panels Indication Leds
The LCD will show some configuration during the test 4.6 WHAT THE LEDS MEAN The LEDs on the Infinity ID2 give the following basic information: Zone RED – Indicate a Zone is in Fire ... -
Page 8: The Fire Condition
INFINITY ID2 USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Software Versions: PANEL 0.X – R8629 & LOOP 0.J-R624 5. THE FIRE CONDITION 5.1 HOW THE SIMPLICITY INDICATES AN ALARM When the Infinity ID2 Fire Alarm Panel is set into alarm by a Detector or... -
Page 9: The Fault Condition
INFINITY ID2 USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Software Versions: PANEL 0.X – R8629 & LOOP 0.J-R624 6. THE FAULT CONDITION 6.1 DIFFERENT TYPES OF FAULT The fire alarm monitors itself, and any equipment connected to it, for any faults that can occur. If a fault occurs, the Panel responds by activating its Internal buzzer and lighting the General Fault light and displaying the fault information on its LCD display. -
Page 10: What To Do If A Fault Condition Occurs
On the Infinity ID2 panel, the fault indications (except system fault) are non latching. That is, when the fault has been cleared, the fault indication will turn off. When all faults have been cleared, the panel will return to its quiescent (normal) condition. -
Page 11: Other Led Indications
INFINITY ID2 USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Software Versions: PANEL 0.X – R8629 & LOOP 0.J-R624 6.3 OTHER LED INDICATIONS DISABLEMENTS TEST MODE PAGE 10 Approved Document No: GLT2-211-7-2 Issue 1.00 Author: NRPJ Date: 23/1/2013 www.acornfiresecurity.com... -
Page 12: Disablements
INFINITY ID2 USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Software Versions: PANEL 0.X – R8629 & LOOP 0.J-R624 7. DISABLEMENTS 7.1 REASONS FOR DISABLING CERTAIN PARTS OF A FIRE ALARM SYSTEM Certain parts of this Fire Alarm Panel can be temporarily disabled (i.e. switched off) to suit prevailing conditions. For example, if there is a risk of a False Alarm in a zone, for example, from vehicle exhaust smoke in a loading bay, it is possible for the user to disable that zone during the risk period and then enable it again afterwards. -
Page 13: System Description
INFINITY ID2 USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Software Versions: PANEL 0.X – R8629 & LOOP 0.J-R624 8. SYSTEM DESCRIPTION FIRE ALARM SYSTEM SUMMARY FIRE ZONE INFORMATION ZONE DESCRIPTION ZONE NO. QTY SNDR QTY MCP QTY HEADS A brief description of all the rooms and areas contained in each zone. - Page 14 INFINITY ID2 USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Software Versions: PANEL 0.X – R8629 & LOOP 0.J-R624 DETAILED ZONE CONTENTS This must be fully recorded by an authorised Engineer before system handover. Description Description Description Zone 1 Zone 2...
-
Page 15: Fire Alarm Log Book
INFINITY ID2 USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Software Versions: PANEL 0.X – R8629 & LOOP 0.J-R624 9. FIRE ALARM LOG BOOK It is recommended that this LOG BOOK section of the Manual be maintained by the responsible person(s) on site, who should ensure every event is properly recorded (including fire alarm conditions, failures, tests, temporary disconnections, disablements, enablements, dates of installing engineers’... - Page 16 INFINITY ID2 USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Software Versions: PANEL 0.X – R8629 & LOOP 0.J-R624 MAINTENANCE WORK LOOP & ZONE/ ADDITIONAL WORK DATE TIME REASON FOR WORK WORK CARRIED OUT SIGNED ADDRESS LOCATION REQUIRED PAGE 15 Approved Document No: GLT2-211-7-2 Issue 1.00...
- Page 17 INFINITY ID2 USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Software Versions: PANEL 0.X – R8629 & LOOP 0.J-R624 MAINTENANCE WORK (CONTINUED) LOOP & ZONE/ ADDITIONAL WORK DATE TIME REASON FOR WORK WORK CARRIED OUT SIGNED ADDRESS LOCATION REQUIRED PAGE 16 Approved Document No: GLT2-211-7-2 Issue 1.00...
- Page 18 INFINITY ID2 USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Software Versions: PANEL 0.X – R8629 & LOOP 0.J-R624 UNWANTED (FALSE) ALARMS CAUSE (IF MAINTENANCE FURTHER LOOP & ZONE/ KNOWN) OR MAINTENAN CATEGORY OF DATE TIME VISIT NEEDED ACTION SIGNED...
- Page 19 INFINITY ID2 USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Software Versions: PANEL 0.X – R8629 & LOOP 0.J-R624 UNWANTED (FALSE) ALARMS (CONTINUED) CAUSE (IF MAINTENANCE FURTHER LOOP & ZONE/ KNOWN) OR MAINTENAN CATEGORY OF DATE TIME VISIT NEEDED ACTION...
- Page 20 INFINITY ID2 USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Software Versions: PANEL 0.X – R8629 & LOOP 0.J-R624 ALL EVENTS OTHER THAN MAINTENANCE WORK OR FALSE ALARMS DETAILS OF EVENT LOOP & ZONE/ DATE DATE TIME (INCLUDING CAUSE IF...
-
Page 21: All Events Other Than Maintenance Work Or False Alarms (Continued)
INFINITY ID2 USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Software Versions: PANEL 0.X – R8629 & LOOP 0.J-R624 ALL EVENTS OTHER THAN MAINTENANCE WORK OR FALSE ALARMS (CONTINUED) DETAILS OF EVENT LOOP & ZONE/ DATE DATE TIME (INCLUDING CAUSE IF... -
Page 22: Commissioning The System, Including Power Supply Equipment P.s.e
INFINITY ID2 USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Software Versions: PANEL 0.X – R8629 & LOOP 0.J-R624 10. COMMISSIONING THE SYSTEM, INCLUDING POWER SUPPLY EQUIPMENT P.S.E. The commissioning of this fire alarm system should be performed by a qualified commissioning engineer, who has an understanding of sections 2, 3, &... - Page 23 Software Versions: PANEL 0.X – R8629 & LOOP 0.J-R624 Design Certificate (Page 1 of 2) Certificate of DESIGN for the Infinity ID2 Fire Alarm System installed at: ADDRESS: I/we being the competent person(s) responsible (as indicated by my/our signatures below) for the design of...
- Page 24 INFINITY ID2 USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Software Versions: PANEL 0.X – R8629 & LOOP 0.J-R624 Design Certificate (Page 2 of 2) Measures incorporated to limit false alarms. Account has to be taken of the guidance contained in section 3 of BS 5839-1: 2002 and, more specifically (tick as appropriate): The System is manual.
- Page 25 INFINITY ID2 USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Software Versions: PANEL 0.X – R8629 & LOOP 0.J-R624 Installation Certificate Certificate of INSTALLATION for the Infinity ID2 Fire Alarm System installed at: ADDRESS: I/we being the competent person(s) responsible (as indicated by my/our signatures below) for the...
- Page 26 INFINITY ID2 USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Software Versions: PANEL 0.X – R8629 & LOOP 0.J-R624 Commissioning Certificate Certificate of COMMISSIONING for the Infinity ID2 Fire Alarm System installed at: ADDRESS: I/we being the competent person(s) responsible (as indicated by my/our signatures below) for the...
- Page 27 INFINITY ID2 USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Software Versions: PANEL 0.X – R8629 & LOOP 0.J-R624 Acceptance Certificate Certificate of ACCEPTANCE for the Infinity ID2 Fire Alarm System installed at: ADDRESS: I/we being the competent person(s) responsible (as indicated by my/our signatures below) for the...
