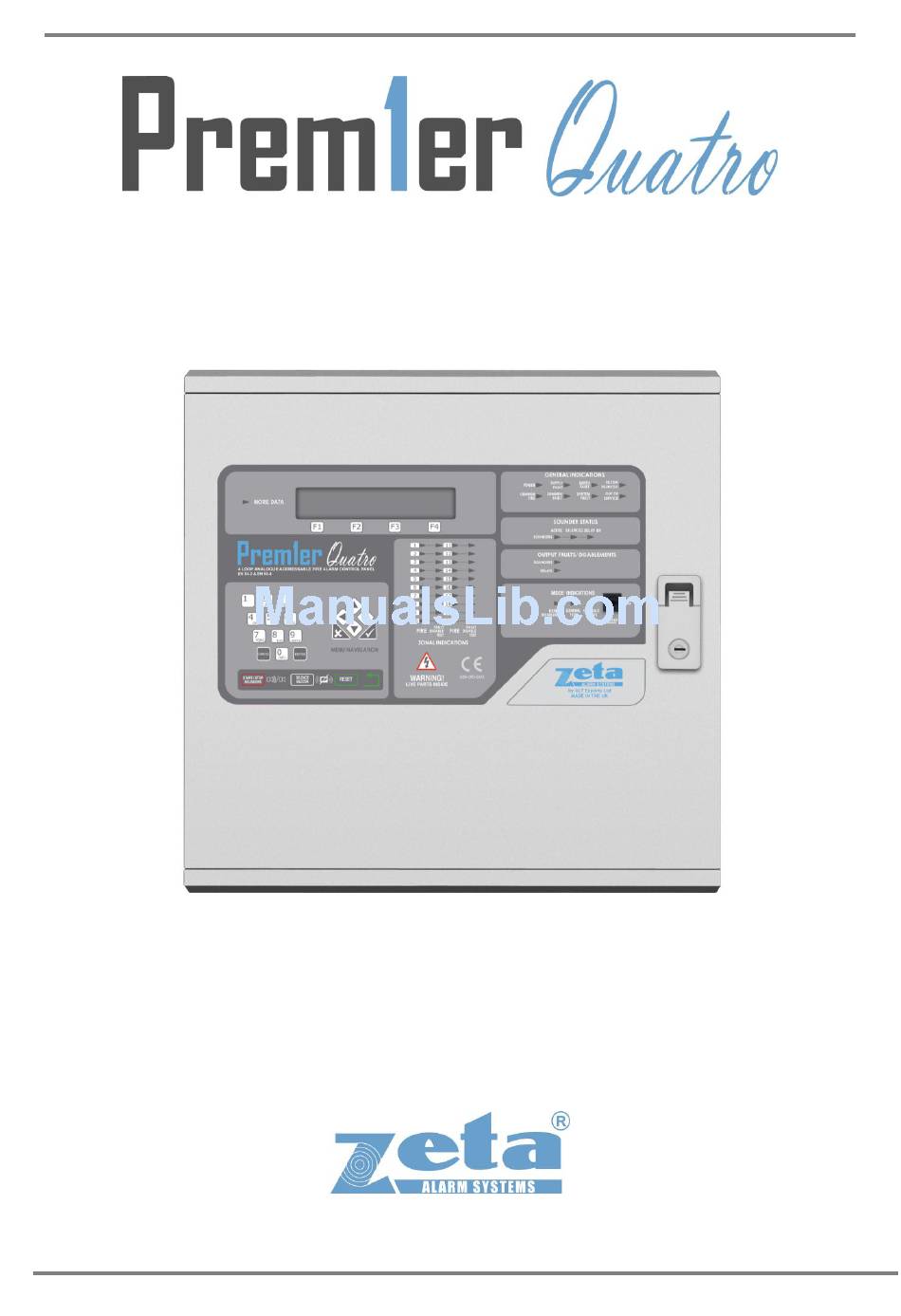

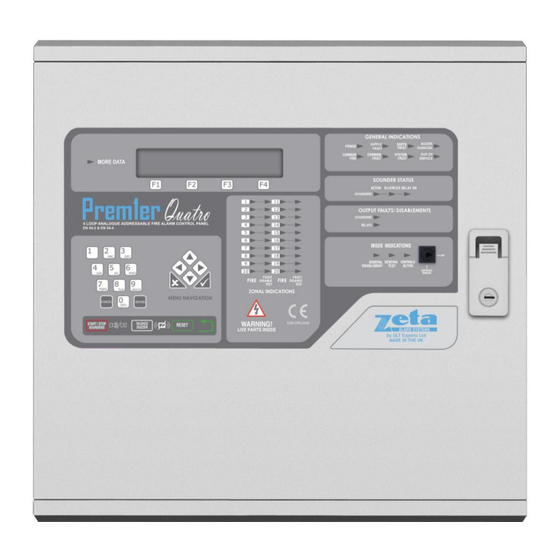

- Page 1 PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Software Versions: PANEL 1.52 & LOOP CARD 2.0 ONE TO FOUR LOOPS ANALOGUE ADDRESSABLE FIRE ALARM PANEL USER MANUAL, MAINTENANCE GUIDE & LOG BOOK #Doc No. GLT.MAN-135 Issue: 1.05 Author: GW/NJ Date: 24/07/2012...
-
Page 2: Table Of Contents
PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK TABLE OF CONTENTS WHAT TO DO IF THE FIRE ALARM PANEL SHOWS A FAULT (YELLOW LED) ....................2 1. FIRE ALARM CONTROL PANEL SAFETY ISSUES ............................. 3 2. THE PURPOSE OF A FIRE ALARM SYSTEM ............................3 3. -
Page 3: What To Do If The Fire Alarm Panel Shows A Fault (Yellow Led)
PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK WHAT TO DO IF THE FIRE ALARM PANEL SHOWS AN ALARM (RED LED) Write down the LCD reading and which LEDs are lit (either in the log book, or on a piece of paper for transferring to the log book later). -
Page 4: Fire Alarm Control Panel Safety Issues
PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK 1. FIRE ALARM CONTROL PANEL SAFETY ISSUES When the Premier M Plus panel is operating normally, i.e. not being tended by service personnel, the access door must be closed and locked. After locking, the key MUST be removed and ONLY held by the responsible person and / or the service personnel. It must under NO CIRCUMSTANCES be held by the user. -
Page 5: User Responsibilities & Maintainence Of The Fire Alarm System, Including The Facp & Its Integral Pse
PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK 3. USER RESPONSIBILITIES & MAINTAINENCE OF THE FIRE ALARM SYSTEM, INCLUDING THE FACP & ITS INTEGRAL PSE According to the British Standard Code for Fire Detection and Alarm Systems for Commercial Buildings (BS 5839-1:2002+A2:2008), the owner or person having control of the premises should appoint a responsible person to oversee the effective operation of the Fire Alarm System (Clause 47.1). -
Page 6: Annual Test (To Be Carried Out By Authorised Service Personnel Only)
PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Annual Test (to be carried out by authorised service personnel only) Check every detector, call point, sounder and all auxiliary equipment for correct operation. Check Switch Mode cage INPUT Voltage (30.5 VAC), Charger Voltage (27.6V off load, adjusted with VR1) & Battery Voltage (25-27V) Every Five Years (to be carried out by authorised service personnel only) ... -

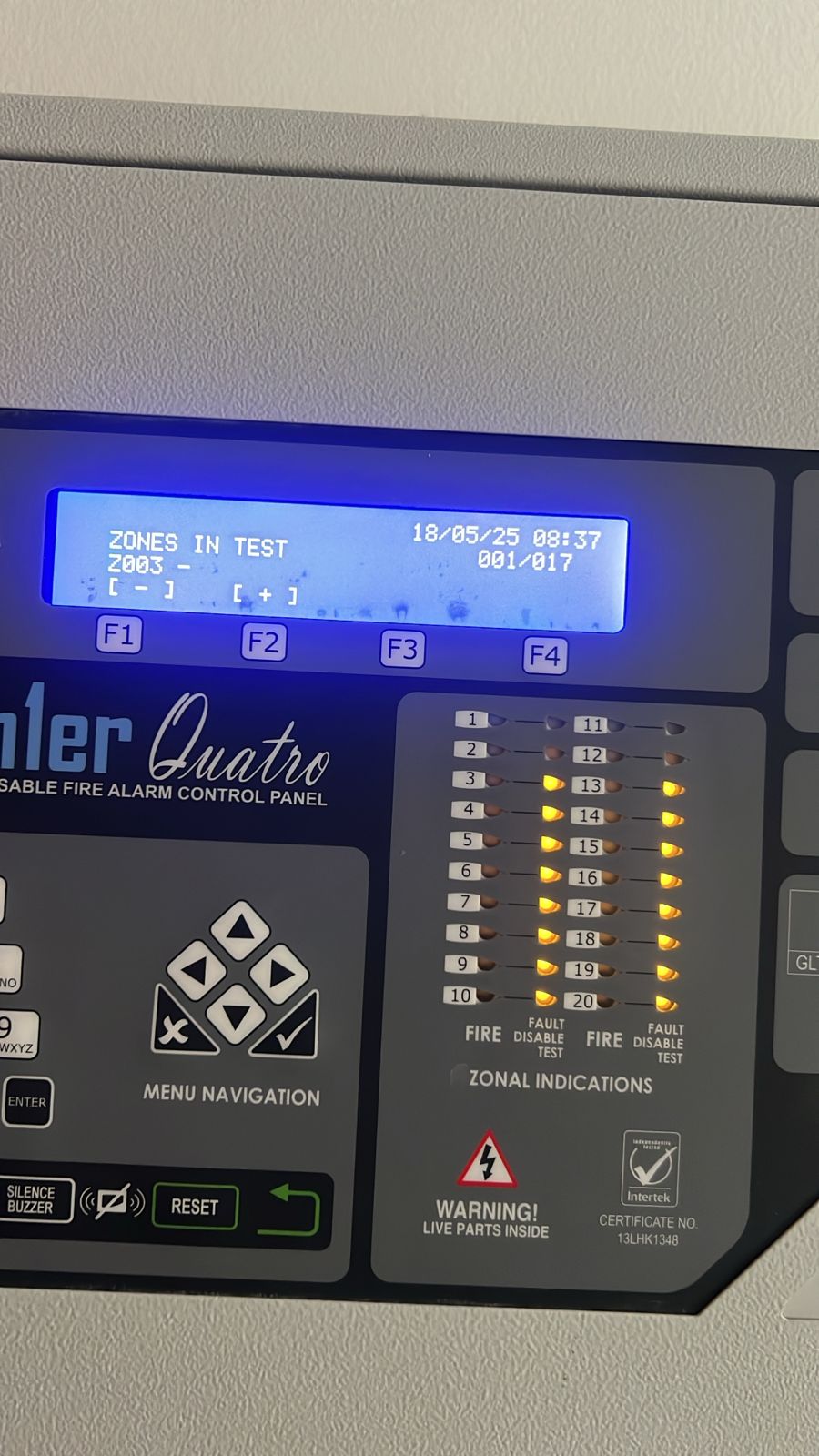

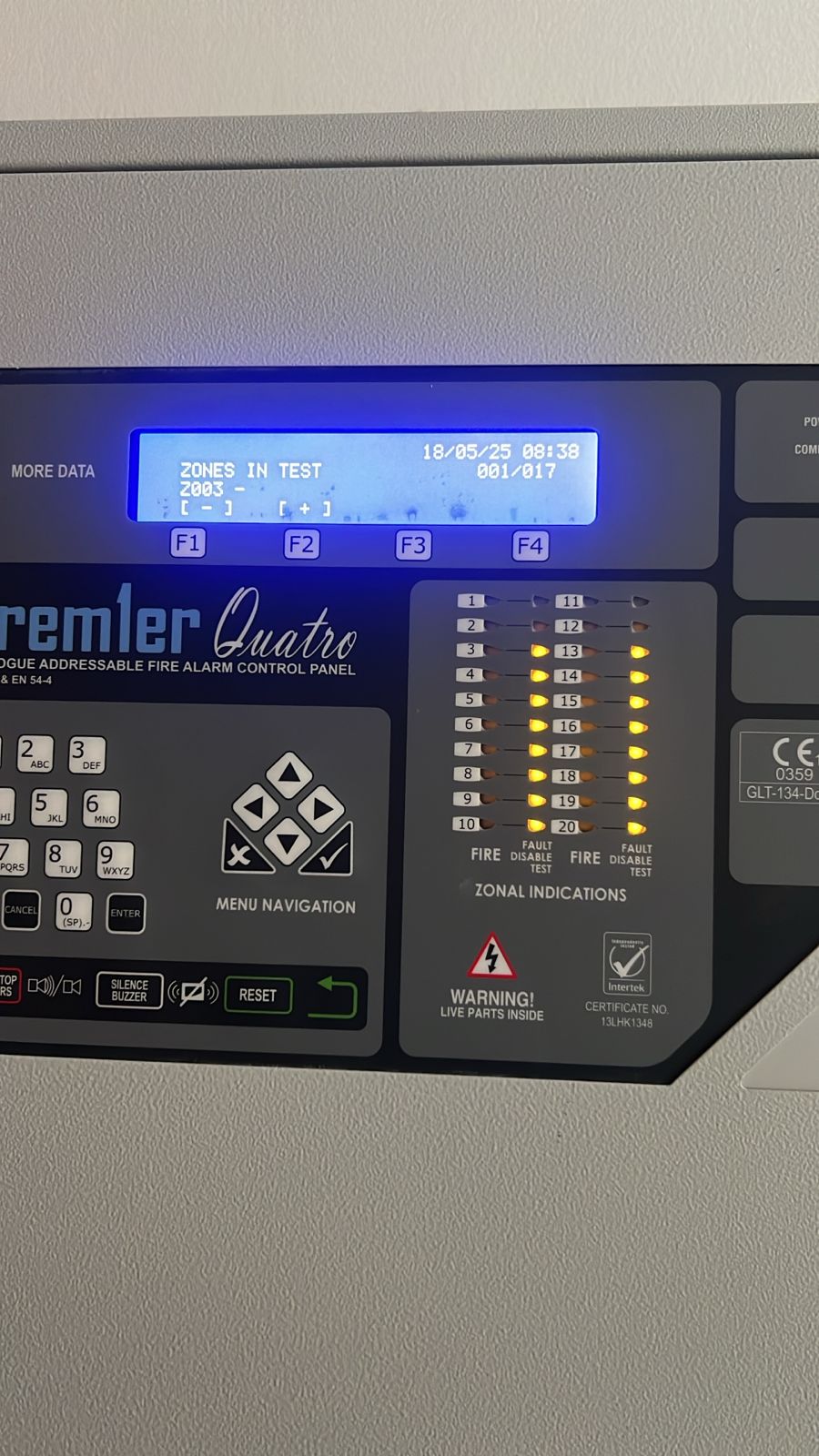

Page 7: Panel Indications & Controls
PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK 4. PANEL INDICATIONS & CONTROLS 4.1 PANEL INDICATIONS The LEDs used for zonal fire indication are reserved solely for this purpose. The other LEDs in this zonal range are shared between fault, disable and test. - Page 8 PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Ending a programmed delay when the panel is in alarm. For example, if the installation engineer has instructed the panel to wait for 2 minutes after a fire has been detected before sounding the alarm, a user can override this delay if it is obvious that the building needs to be evacuated immediately.
-
Page 9: The Fire Condition
PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK 5. THE FIRE CONDITION 5.1 HOW THE QUATRO INDICATES AN ALARM When the Panel is set into alarm by a Detector or Manual Call Point located in a zone that is not already in alarm it will: - ... -
Page 10: Turning On The Alarm Sounders From The Facp (To Evacuate The Building)
PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK 5.4 TURNING ON THE ALARM SOUNDERS FROM THE FACP (TO EVACUATE THE BUILDING) If a user comes across a fire in the protected building, the alarm can also be raised by operating the START / STOP SOUNDERS button on the front of the Fire Alarm Control Panel. -
Page 11: The Fault Condition
PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK 6. THE FAULT CONDITION The fire alarm panel monitors itself, and any equipment connected to it, for any faults that can occur. If a fault occurs, the panel responds by activating its Internal buzzer and lighting the General Fault light and any other Fault light(s) relevant to the particular fault. -
Page 12: What To Do If A Fault Condition Occurs
PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK The System Fault LED lights when the Panel’s micro-processor has Reset, typically after excessive electrical interference, or if the contents of its memory have been corrupted. EARTH FAULT The Earth Fault LED lights when the panel detects an earth fault (short circuit to earth) on the wiring to any part of the control panel. -
Page 13: Disablements
PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK 7. DISABLEMENTS 7.1 REASONS FOR DISABLING CERTAIN PARTS OF A FIRE ALARM SYSTEM Certain parts of this Fire Alarm Panel can be temporarily disabled (i.e. switched off) to suit prevailing conditions. For example, if there is a risk of a False Alarm in a zone, for example, from vehicle exhaust smoke in a loading bay, it is possible for the user to disable that zone during the risk period and then enable it again afterwards. -
Page 14: System Description
PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK 8. SYSTEM DESCRIPTION FIRE ALARM SYSTEM SUMMARY FIRE ZONE INFORMATION ZONE DESCRIPTION NO. OF NO. OF ZONE NO. LOOP NO. NO. OF MCPS NO. OF I/OS A brief description of all the rooms and areas DETECTORS SOUNDERS contained in each zone. - Page 15 PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK FIRE & FAULT RELAYS INFORMATION TYPE OF OUTPUT CONNECTED WHAT HAPPENS WHEN ACTIVATED? FIRE RELAY YES/NO FAULT RELAY YES/NO ADDITIONAL INFORMATION Any additional information the User needs to know about should be inserted into this box including details of the routing of any additional outputs, details of inputs utilised, etc.
-
Page 16: Detailed Loop Contents: Loop 1
PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK DETAILED LOOP CONTENTS: LOOP 1 This must be fully recorded by an authorised Engineer before system handover. (A Loop Report from the Quatro Connect Configuration software will also be acceptable) ADDR ZONE TYPE LABEL... -
Page 17: Detailed Loop Contents: Loop 2
PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK DETAILED LOOP CONTENTS: LOOP 2 This must be fully recorded by an authorised Engineer before system handover. (A Loop Report from the Quatro Connect Configuration software will also be acceptable) ADDR ZONE TYPE LABEL... -
Page 18: Detailed Loop Contents: Loop 3
PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK DETAILED LOOP CONTENTS: LOOP 3 This must be fully recorded by an authorised Engineer before system handover. A Loop Report from the Quatro Connect Configuration software will also be acceptable) ADDR ZONE TYPE LABEL... -
Page 19: Detailed Loop Contents: Loop 4
PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK DETAILED LOOP CONTENTS: LOOP 4 This must be fully recorded by an authorised Engineer before system handover. A Loop Report from the Quatro Connect Configuration software will also be acceptable) ADDR ZONE TYPE LABEL... -
Page 20: Fire Alarm Log Book
PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK 9. FIRE ALARM LOG BOOK It is recommended that this LOG BOOK section of the Manual be maintained by the responsible person(s) on site, who should ensure every event is properly recorded (including fire alarm conditions, failures, tests, temporary disconnections, disablements, enablements, dates of installing engineers’... -
Page 21: Maintenance Work
PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK MAINTENANCE WORK LOOP & ZONE/ ADDITIONAL WORK DATE TIME REASON FOR WORK WORK CARRIED OUT SIGNED ADDRESS LOCATION REQUIRED PAGE 20 #Doc No. GLT.MAN-135 Issue: 1.05 Author: GW/NJ Date: 24/07/2012... -
Page 22: Maintenance Work (Continued)
PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK MAINTENANCE WORK (CONTINUED) LOOP & ZONE/ ADDITIONAL WORK DATE TIME REASON FOR WORK WORK CARRIED OUT SIGNED ADDRESS LOCATION REQUIRED PAGE 21 #Doc No. GLT.MAN-135 Issue: 1.05 Author: GW/NJ Date: 24/07/2012... - Page 23 PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK UNWANTED (FALSE) ALARMS CAUSE (IF MAINTENANCE FURTHER LOOP & ZONE/ KNOWN) OR MAINTENAN CATEGORY OF DATE TIME VISIT NEEDED ACTION SIGNED ADDRESS LOCATION ACTIVITIES IN CE FINDINGS FALSE ALARM (YES/NO) REQUIRED ALARM AREA PAGE 22 #Doc No.
-
Page 24: Unwanted (False) Alarms (Continued)
PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK UNWANTED (FALSE) ALARMS (CONTINUED) CAUSE (IF MAINTENANCE FURTHER LOOP & ZONE/ KNOWN) OR MAINTENAN CATEGORY OF DATE TIME VISIT NEEDED ACTION SIGNED ADDRESS LOCATION ACTIVITIES IN CE FINDINGS FALSE ALARM (YES/NO) REQUIRED ALARM AREA PAGE 23... -
Page 25: All Events Other Than Maintenance Work Or False Alarms
PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK ALL EVENTS OTHER THAN MAINTENANCE WORK OR FALSE ALARMS DETAILS OF EVENT LOOP & ZONE/ DATE DATE TIME (INCLUDING CAUSE IF ACTION REQUIRED INITIALS ADDRESS LOCATION COMPLETED KNOWN) PAGE 24 #Doc No. GLT.MAN-135 Issue: 1.05 Author: GW/NJ Date: 24/07/2012... -
Page 26: All Events Other Than Maintenance Work Or False Alarms (Continued)
PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK ALL EVENTS OTHER THAN MAINTENANCE WORK OR FALSE ALARMS (CONTINUED) DETAILS OF EVENT LOOP & ZONE/ DATE DATE TIME (INCLUDING CAUSE IF ACTION REQUIRED INITIALS ADDRESS LOCATION COMPLETED KNOWN) PAGE 25 #Doc No. -
Page 27: Commissioning The System, Including Power Supply Equipment P.s.e
PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK 10. COMMISSIONING THE SYSTEM, INCLUDING POWER SUPPLY EQUIPMENT P.S.E. The commissioning of this fire alarm system should be performed by a qualified commissioning engineer, who has an understanding of sections 2, 3, & 4 of BS5839 pt 1:2002 (i.e. Design considerations, Limitations of false alarms, Installation recommendations). -
Page 28: Design Certificate
PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Design Certificate (Page 1 of 2) Certificate of DESIGN for the Premier Quatro Fire Alarm System installed at: ADDRESS: I/we being the competent person(s) responsible (as indicated by my/our signatures below) for the design of the fire alarm system, particulars of which are set out below, CERTIFY that the said design for which I/we have been responsible complies to the best of my/our knowledge and belief with the recommendations of section 2 of BS 5839-1:2002 for the system category described below, except for the variations, if any,... - Page 29 PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Design Certificate (Page 2 of 2) Measures incorporated to limit false alarms. Account has to be taken of the guidance contained in section 3 of BS 5839-1: 2002 and, more specifically (tick as appropriate): The System is manual.
-
Page 30: Installation Certificate
PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Installation Certificate Certificate of INSTALLATION for the Premier Quatro Fire Alarm System installed at: ADDRESS: I/we being the competent person(s) responsible (as indicated by my/our signatures below) for the installation of the fire alarm system, particulars of which are set out below, CERTIFY that the said installation for which I/we have been responsible complies to the best of my/our knowledge and belief with the specifications described below, and with the recommendations of BS5839-1:2002, except for the variations, if any, stated in this certificate... -
Page 31: Commissioning Certificate
PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Commissioning Certificate Certificate of COMMISSIONING for the Premier Quatro Fire Alarm System installed at: ADDRESS: I/we being the competent person(s) responsible (as indicated by my/our signatures below) for the commissioning of the fire alarm system, particulars of which are set out below, CERTIFY that the said work for which I/we have been responsible complies to the best of my/our knowledge and belief with the recommendations of Clause 39 of BS5839-1:2002, except for the variations, if any, stated in this certificate Name (... -
Page 32: Acceptance Certificate
PREMIER QUATRO USER MANUAL, MAINTENANCE GUIDE & LOG BOOK Acceptance Certificate Certificate of ACCEPTANCE for the Premier Quatro Fire Alarm System installed at: ADDRESS: I/we being the competent person(s) responsible (as indicated by my/our signatures below) for the acceptance of the fire alarm system, particulars of which are set out below, ACCEPT the system on behalf Name ( Position: Block Letters...
