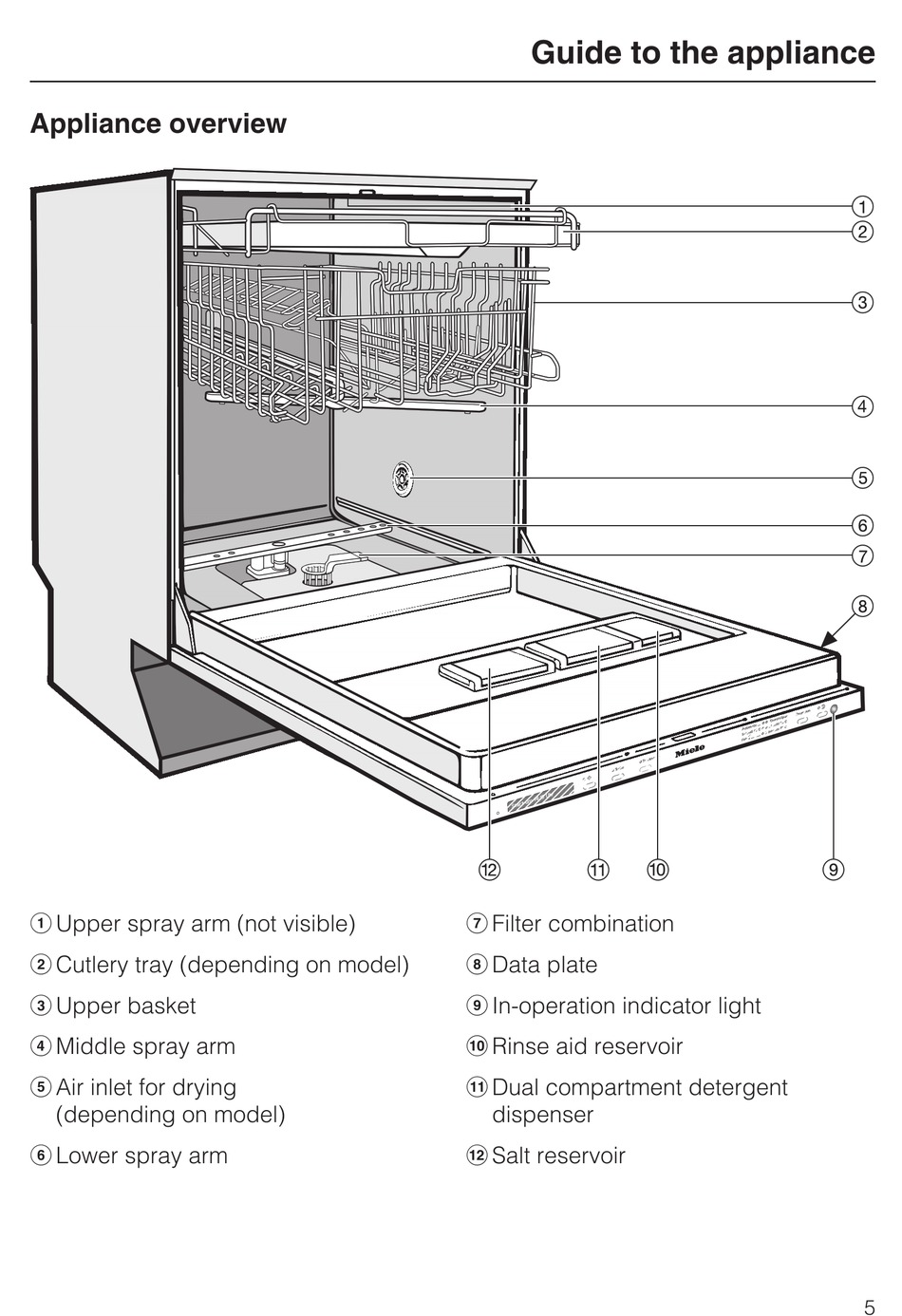

Appliance overview

Upper spray arm (not visible)
Cutlery tray (depending on model)
Upper basket
Middle spray arm
Air inlet for drying
(depending on model)
Lower spray arm

Guide to the appliance

Filter combination
Data plate
In-operation indicator light
Rinse aid reservoir
Dual compartment detergent
dispenser
Salt reservoir
5
