Schematic Diagrams

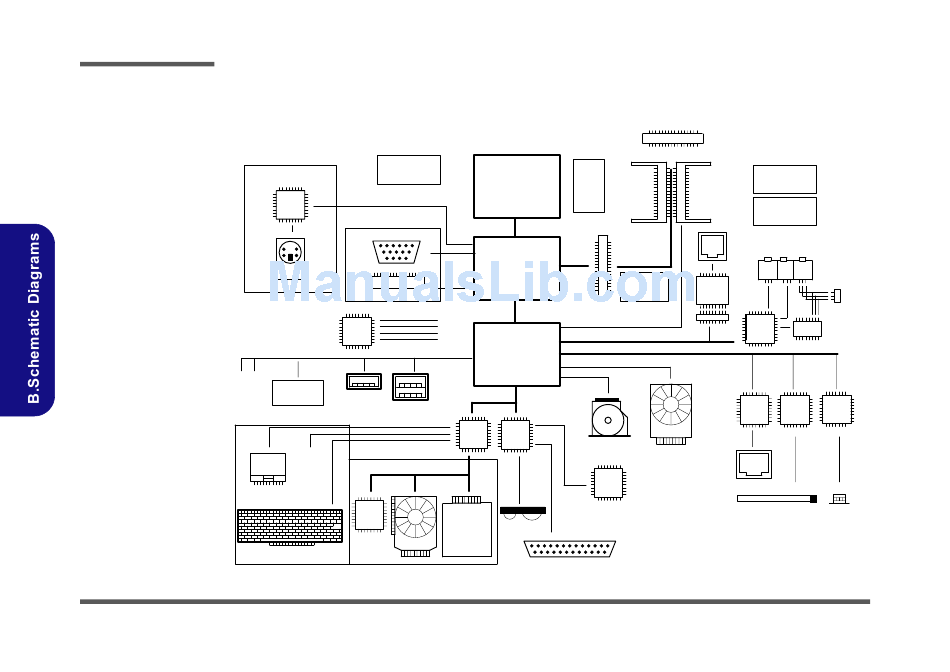

System Block Diagram

Sheet 1 of 29
System Block
Diagram
BT
CCD
TOUCH PAD
CONN
B - 2
DC/DC BD
CH7011
CRT OUT
TV OUT
LVDS
LCD CONN(LVDS)
CLOCK
GEN.
USB2.0
Wireless Lan
USB
(Option)
USB*2
SM BUS
TEMP
SENSOR
CPU
FAN
BATTERY
KBC CONN
Banias
CPU
CORE
Processor
POEWR
(VCORE)
479 uFCPGA
SO-DIMM0
PG3,4
Montara-GM
GMCH 732
uFCBGA
DDR VR
HUB LINK
SM BUS
INTEL ICH4
AC'97 LINK
421 BGA
PCI BUS
33MHz
Pri. IDE
ATA-100
Sec. IDE
(50 Pin)
LPC BUS
ISA
KB CTRL.
W83517
H8
CD-ROM/DVD/CD-RW
SYSTEM
BIOS
IR
PIO
MEMORY
TERMINATIONS
DDR SDRAM SOCKET
ACIN;POWER
BUTTON
SO-DIMM1
Charger
RJ-11
SPDIF
MIC
SPK
OUT
IN
OUT
MDC
MODULE
MDC CONN.
AC'97
CODEC
AUDIO
(ALC201)
(TI-TPA0132)
AMP.
(PCI-1)
(PCI-2)
(PCI-3)
CARD
TI-43AB21
H.D.D.
LAN
BUS
RTL8100B
TI-1410
RJ-45
PCMCIA SOCKET*1
BERG
4-Pin
