Mainboard Overview - Top (Key Parts)

5
6
4
3
2
1
7
8
Mainboard Overview - Top (Key Parts) 1 - 9
Introduction
Figure 8

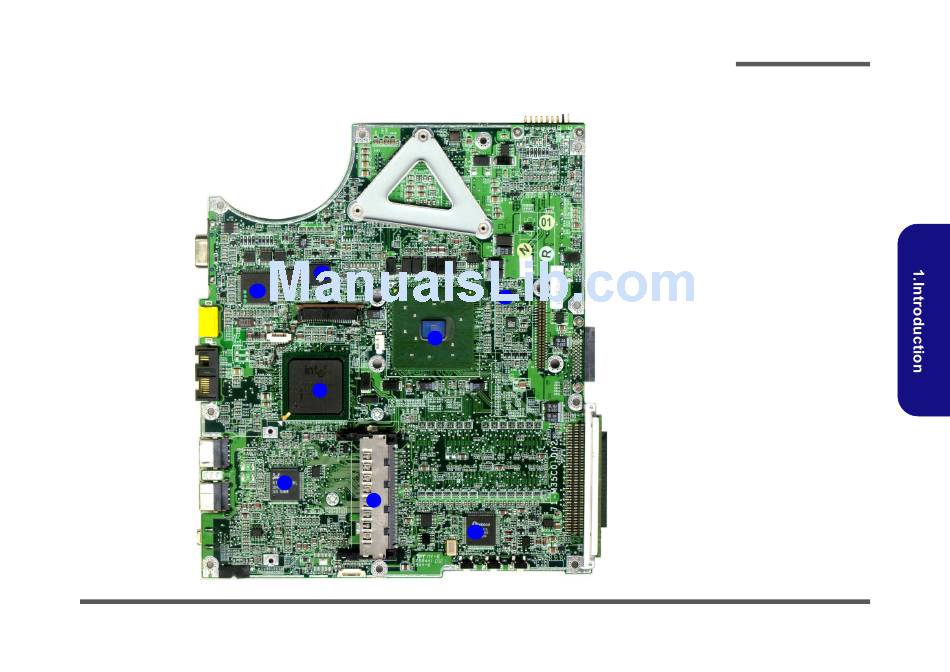

Mainboard Top
Key Parts
1. PC Card
Assembly
2. LAN Controller
RTL8100BL
3. Southbridge -
Intel 82801DB
4. Northbridge -
Intel 82852GM
5. H8 Keyboard
Controller
6. TV-Out Controller
7. V-Core Power IC
8. Super I/O
Winbond 83517
