Phase Lock Loop (PLL) Power and Filter

V and V
CCA
silicon. Since these PLLs are analog, they require low noise power supplies for minimum jitter.
Jitter is detrimental to the system: it degrades external I/O timings as well as internal core timings
(i.e., maximum frequency). To prevent this degradation, these supplies must be low pass filtered
from V
CC
The AC low-pass requirements, with input at V
•
< 0.2 dB gain in pass band
•
< 0.5 dB attenuation in pass band < 1 Hz
•
> 34 dB attenuation from 1 MHz to 66 MHz
•
> 28 dB attenuation from 66 MHz to core frequency
The filter requirements are illustrated in
refer to the appropriate platform design guide.
.

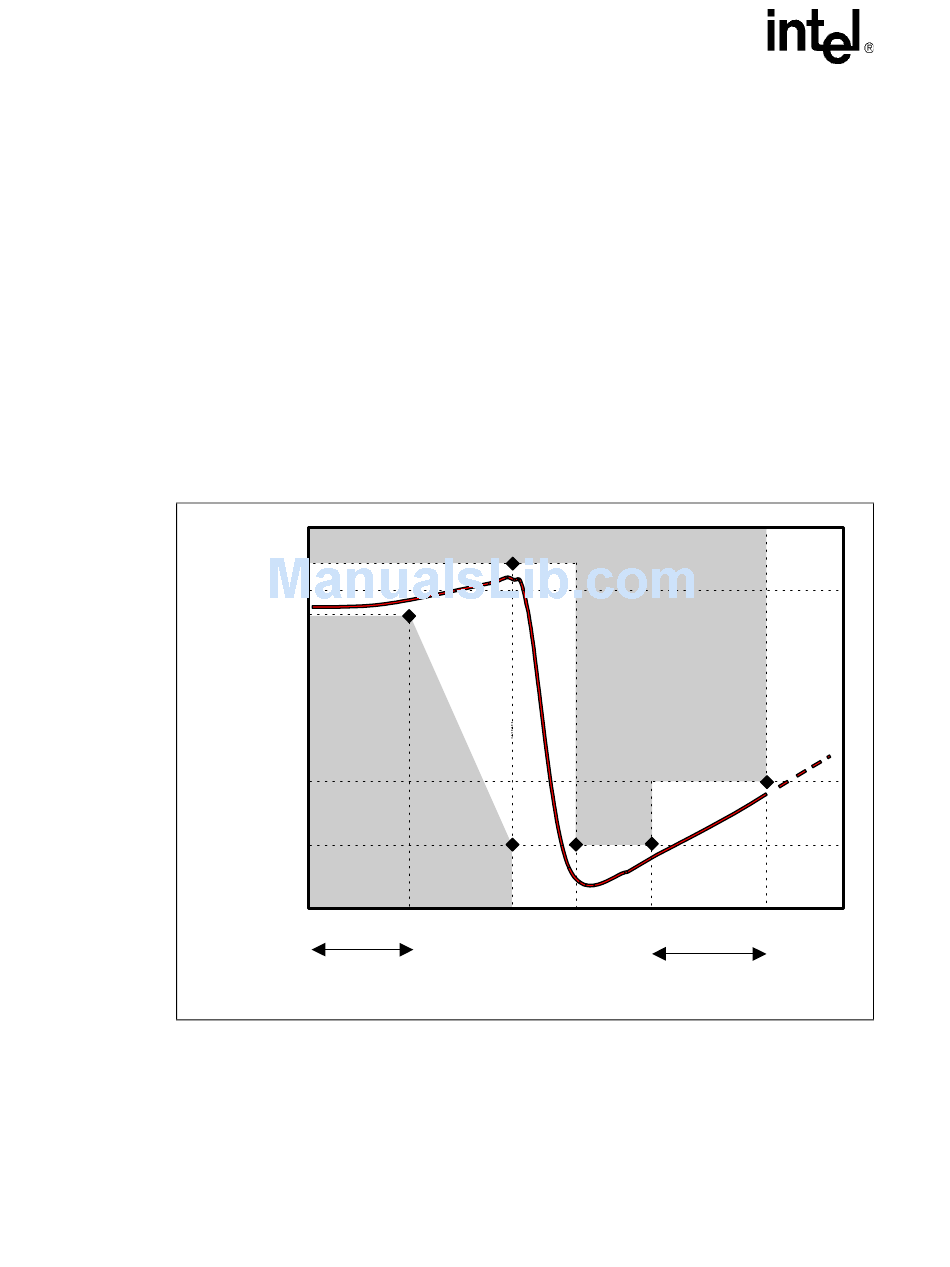

Figure 1. Phase Lock Loop (PLL) Filter Requirements
0.2 dB
–0.5 dB
–28 dB
–34 dB
NOTES:
1. Diagram not to scale.
2. No specification exists for frequencies beyond fcore (core frequency).
3. fpeak, if existent, should be less than 0.05 MHz.
