Adjustments for Better Print Quality

Adjustments for Better Print Quality

Adjusting the Printhead

Adjusting the Printhead
Automatic Adjustment to Straighten Lines and Colors
Automatic Adjustment to Straighten Lines and Colors

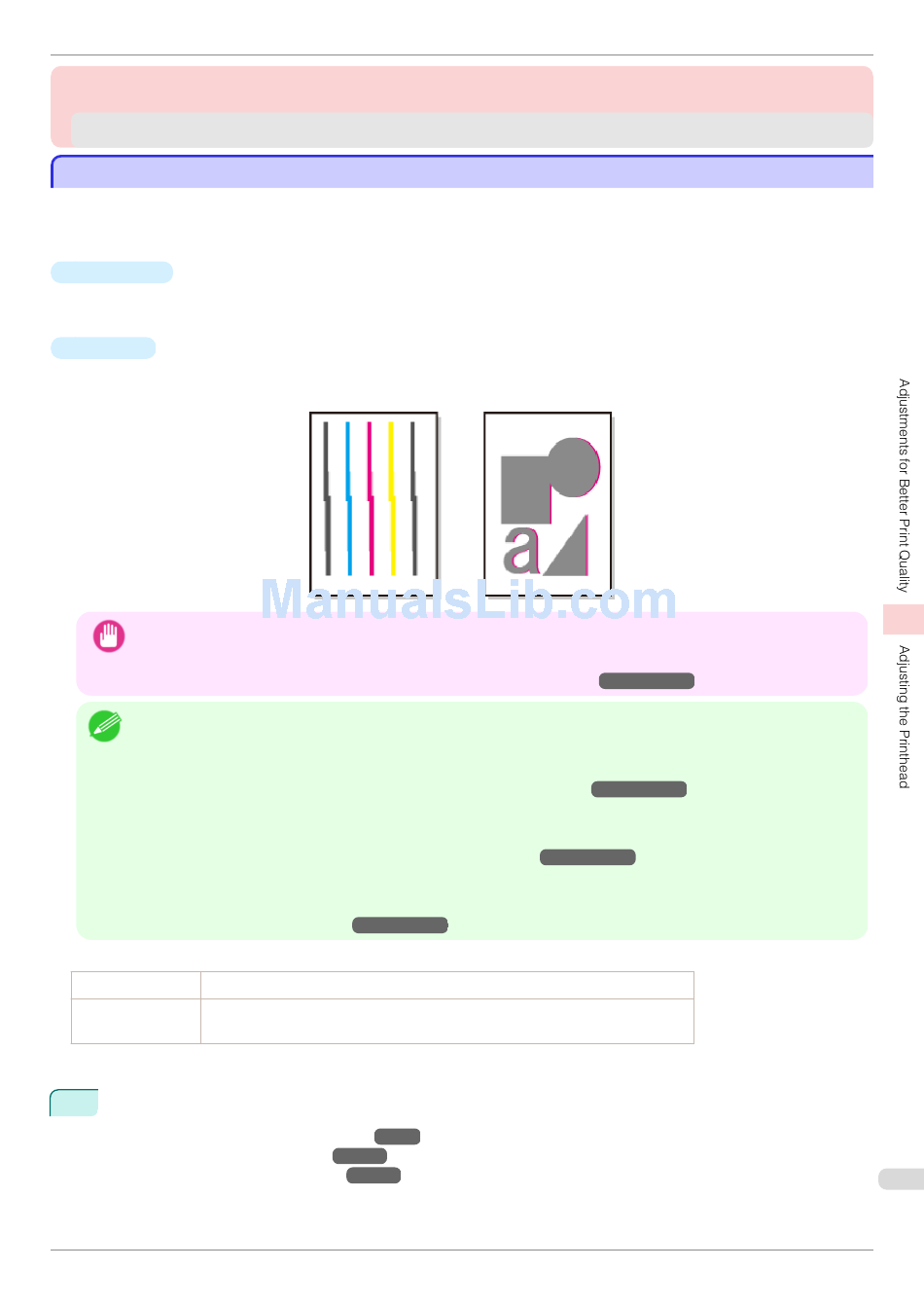

If vertical lines in printed documents are warped or colors are out of alignment, execute Head Posi. Adj.. The print-
er will print and read a test pattern, and the Printhead position will be adjusted automatically.
There are two modes for automatic Printhead adjustment: Standard and Simple.
• Standard
Execute if vertical lines in printed material are warped or colors are out of alignment.
Furthermore, if Simple does not improve printing, try Standard.
• Simple
Executes simple adjustment in a short time.
Execute this when frequently adjusting the printhead, such as during daily inspection.
•
This function is not available with CAD Tracing Paper, CAD Translucent Matte Film, or CAD Clear Film.
•
If adjustment is not possible as expected using special media, try another type of paper, or try Manual adjustment.
Important
(See "Manual Adjustment to Straighten Lines and Colors (Head Posi. Adj.).")
•
Because the results of adjustment vary depending on the type of paper used for adjustment, use the same type of paper
as you will use for printing.
Note
•
If Standard does not improve printing, try adjusting the printhead manually.
(See "Manual Adjustment to Straighten Lines and Colors (Head Posi. Adj.).")
•
If the printhead position was not adjusted during initial setup or when the printhead was replaced, execute Initial ad-
justmt.
(See "Adjustment When Installing the Printhead (Head Posi. Adj.).")
•
Advanced adjustment can enable superior printing quality when printing fine lines or text at high precision on glossy or
semi-glossy photo or proofing paper.
(See "Enhancing Printing Quality.")
Items to Prepare
When Using Rolls An unused roll at least 254.0 mm (10.00 in) wide
When Using Sheets Standard : Six sheets of unused paper, A4/Letter size (or one sheet when using A2)
Simple : One sheet of unused paper, A4/Letter size
Perform adjustment as follows.
1
Load paper.
• Attaching the Roll Holder to Rolls
• Loading Rolls in the Printer
• Loading Sheets in the Printer
Basic Guide
→User's Guide
→P.9
→P.11
→P.18
Automatic Adjustment to Straighten Lines and Colors
→User's Guide
→User's Guide
→User's Guide
