Ink Tank Cover (Inside)
f Cutter Unit
A round-bladed cutter for automatic paper cutting. Retracted when not in use.
g Shaft Cleaner
Prevents the Carriage Shaft from becoming dirty.
h Cutter Unit Detachment Lever
Used when replacing the Cutter Unit.

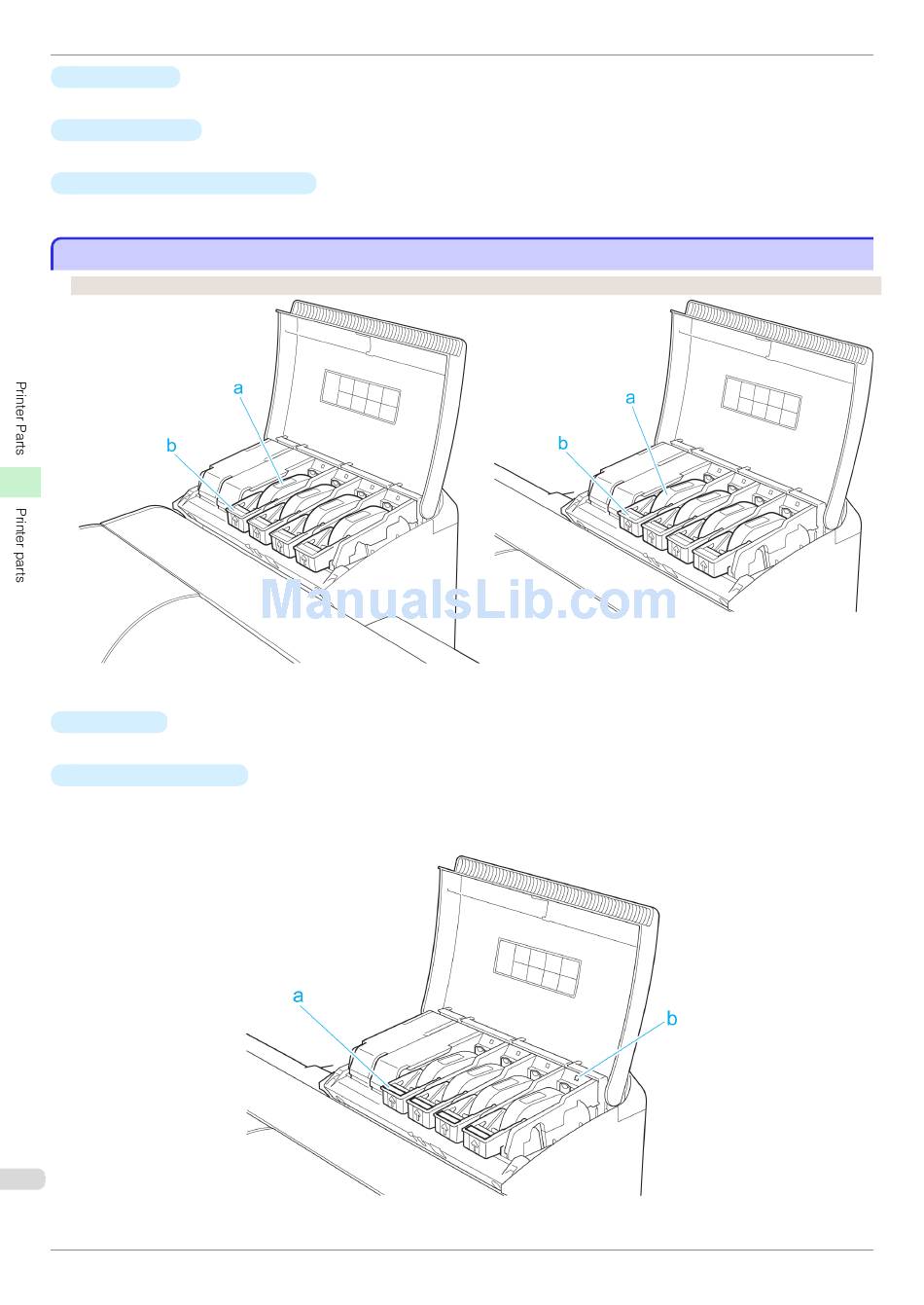

Ink Tank Cover (Inside)
Ink Tank Cover (Inside)
Left Side
*1: Note: The figure shows the printer as loaded with 700 ml (23.7 fl oz) Ink Tank.
a Ink tanks
Cartridges of ink in various colors.
b Ink Tank Lock Lever
A lever that locks the Ink Tank in place and protects it. Lift and lower the lever when replacing an Ink Tank. To
open it, lift the stopper of the lever until it stops, and then push it down toward the front. To close it, push it
down until it clicks into place.
72
Right Side
iPF9400S
Basic Guide
