3 . 9 . 8 L A N t o
3 . 9 . 8 L A N t o
Here you can manage LAN to LAN connections by maintaining a table of connection
profiles. You may set parameters including specified connection direction (dial-in or
dial-out), connection peer ID, connection type (ISDN connection, VPN connection -
including PPTP, IPSec Tunnel, and L2TP by itself or over IPSec) and corresponding security
methods, etc.
The router provides up to 32 profiles, which also means supporting 32 VPN tunnels

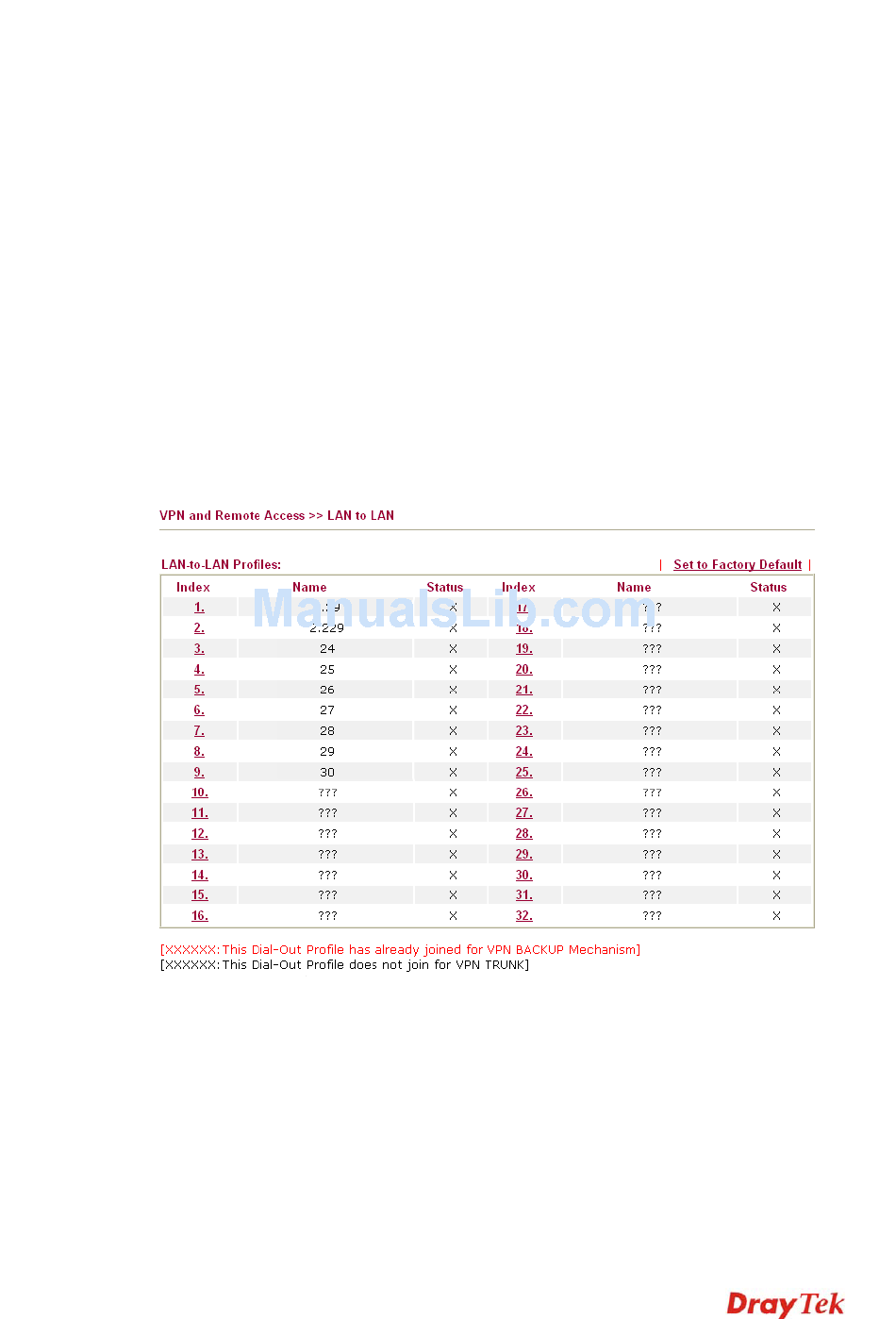

simultaneously. The following figure shows the summary table.
Set to Factory Default
Name
Status
LAN to LAN profiles are suitable for dial-out usage. If the profile name displayed in red, it
means that the profile has been grouped into VPN TRUNK. If the profile name displayed in
black, it means that profile is not grouped into VPN TRUNK and can be invoked
individually.
Vigor2910 Series User's Guide
L A N
L A N
Specify the callback number-The option is for extra security.
Once enabled, the router will ONLY call back to the specified
Callback Number.
Check to enable callback budget control-By default, the
callback function has a time restriction. Once the callback
budget has been exhausted, the callback mechanism will be
disabled automatically.
Callback Budget (Unit: minutes)- Specify the time budget
for the dial-in user. The budget will be decreased
automatically per callback connection.
Click to clear all indexes.
Indicate the name of the LAN to LAN profile. The
symbol ??? represents that the profile is empty.
Indicate the status of individual profiles. The symbol
V and X represent the profile to be active and
inactive, respectively.
