Wireless Vlan - Draytek Vigor2910 Series User Manual

P1 – P4
VLAN0-3
Note: If WAN2 interface has been enabled, the P1 boxes will serve as WAN
interface and cannot be checked as shown in the following diagram.
3 . 1 4 . 2 W i r e l e s s V
3 . 1 4 . 2 W i r e l e s s V
PCs (equipped with wireless network cards) connected to the router through wireless
interface can be divided into different groups and formed W_VLAN. PCs under the same
groups can share each other information through the router and will not be peeked by other
groups.
PCs under the same groups can use same Login ID and password to access into Internet. For

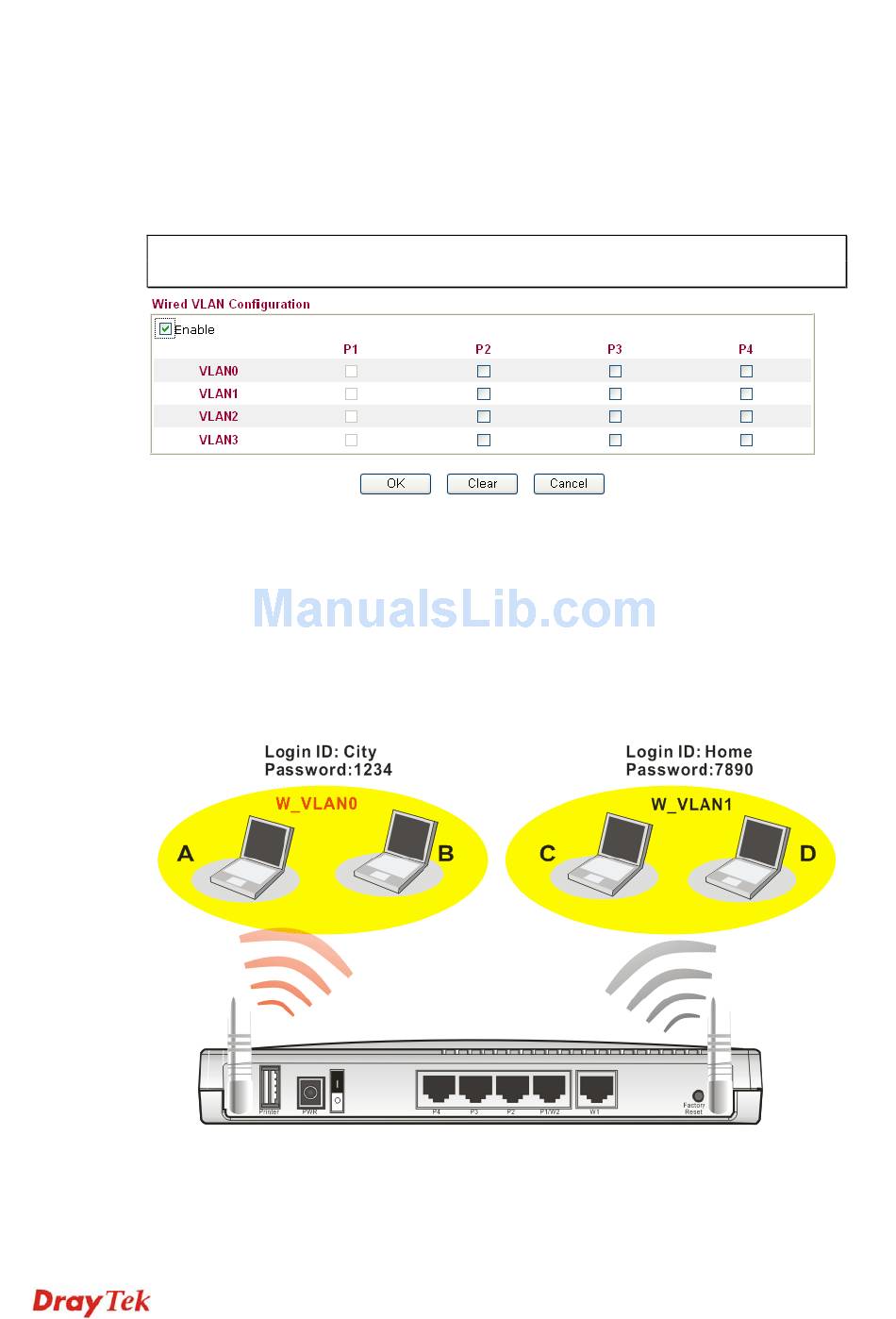

example, see the following graphic. Both A and B use the same login ID (City) and
password (1234). Therefore, they are grouped in the same W_VLAN.
The VLAN >> Wireless VALN allows you to configure Wireless VLAN settings through
wireless connection to achieve the above intention. Simply type Login ID and password with
City and 1234 in the boxes of W_VLAN0. And type Login ID and password with Home and
Check the box to make the computer connecting to the port
being grouped in specified VLAN. Be aware that each port
can be grouped in different VLAN at the same time only if
you check the box. For example, if you check the boxes of
VLAN0-P1 and VLAN1-P1, you can make P1 to be grouped
under VLAN0 and VLAN1 simultaneously.
This router allows you to set 4 groups of virtual LAN.
L A N
L A N
