WAN IP Network
Settings
D e t a i l s
D e t a i l s

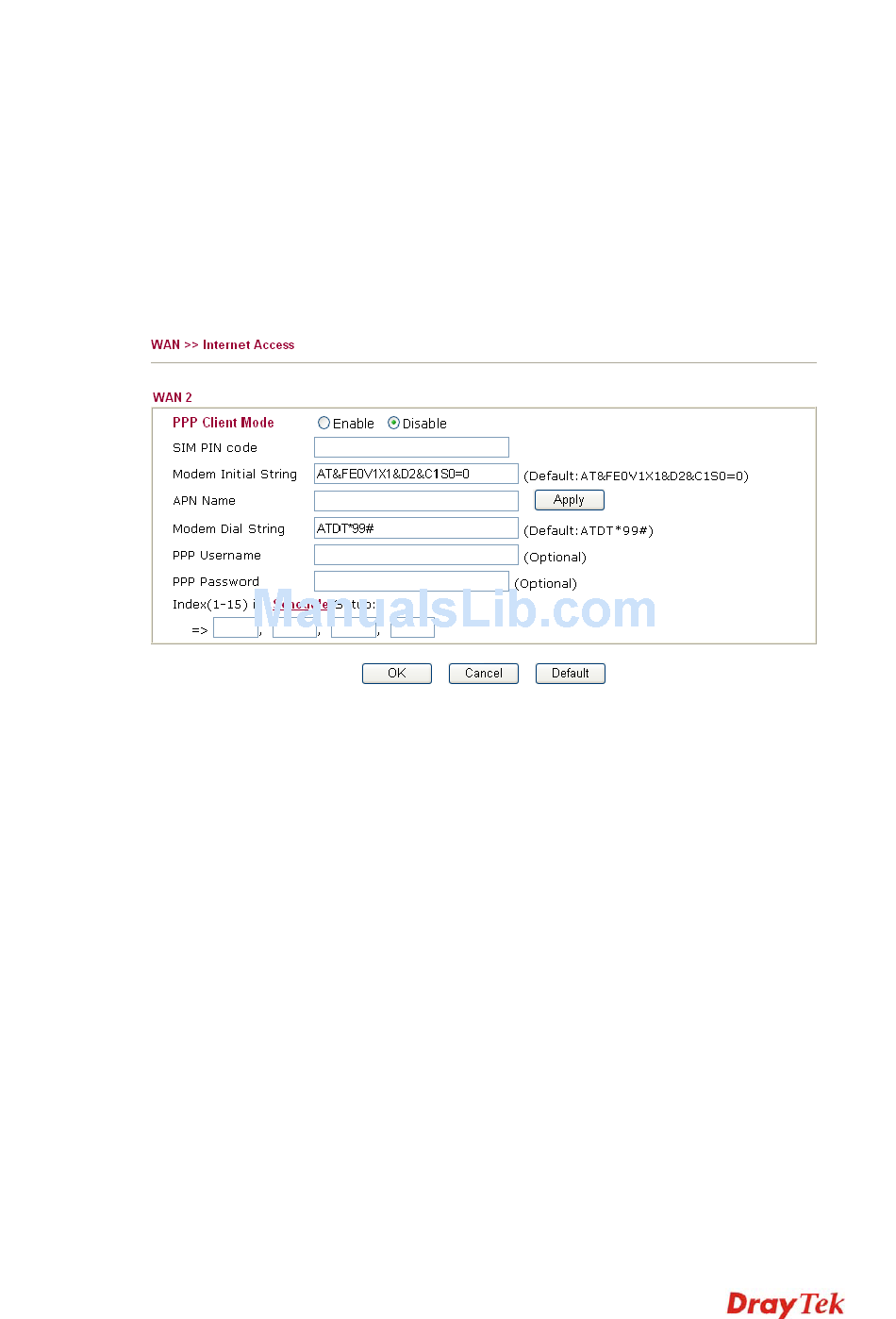

To use PPP (for 3G USB Modem) as the accessing protocol of the internet, please choose
Internet Access from WAN menu. Then, select PPP mode for WAN2. The following web
page will be shown.
PPP Client Mode
SIM PIN code
Modem Initial String
APN Name
Modem Dial String
PPP Username
PPP Password
Index (1-15)
Vigor2910 Series User's Guide
Obtain an IP address automatically – Click this button to obtain
the IP address automatically.
Specify an IP address – Click this radio button to specify some
data.
IP Address – Type the IP address.
Subnet Mask – Type the subnet mask.
P a g e f o r P P P
P a g e f o r P P P
Click Enable to activate this mode for WAN2.
Type PIN code of the SIM card that will be used to access Internet.
Such value is used to initialize USB modem. Please use the default
value. If you have any question, please contact to your ISP.
APN means Access Point Name which is provided and
required by some ISPs. Type the name and click Apply.
Such value is used to dial through USB mode. Please use the
default value. If you have any question, please contact to your ISP.
Type the PPP username (optional).
Type the PPP password (optional).
Set the PCs on LAN to work at certain time interval only. You may
choose up to 4 schedules out of the 15 schedules pre-defined in
Applications >> Schedule setup. The default setting of this filed is
blank and the function will always work.
