Profile Name
User Name
Password
Pre-Shared Key
Confirm Pre-Shared Key Type the pre-shared key again for confirmation.
Digital Signature (X.509) In addition to pre-shared key, you can select one
Peer IP/VPN Client IP
Peer ID
Remote Network IP
Remote Network Mask

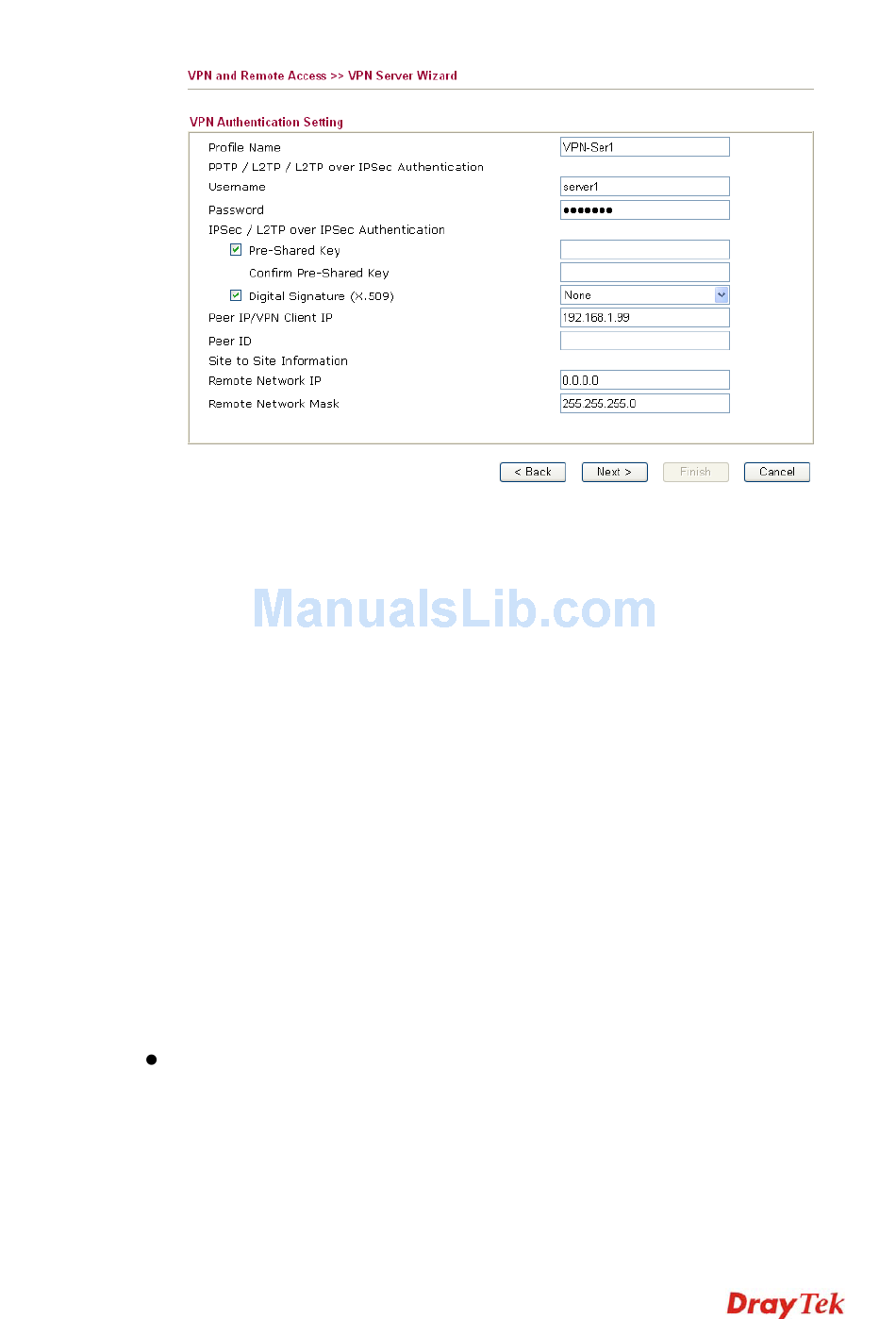

When you check PPTP/L2TP (two types) or PPTP or L2TP with Policy (None), you
will see the following graphic:
Vigor2910 Series User's Guide
Type a name for such profile. The length of the file is
limited to 10 characters.
This field is used to authenticate for connection when you
select PPTP or L2TP with or without IPSec policy above.
This field is used to authenticate for connection when you
select PPTP or L2TP with or without IPSec policy above.
For IPSec/L2TP IPSec authentication, you have to type a
pre-shared key.
predefined setting in the X.509 Peer ID Profiles (set from
VPN and Remote Access>>IPSec Peer Identity) for
IPSec/L2TP over IPSec authentication.
Type the WAN IP address or VPN client IP address for
the remote client.
Type the ID name for the remote client.
Please type one LAN IP address (according to the real
location of the remote host) for building VPN connection.
Please type the network mask (according to the real
location of the remote host) for building VPN connection.
