Syslog/Mail Alert - Draytek Vigor2910 Series User Manual

3 . 1 6 . 5 S y s l o g
3 . 1 6 . 5 S y s l o g

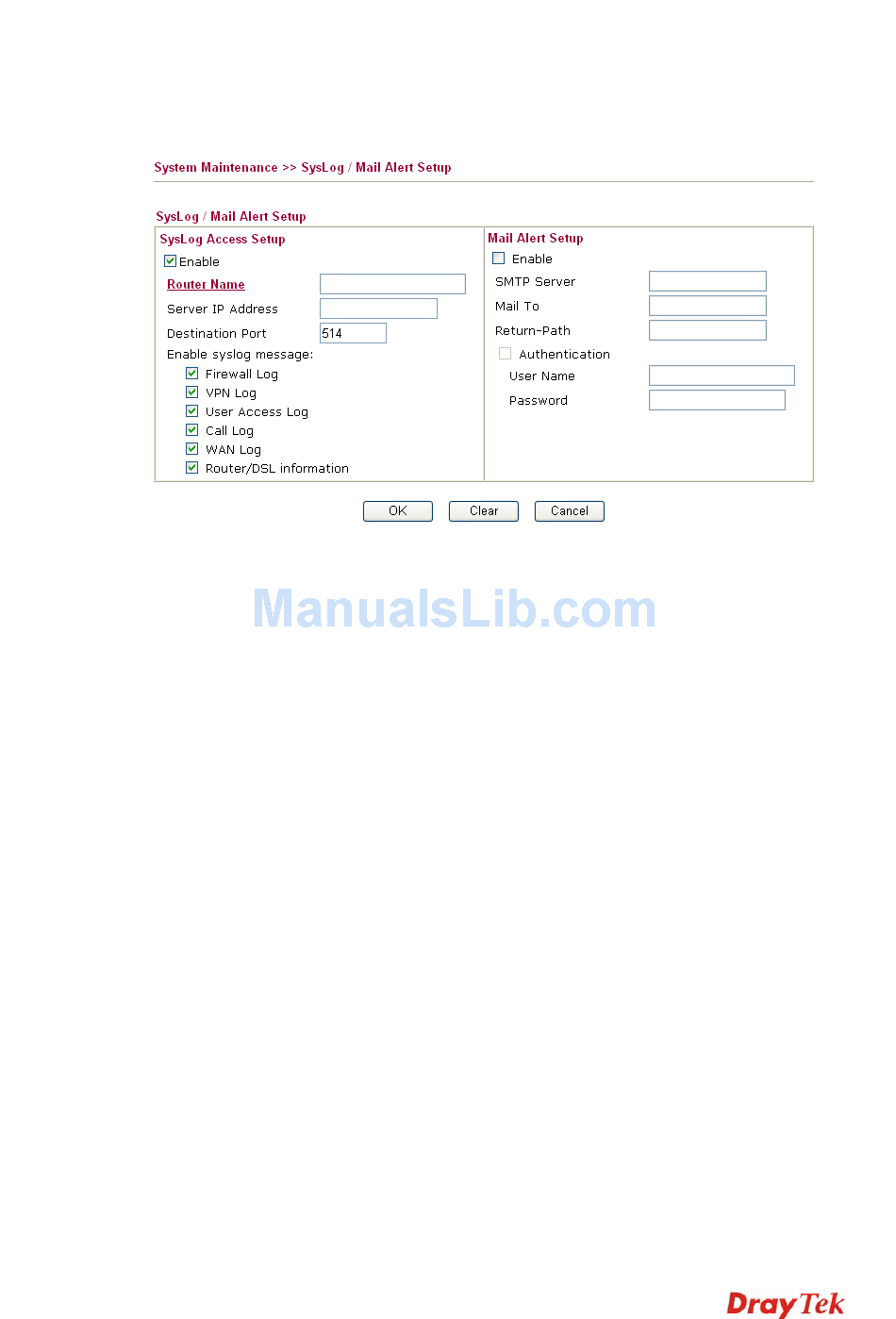

SysLog function is provided for users to monitor router. There is no bother to directly get
into the Web Configurator of the router or borrow debug equipments.
Enable
Router Name
Server IP
Destination Port
Enable syslog message
SMTP Server
Mail To
Return-Path
Authentication
User Name
Password
Click OK to save these settings.
For viewing the Syslog, please do the following:
1. Just set your monitor PC's IP address in the field of Server IP Address
2. Install the Router Tools in the Utility within provided CD. After installation, click on
the Router Tools>>Syslog from program menu.
Vigor2910 Series User's Guide
/ M a i l A l e r t
/ M a i l A l e r t
Click "Enable" to activate this function.
Assign a name for the router.
The IP address of the Syslog server.
Assign a port for the Syslog protocol.
Check the box listed on this web page to send the
corresponding message of firewall, VPN, User Access,
Call, WAN, Router/DSL information to Syslog.
The IP address of the SMTP server.
Assign a mail address for sending mails out.
Assign a path for receiving the mail from outside.
Check this box to activate this function while using
e-mail application.
Type the user name for authentication.
Type the password for authentication.
201
